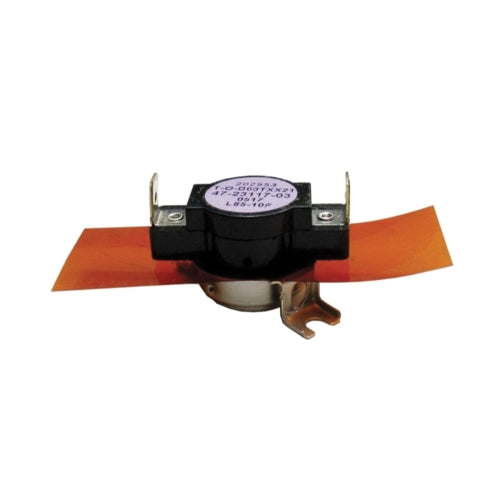

Rheem 47-23117-03 Auto Limit Switch 75-85F

Product Description

The Rheem 47-23117-03 Auto Limit Switch 75-85F is designed to control the temperature in gas-fired appliances. It automatically cuts off the electrical flow if the temperature exceeds a set threshold, preventing overheating and ensuring safe operation of the system. This limit switch is ideal for HVAC and other gas-fired systems.

• Efficient temperature control
• Automatic reset function
• Durable construction

Product Highlights

The Rheem 47-23117-03 Auto Limit Switch offers reliable temperature control with an automatic reset feature, making it easy to install and maintain. This switch is suited for various gas furnaces, water heaters, and boilers.

Product Information

Standard Information

• Item Number: 47-23117-03
• Brand: Rheem
• Type: Auto Reset
• Application: Temperature Control
• Connection: 1/4 inch Quick Connect

Technical Specifications

• Voltage Rating: 230V
• Amperage Rating: 25A
• Switch Type: SPST
• Operating Temperature: 85 Deg F Open/75 Deg F Close
• Contact Orientation: Normally Closed
• Disc Face: Enclosed
• Nominal Temperature Difference: 10 Deg F
• Open Temperature Tolerance: +/- 3 F
• Close Temperature Tolerance: +/- 3 F
• Color: Purple
