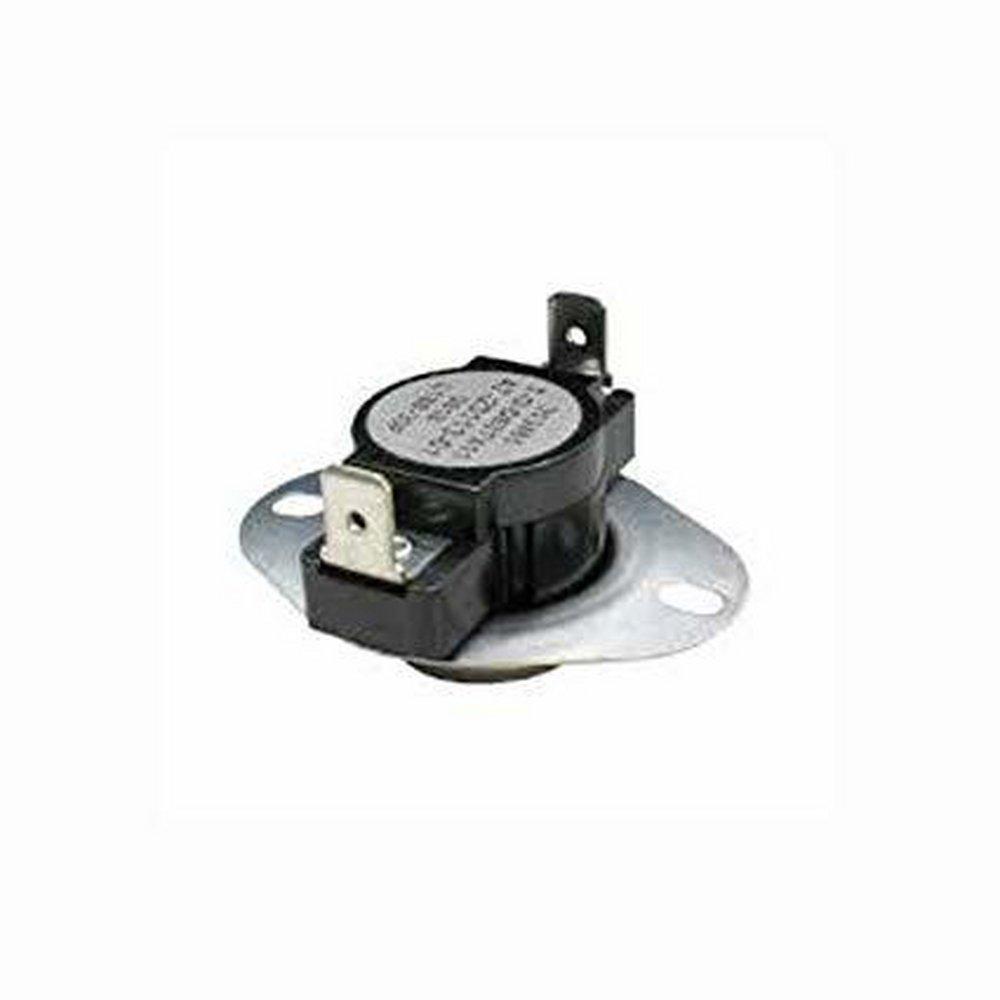

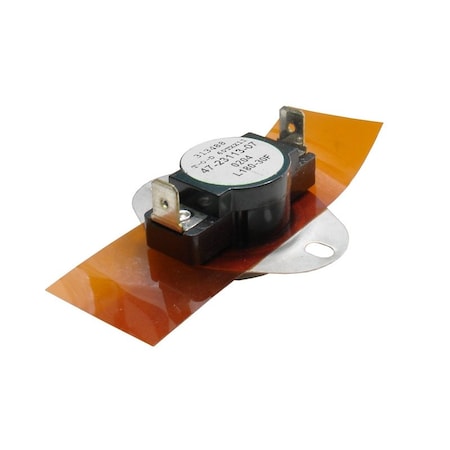

Rheem 47-23113-01 Auto Reset Limit Switch Flanged Airstream

Product Description

The Rheem 47-23113-01 Auto Reset Limit Switch is a critical component used in HVAC systems. It automatically switches off the blower fan when the air plenum reaches excessive temperatures.

• Auto reset flanged airstream
• Compatible with various Rheem models
• Effective temperature control

This limit switch features an SPST type switch with a normally closed orientation. It is designed to operate efficiently in different HVAC systems, ensuring safety by monitoring the temperature. With a maximum voltage rating of 230 VAC and a current rating of 25 A, it opens at 180°F and closes at 150°F. The durable construction and precise temperature sensing make it suitable for hot water tanks, heating systems, and industrial machinery.

Product Highlights

The Rheem 47-23113-01 Limit Switch ensures proper system function by preventing overheating and potential damage. It resets automatically, providing reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Rheem
• MPN: 47-23113-01

Technical Specifications

• Switch Type: SPST
• Contact Orientation: Normally Closed
• Maximum Voltage Rating: 230 VAC
• Maximum Current Rating: 25 A
• Open Temperature: 180°F
• Tolerance Open Temperature: +/-5°F
• Close Temperature: 150°F
• Tolerance Close Temperature: +/-6°F
• Insertion Depth: 3/8 inch
• Connections: 1/4 inch Quick Connects
• Application: Electric Heat Groups, Heaters
• Color: Green
