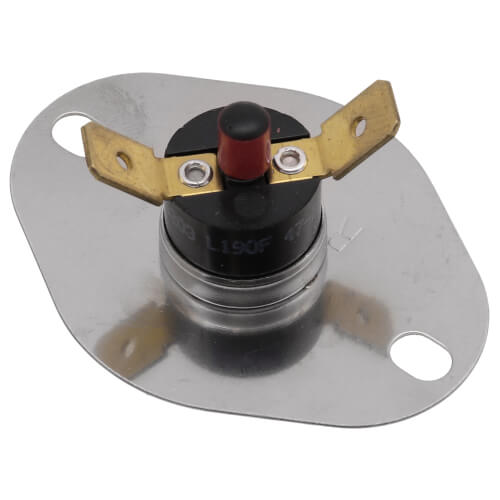

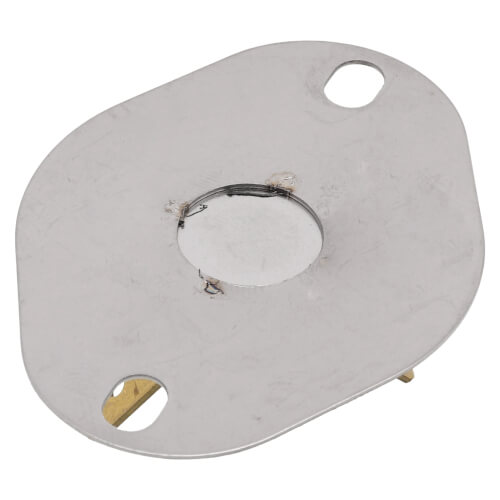

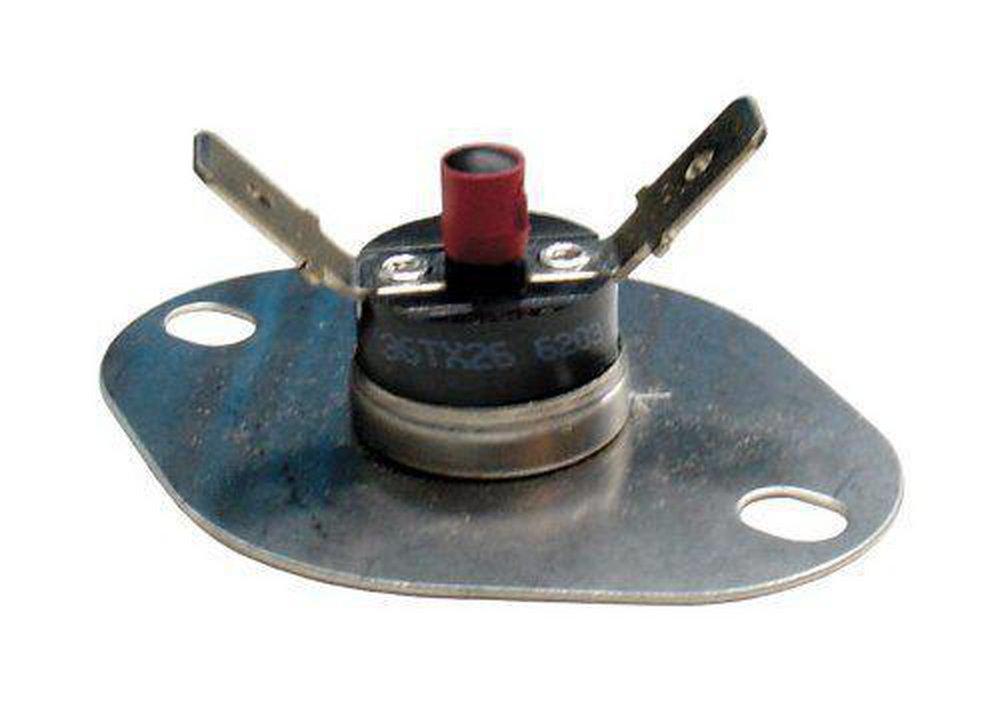

Rheem 47-22906-02 Protech 120/230V Limit Switch

Product Description

The Rheem 47-22906-02 Protech Limit Switch is an essential component for HVAC systems, ensuring safety and efficiency. This switch operates at 120/230V, making it versatile for various applications.

• For HVAC systems
• Manual reset feature
• Flanged surface mount

Product Highlights

This limit switch by Rheem is designed to control airflow and temperature in commercial and industrial HVAC systems. It features a single pole, single throw (SPST) normally closed magnetic relay for reliable operation.

Product Information

Standard Information

• Brand: Rheem
• MPN: 47-22906-02

Technical Specifications

• Voltage: 120/230V
• Number of Poles: 1
• Maximum Current Rating: 15/10A
• Open Temperature: 190°F
• Tolerance Open Temperature: +/-10°F
• Close Temperature: 45°F
• Disc Face: Enclosed
• Minimum Manual Reset Temperature: 125°F
• Mounting: Surface Mount - Flanged
• Connections: 1/4 Quick Connects
• Dimensions: 1.6 inches (Length) x 2.35 inches (Width) x 1.2 inches (Height)
