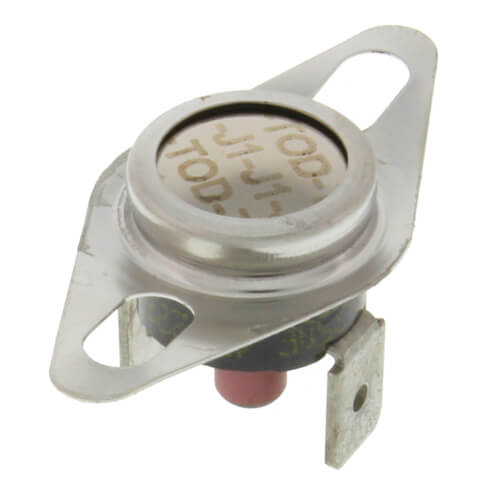

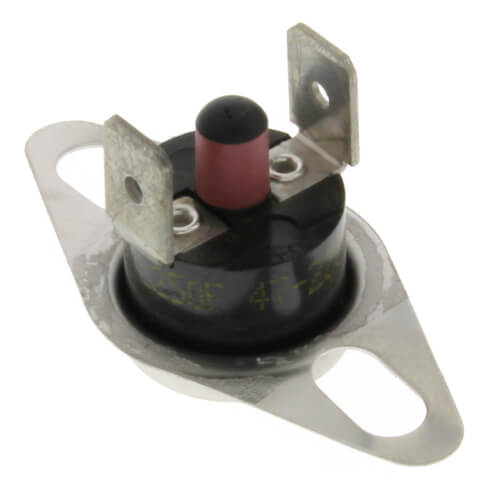

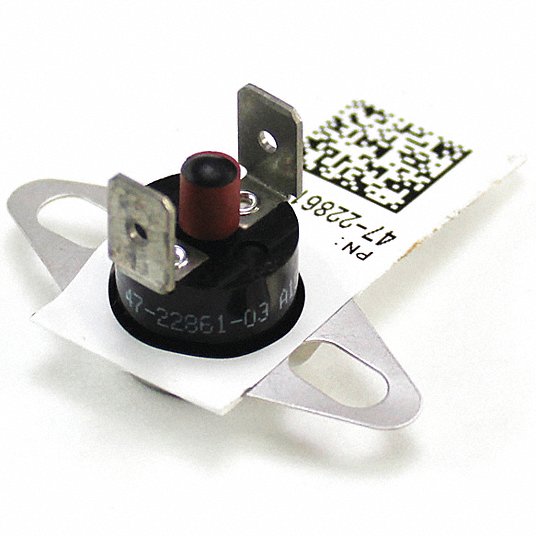

Rheem 47-22861-03K Limit Switch L250f Replacement 47-22861-03

Product Description

The RHEEM 47-22861-03K is a limit switch that monitors heat around burners. It stops the ignition sequence when overheating occurs, ensuring proper ventilation. This switch is equipped with a manual reset feature, is a single pole single throw (SPST) type, and has a normally closed contact orientation. The device activates at two hundred fifty degrees Fahrenheit with a tolerance of plus or minus twelve degrees.

• Monitors heat around burners
• Stops ignition sequence if overheating is detected
• Prevents furnace heating if ventilation is inadequate

Product Highlights

Reliable safety device for furnace operations.

Product Information

Standard Information

• Category: General Purpose
• Reset Mode: Manual

Technical Specifications

• No. of Poles: 1
• Switch Type: SPST
• Contact Orientation: Normally Closed
• Maximum Voltage Rating (VAC): 120 / 230
• Maximum Current Rating (A): 15 / 10
• Open Temperature (F): 250
• Tolerance Open Temperature (F): +/-12
• Minimum Manual Reset Temperature (F): 130
• Disc Face: Exposed
• Mounting: Flanged airstream
• Mounting Insertion Depth - Maximum (in.): 3/16
• Connections: 1/4 in. Quick Connects
• Brand: RHEEM
• Product Type: Limit Switch
• Overall Height: 1.75 in
