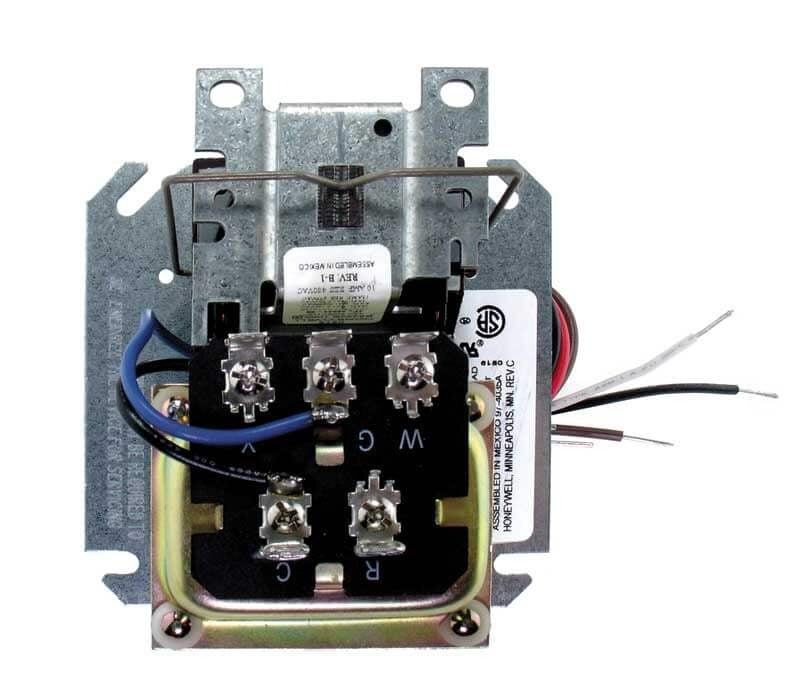

Rheem 47-17353-06 Fan Center 40 VA (4-3/16 x 4-3/16) 42-19736-02

Product Description

Rheem 47-17353-06 is an OEM fan center module for Rheem HVAC systems that integrates a 120 V primary / 24 V secondary transformer (40 VA) with a factory-mounted SPDT relay. The module provides control terminals W, G, Y, R, C and a 24 V relay coil, with relay contact ratings for 120 V and 230 V operation. It is compatible with ROAZ and ROHZ models and replaces multiple earlier Rheem part numbers.

• Integrated 120 V primary / 24 V secondary transformer, 40 VA, Class 2 energy limiting, 60 Hz
• SPDT relay included; relay coil 24 V, contact ratings: 12 A FLA / 72 A LRA at 120 V and 6 A FLA / 36 A LRA at 230 V
• Terminals W, G, Y, R, C; mounting plate dimensions 4-3/16 x 4-3/16 in; compatible with multiple prior Rheem part numbers and ROAZ/ROHZ models

Product Highlights

OEM fan center with 40 VA transformer and included SPDT relay for Rheem HVAC systems; terminals W/G/Y/R/C.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-17353-06
• Country of Origin: United States
