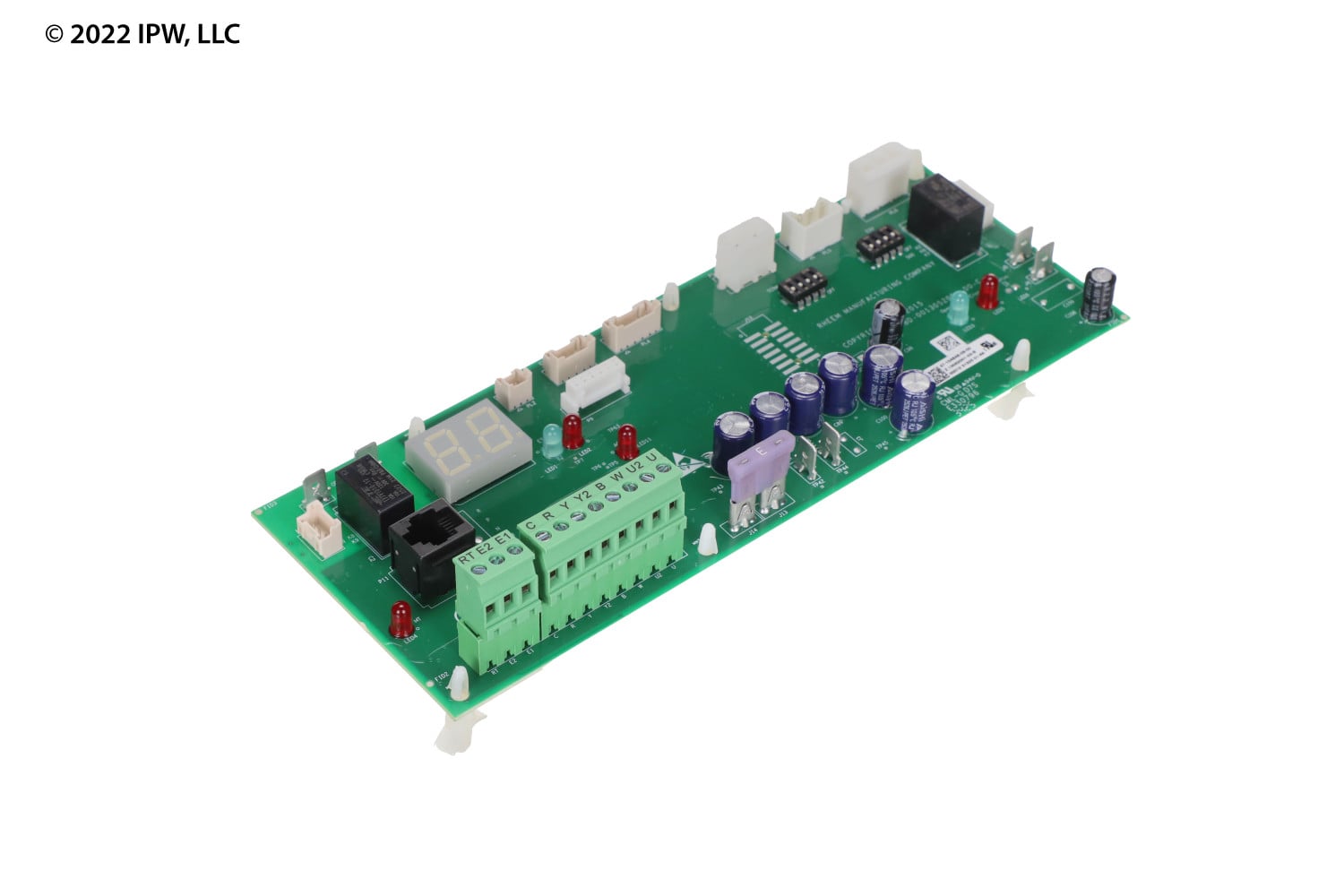

Rheem 47-104848-09k Variable Speed Control Board

Product Description

The RHEEM 47-104848-09k is a variable speed control board designed to manage ECM blower motor operation in forced-air heating and cooling systems. This board serves as the primary interface between the thermostat signal, system controls, and the variable speed blower motor, regulating airflow across multiple stages of operation. Licensed HVAC technicians install this board as a direct OEM-style replacement when the original control board has failed or become damaged. Its design supports the precise motor speed modulation that variable speed systems depend on for efficiency and comfort.

This control board is suited for residential forced-air systems equipped with variable speed ECM blower motors. It is typically found in gas furnaces and air handler configurations where multi-speed or fully variable airflow is required. When the original board fails, system symptoms commonly include erratic blower behavior, no blower operation, or fault codes related to motor communication. Replacement restores proper staged airflow control and motor communication functions.

Key Features

• Engineered for variable speed ECM blower motor control in forced-air HVAC systems
• OEM-style replacement board for reliable fit and function
• Manages airflow modulation across heating, cooling, and continuous fan modes
• Supports multi-stage system operation for improved efficiency
• Direct replacement reduces diagnostic time and simplifies installation

Compatibility

Designed as an OEM-style replacement variable speed control board for RHEEM and Ruud residential forced-air heating and cooling systems equipped with ECM blower motors.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the breaker and verify power is off with a meter before handling the control board. Follow all applicable local codes and manufacturer wiring documentation when reconnecting low-voltage and line-voltage connections. Do not power the system until all connections are secure and the board is properly mounted.

Technical Specifications

• Control Type: Variable Speed ECM Blower Motor Control

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-104848-09k
