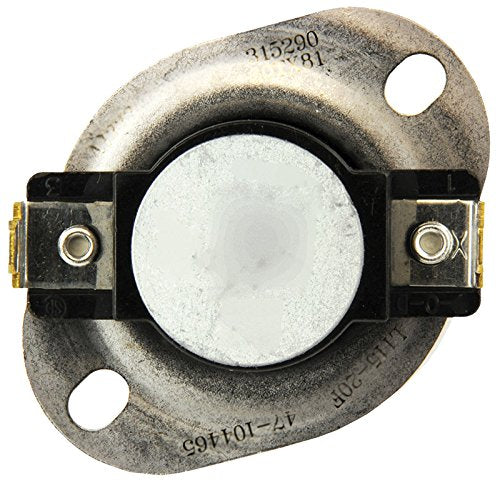

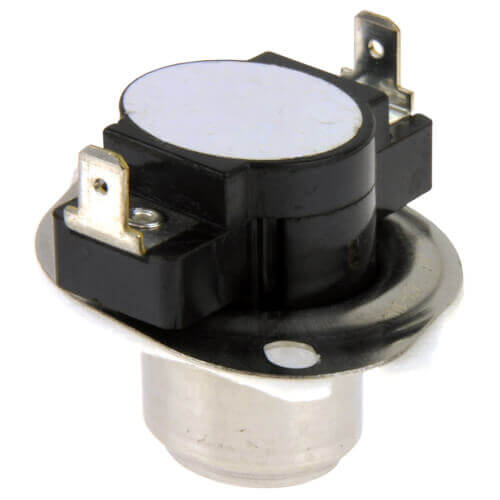

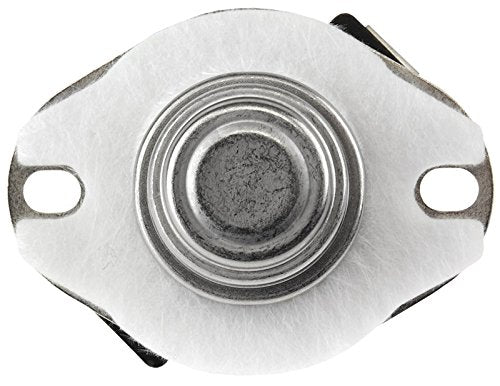

Rheem 47-104465-03 Limit Switch Auto Reset Flanged Airstream

Product Description

The Rheem 47-104465-03 Limit Switch Auto Reset with flanged airstream design is an essential component for HVAC systems. This single-pole, single-throw (SPST) switch automatically resets and is designed for general-purpose applications.

• Easy to install with a flanged airstream mount
• Rated for up to 230 volts and 25 amps
• Auto reset feature for added convenience

Product Highlights

The Rheem Limit Switch Auto Reset is essential for HVAC systems, featuring an auto reset function, maximum voltage rating of 230 volts, and a maximum current rating of 25 amps.

Product Information

Standard Information

• MPN: 47-104465-03
• Brand: Rheem
• Product Type: ELECTRONIC_SWITCH

Technical Specifications

• Series: 60T
• Switch Type: SPST
• Poles: 1
• Contact Orientation: Normally Closed
• Maximum Voltage Rating: 230 VAC
• Maximum Current Rating: 25 A
• Open Temperature: 125 degrees Fahrenheit
• Close Temperature: 115 degrees Fahrenheit
• Tolerance Open Temperature: +/-5 degrees Fahrenheit
• Tolerance Close Temperature: +/-5 degrees Fahrenheit
• Nominal Temperature Difference: 10 degrees Fahrenheit
• Color Code: Blue
• Disc Face: Enclosed

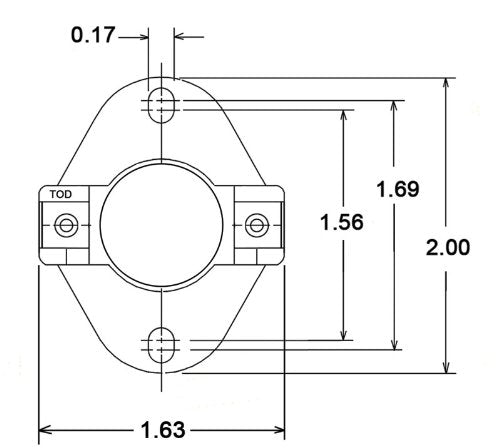

• Mounting: Flanged airstream
• Mounting Insertion Depth - Maximum: 25/32 inches
• Connections: 3/16 in. Quick Connects
