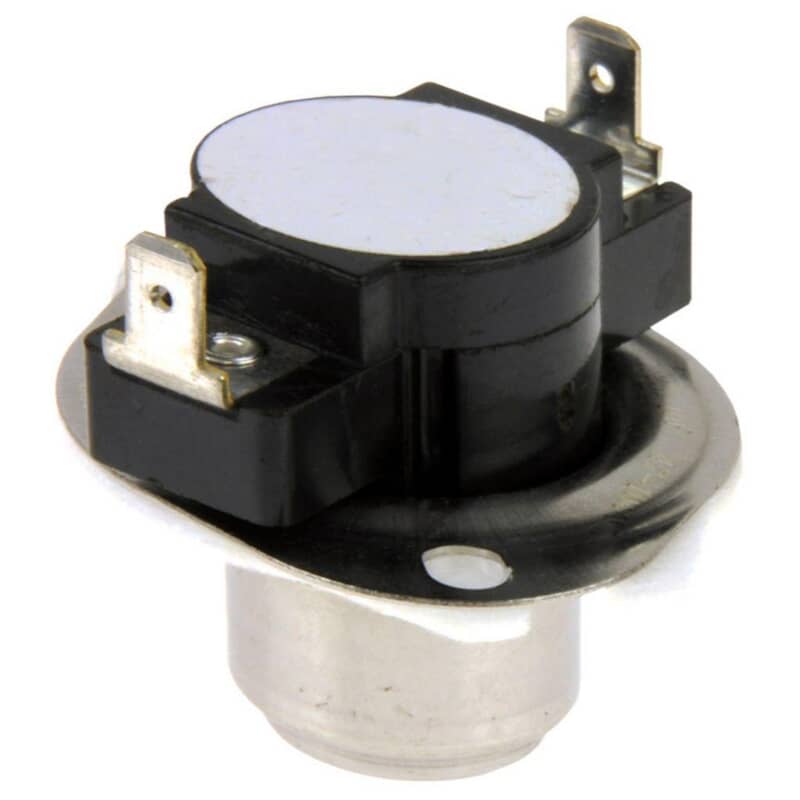

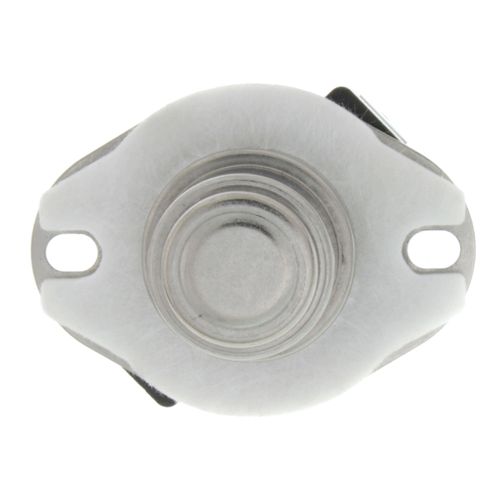

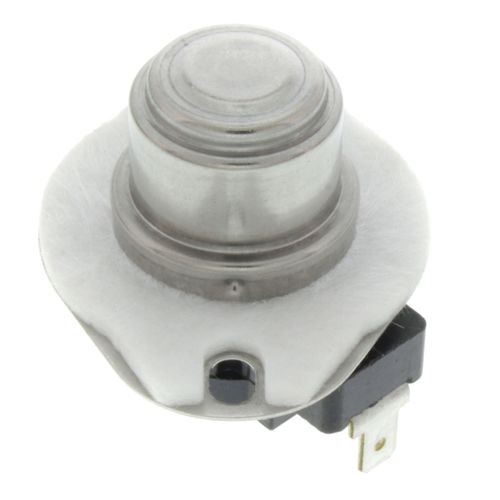

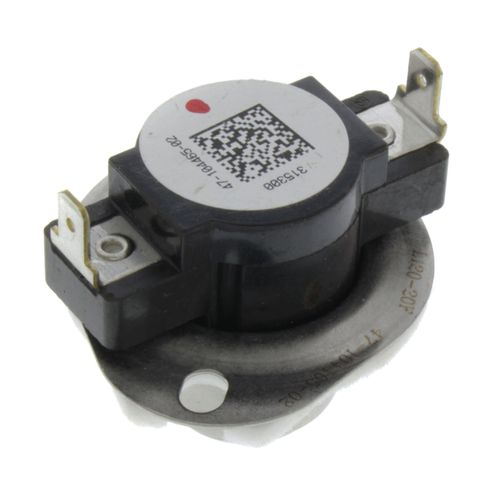

RHEEM 47-104465-02K Limit Switch Auto Reset

Product Description

The Rheem 47-104465-02K is a limit switch intended for Rheem HVAC equipment. This switch acts as a temperature-sensitive device that opens when the temperature rises. It includes automatic reset capabilities and employs a snap disk mechanism. The operation is normally closed and functions as a single pole, single throw device.

• Genuine OEM part for Rheem HVAC systems.
• Features automatic reset functionality.
• Opens on temperature rise for safety.

Product Highlights

This limit switch helps ensure the efficient operation of HVAC systems.

Product Information

Standard Information

• Manufacturer: Rheem
• Manufacturer Number: 47-104465-02

Technical Specifications

• Parts Town Number: RHM47-104465-02
• Units: Each
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch
• Application: Snap Disk Limit - TEMP
• Cut-In Temperature: 100°F (38°C)
• Cut-Out Temperature: 120°F (49°C)
• Switch Action: Open on Rise
• Differential: 20°F (12°C)
• Reset Mode: Automatic
• TOD Switch Series: 60T
