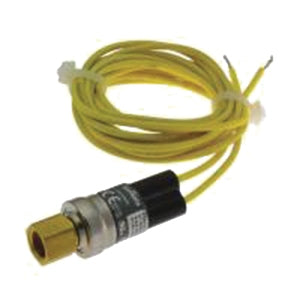

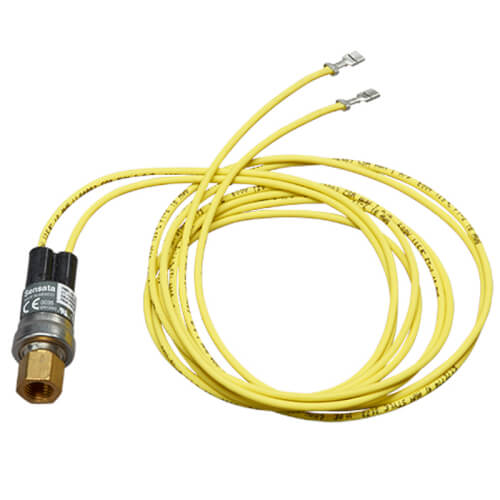

Rheem 47-103670-08 120/230V Auto Reset Low Pressure Control

Product Description

The Rheem 47-103670-08 is a 120/230V auto reset low pressure control designed to ensure safe operation of HVAC systems. It is essential for monitoring and managing air pressure in forced-air furnaces and air handlers.

• Automatically shuts off gas supply if air pressure drops below safe level
• Protects HVAC equipment from damage
• Compact and durable construction

Product Highlights

This low pressure limit control by Rheem features automatic reset functionality and durable construction, making it a reliable choice for your HVAC system.

Product Information

Standard Information

• Brand: Rheem
• Model: 47-103670-08

Technical Specifications

• Amperage Rating: 6A at 120/230VAC (Full Load), 36A Motor Locked Rotor at 120/230VAC
• Pressure Rating: 50 psig Open, 95 psig Close
• Wire Size: 18 AWG
• Burst Pressure: 3000 psig
• Connection: Flare (Female SAE)
• Wire Length: 48 inches
• Size: 1/4 inch
• Open Pressure Tolerance: +/-7 psig
• Close Pressure Tolerance: +/-7 psig
