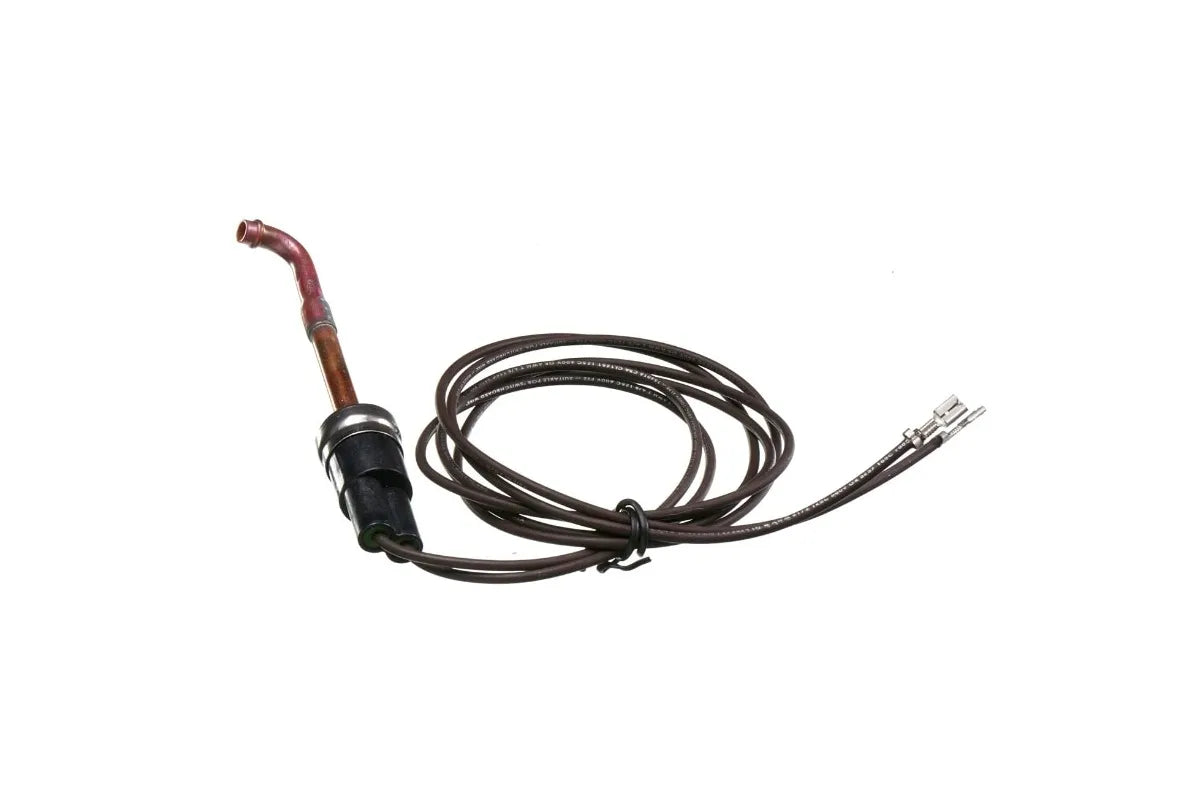

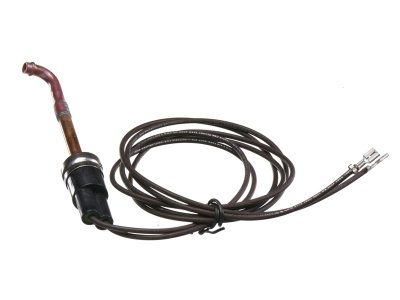

Rheem 47-103670-02 Low Pressure Limit Switch Auto Reset

Product Description

The Rheem 47-103670-02 is a low pressure limit switch designed for HVAC, refrigeration, pumps, and compressors. This automatic reset pressure switch operates efficiently under high pressure conditions. It ensures safe operation by resetting automatically when pressure drops below a specified limit.

• Hermetically sealed sensor for reliable operation.
• Environmentally sealed leads to prevent damage.
• Flexible set point range for accurate pressure management.

Product Highlights

This device ensures your HVAC systems operate safely with its robust design and effective pressure monitoring capabilities.

Product Information

Standard Information

• Actuator Type: Automatic
• Connection Type: 1/4 in Sweat

Technical Specifications

• Number of Poles: 1
• Pilot Duty Rating: 375 VA at 120 VAC, 125 VA at 24 VAC, 375 VA at 277 VAC
• Pressure Rating: 50 psi Open, 90 psi Close
• Switching Action: SPST
• Wire Size: 18 AWG
• Manufacturer: Rheem
• Part Number: 47-103670-02
• High Limit: 95 psi
• Low Limit: 50 psi
• Type: Pressure Switch
• Approximate Height: 1.90 inches
• Approximate Length: 5.40 inches
• Approximate Width: 3.10 inches
• Additional Information: 90 deg Elbow Refrigerant Connection
