Rheem 47-102738-158 Model Data Memory Card RP17

Product Description

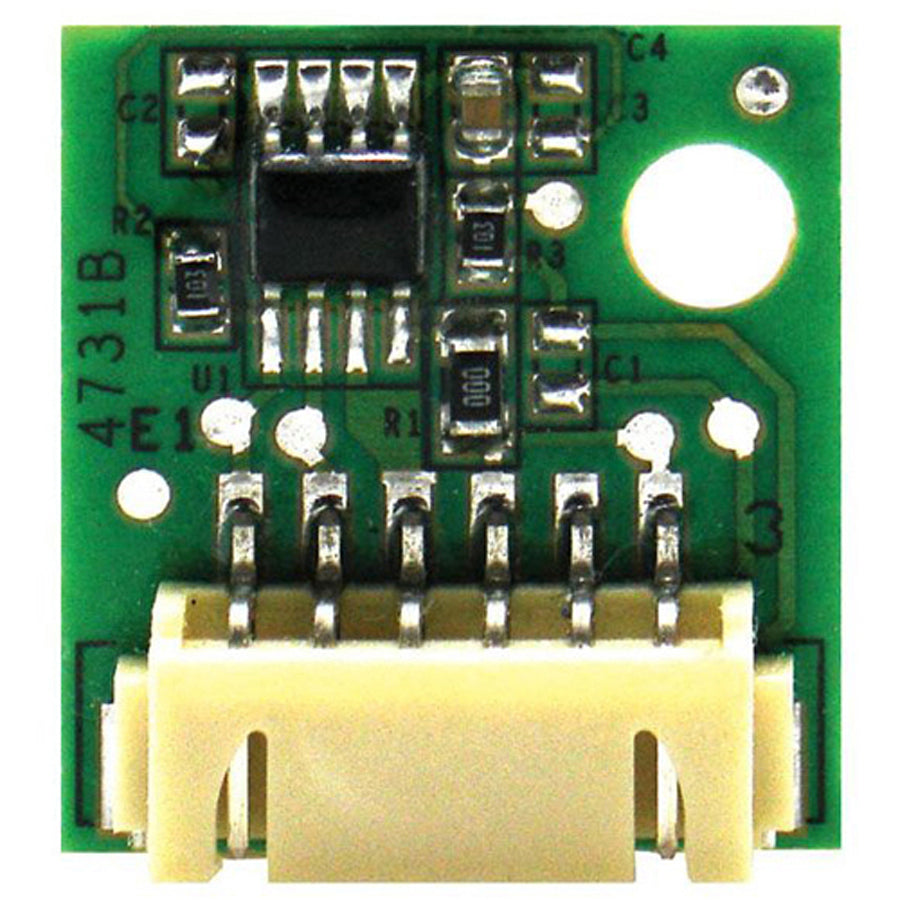

The RHEEM 47-102738-158 is a model data memory card (EEPROM) designed for use in Rheem RP17 series heat pumps. This card stores unit-specific configuration and model data that the heat pump control system reads during operation. Replacing a failed or missing memory card restores proper system identification and control behavior. The card measures 5.3 inches in length, 3.1 inches in width, and 2.0 inches in height, and weighs 0.2 pounds. Installation is typically performed by a licensed HVAC technician as part of a control system diagnostic or repair procedure.

This memory card is used in residential heat pump applications where the RP17 platform requires stored model data for correct unit operation. When the control board cannot read valid model configuration data, the system may fault or fail to operate within its designed parameters. Replacing this card restores the stored EEPROM data specific to the RP17 unit. It is typically serviced during board-level diagnostics, unit commissioning, or after a control board replacement where model data must be re-established.

Key Features

• Stores unit-specific model configuration data for RP17 heat pump control systems
• Direct OEM replacement card for restoring EEPROM memory function
• Compact form factor at 5.3 x 3.1 x 2.0 inches for easy handling and installation
• Lightweight at 0.2 pounds, designed for plug-in installation in compatible control assemblies

Compatibility

Designed as an OEM replacement model data memory card for the Rheem RP17 series heat pump.

Installation Notes

This component should be installed by a licensed HVAC technician. Disconnect power to the heat pump unit at the disconnect box and confirm the system is de-energized before handling any control components. Handle the memory card carefully to avoid static discharge damage to the EEPROM. Refer to the unit service manual for proper card seating and orientation in the control assembly.

Technical Specifications

• Item Type: Model Data Memory Card
• Used On: Heat Pump
• Compatible Model: RP17
• Length: 5.3 inches
• Width: 3.1 inches
• Height: 2.0 inches
• Weight: 0.2 pounds

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-102738-158
