Rheem 47-102738-154 Model Data Memory Card Heat Pump RP20

Product Description

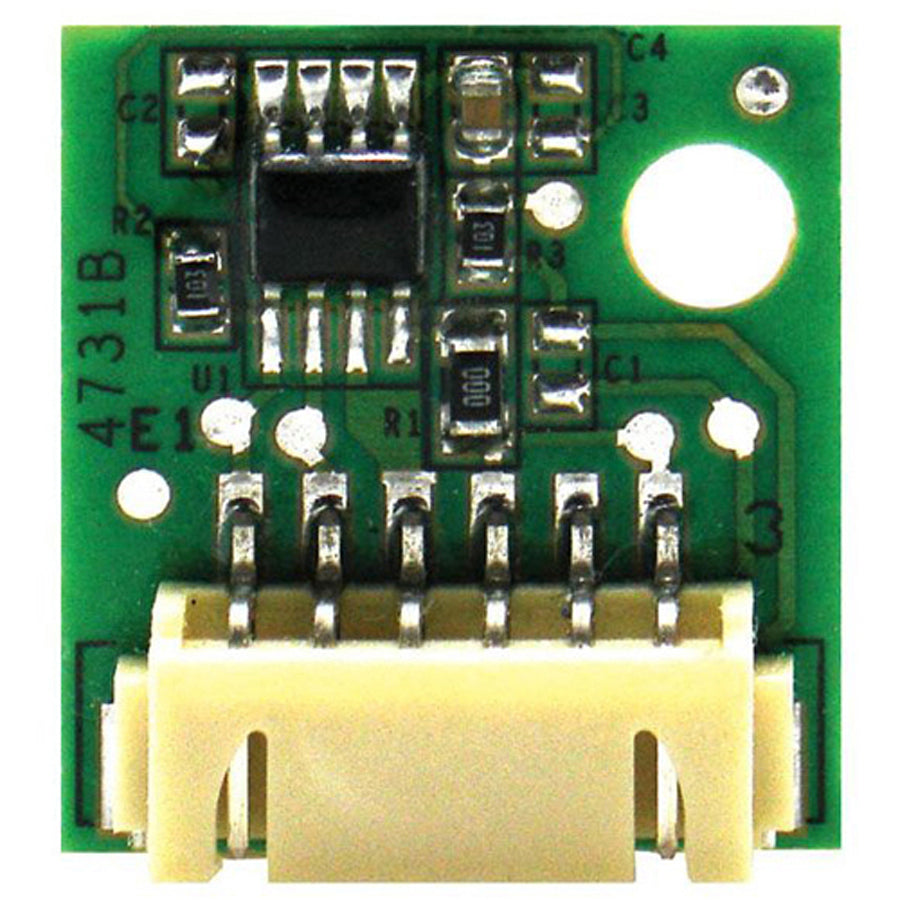

The RHEEM 47-102738-154 is a model data memory card (EEPROM) designed for use in heat pump systems. This card stores unit-specific configuration and operating parameters that the control board reads during startup and operation. It is a direct OEM-style replacement component installed by licensed HVAC technicians during diagnostic service, control board replacement, or unit commissioning. The card measures 5.3 inches in length, 3.1 inches in width, and 2.0 inches in height, and weighs 0.2 pounds. Proper model data must be present for the heat pump to operate within designed parameters.

This memory card is used on the RHEEM RP20 heat pump model line. It is typically encountered during field service when a control board is replaced and the unit-specific data must be transferred or restored, or when the original card has been damaged or lost. Installation is performed by a qualified HVAC service technician familiar with RHEEM heat pump control systems.

Key Features

• Stores OEM model-specific configuration data for correct unit operation
• EEPROM-based memory card — retains data without power
• Compact form factor: 5.3 x 3.1 x 2.0 inches
• Lightweight at 0.2 pounds for easy handling during service
• Direct replacement for RP20 heat pump applications

Compatibility

Designed for use on the RHEEM RP20 heat pump model line as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the unit at the disconnect box before handling any control components or memory cards. Handle the EEPROM card carefully to avoid electrostatic discharge, which can corrupt stored data or damage the card. Verify the replacement card part number matches the original before installation to ensure correct model data is loaded.

Technical Specifications

• Item Type: Model Data Memory Card (EEPROM)
• Used On: Heat Pump
• Compatible Model: RP20
• Length: 5.3 inches
• Width: 3.1 inches
• Height: 2.0 inches
• Weight: 0.2 pounds

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-102738-154
