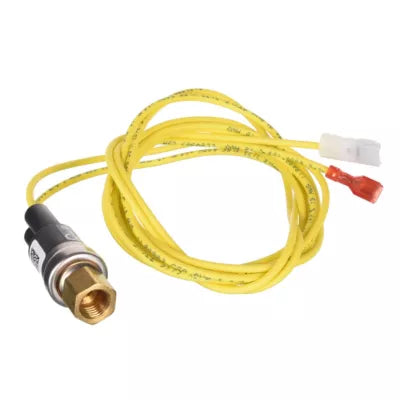

Rheem 47-102290-10 High Pressure Control

Product Description

The RHEEM 47-102290-10 is a high pressure control switch designed for use in refrigerant-side pressure management within RHEEM HVAC systems. This component monitors refrigerant circuit pressure and interrupts system operation when pressure exceeds a safe threshold, protecting the compressor and refrigerant circuit from damage. It is a direct OEM replacement part sold individually and is typically installed by a licensed HVAC technician during routine maintenance, system repair, or compressor protection diagnostics.

This high pressure control is specified for use in RHEEM commercial and residential HVAC equipment. It fits within refrigerant circuit assemblies where high-side pressure monitoring is required. The part is sold as a single unit and is suited for installs where the original control has failed or is being replaced as part of a broader compressor or refrigerant circuit service call.

Key Features

• OEM RHEEM replacement high pressure control for reliable fitment
• Protects compressor by interrupting operation on high-side pressure exceedance
• Sold individually as a single unit per order
• Designed for refrigerant circuit pressure monitoring applications

Compatibility

Designed for use with RHEEM models RACAZ, RGEAZ-U, and RGEAZR.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and the system manufacturer's service documentation. Disconnect and lock out all electrical power and recover refrigerant per EPA Section 608 requirements before removing the existing pressure control. Do not energize the system until all refrigerant connections are leak-tested and the circuit is properly charged by a certified technician.

Technical Specifications

• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-102290-10
