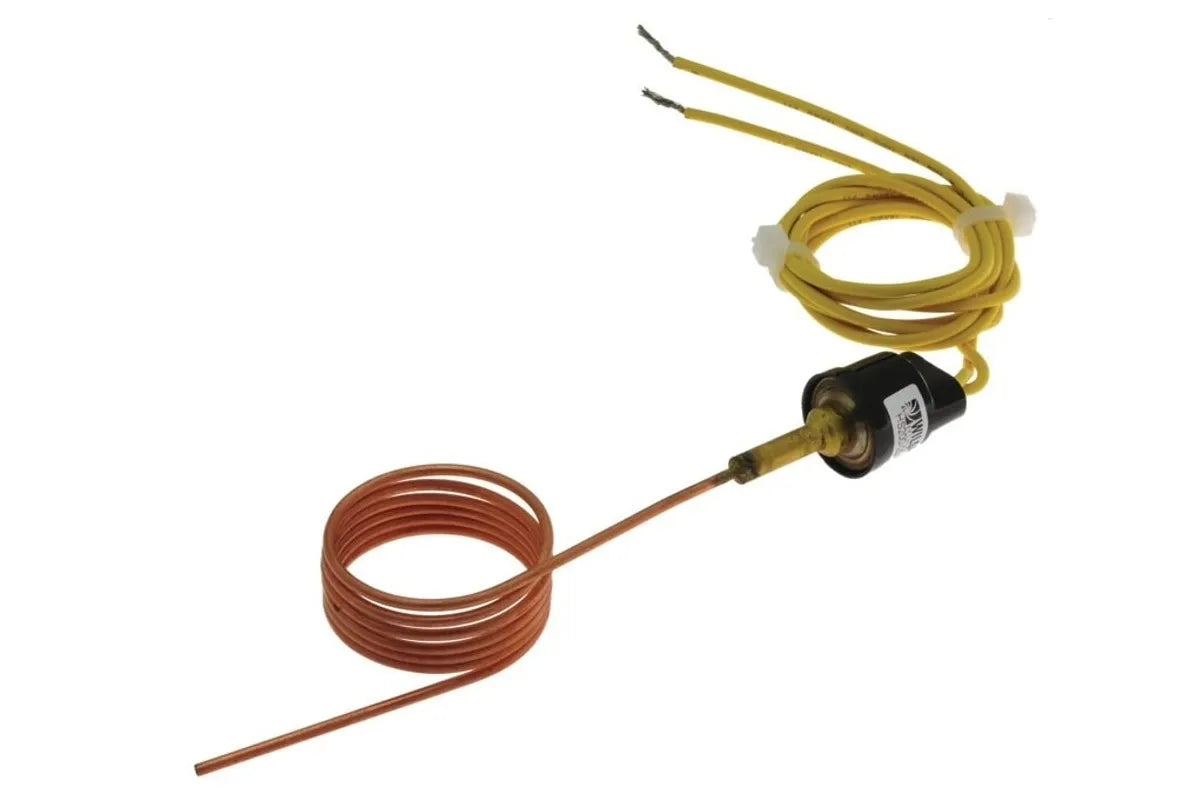

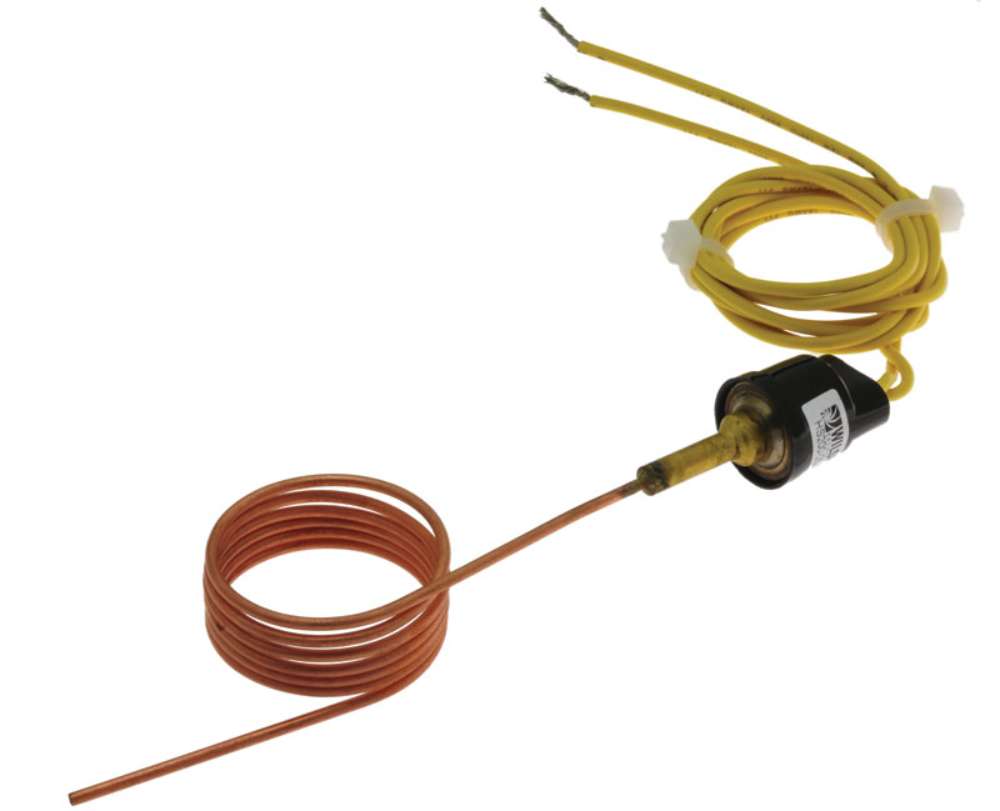

Rheem 47-100902-01 Low Pressure Limit - Auto Reset 15 Open, 40 Closed

Product Description

The Rheem 47-100902-01 low pressure limit with auto reset controls the operation of heating systems. It opens at 15 degrees and closes at 40 degrees. This OEM part helps manage temperature limits to ensure safe and efficient system performance. It protects equipment from damage due to low pressure conditions.

• Automatic reset
• Genuine Factory OEM repair part
• Opens at 15 degrees and closes at 40 degrees

Product Highlights

This Rheem low pressure limit switch helps manage temperature limits to ensure safe and efficient system performance.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 47-100902-01

Technical Specifications

• Product Number: 47-100902-01
• Brand: Rheem
• Category: HVAC
• Condition: Brand New
• Item ID: 47-100902-01
• Manufacturer: Rheem
• Product Type: Limit Switch
• Burst Test Pressure (psig): 5000
• Capillary Tube Included: Yes
• Capillary Tube Length (in): 36
• Close Pressure (psig): 40
• Open Pressure (psig): 15
• Pilot Duty Rating at 120VAC (VA): 375
• Pilot Duty Rating at 230VAC (VA): 375
• Pilot Duty Rating at 24VAC (VA): 125
• Proof Test Pressure (psig): 500
• Refrigerant Connection Size (in): 3/32
• Refrigerant Connection Type: Sweat
• Reset: Auto
• Tolerance Close Pressure (psig): +/-5
• Tolerance Open Pressure (psig): +/-4
• Type: Low Pressure Limit
• Wire Length (in.): 30
• Wire Size (AWG): 18
