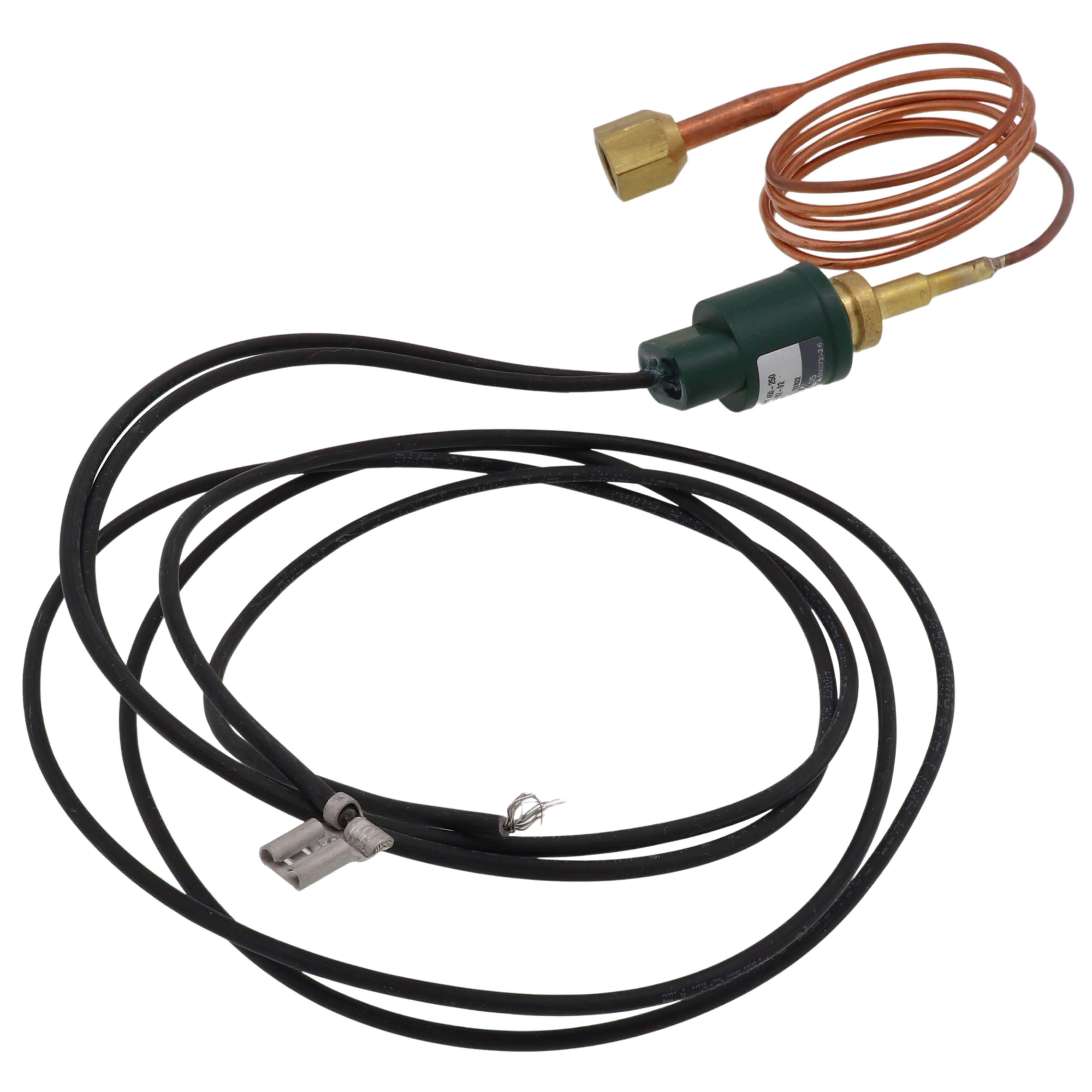

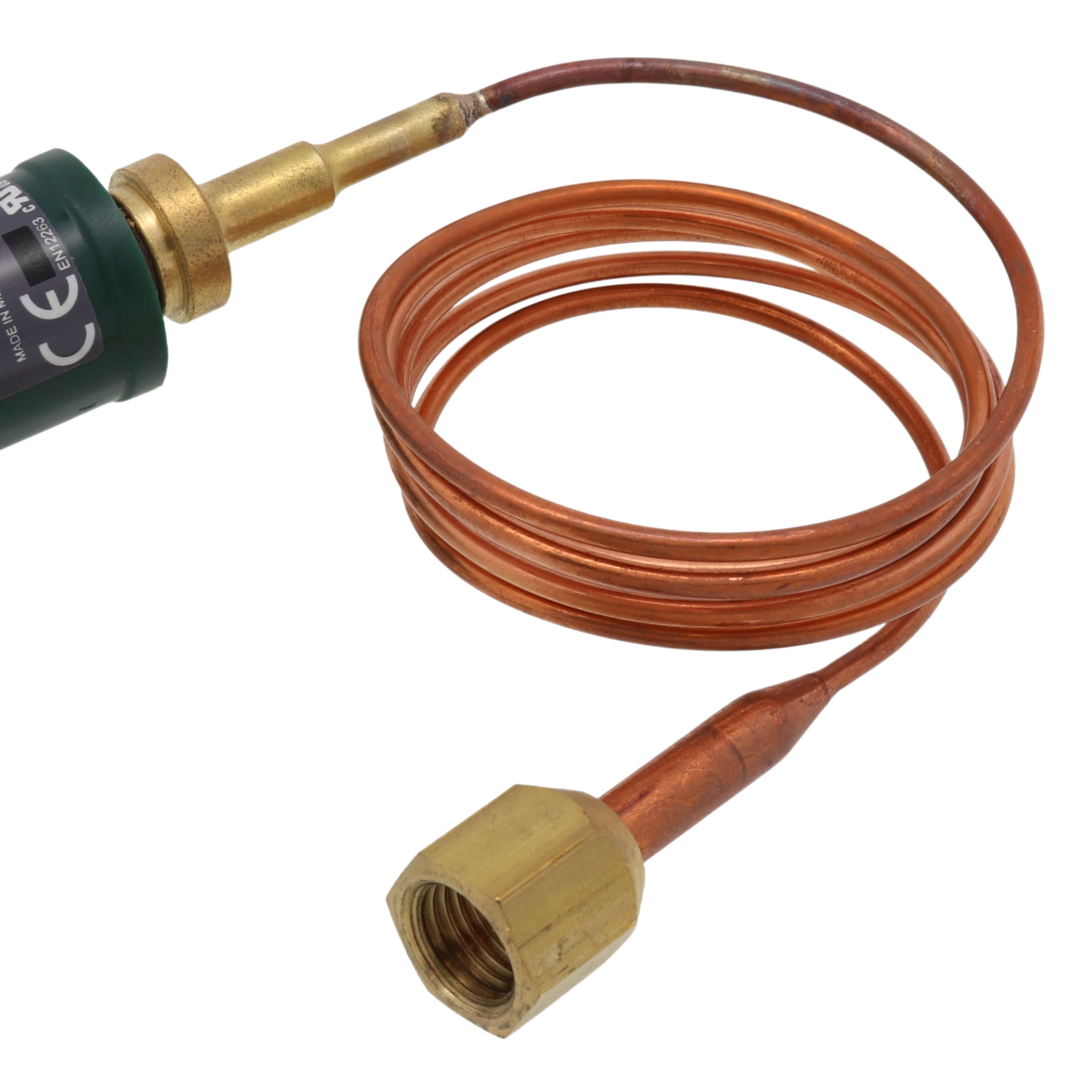

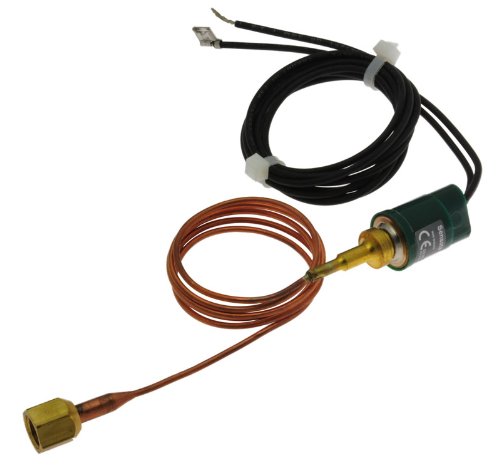

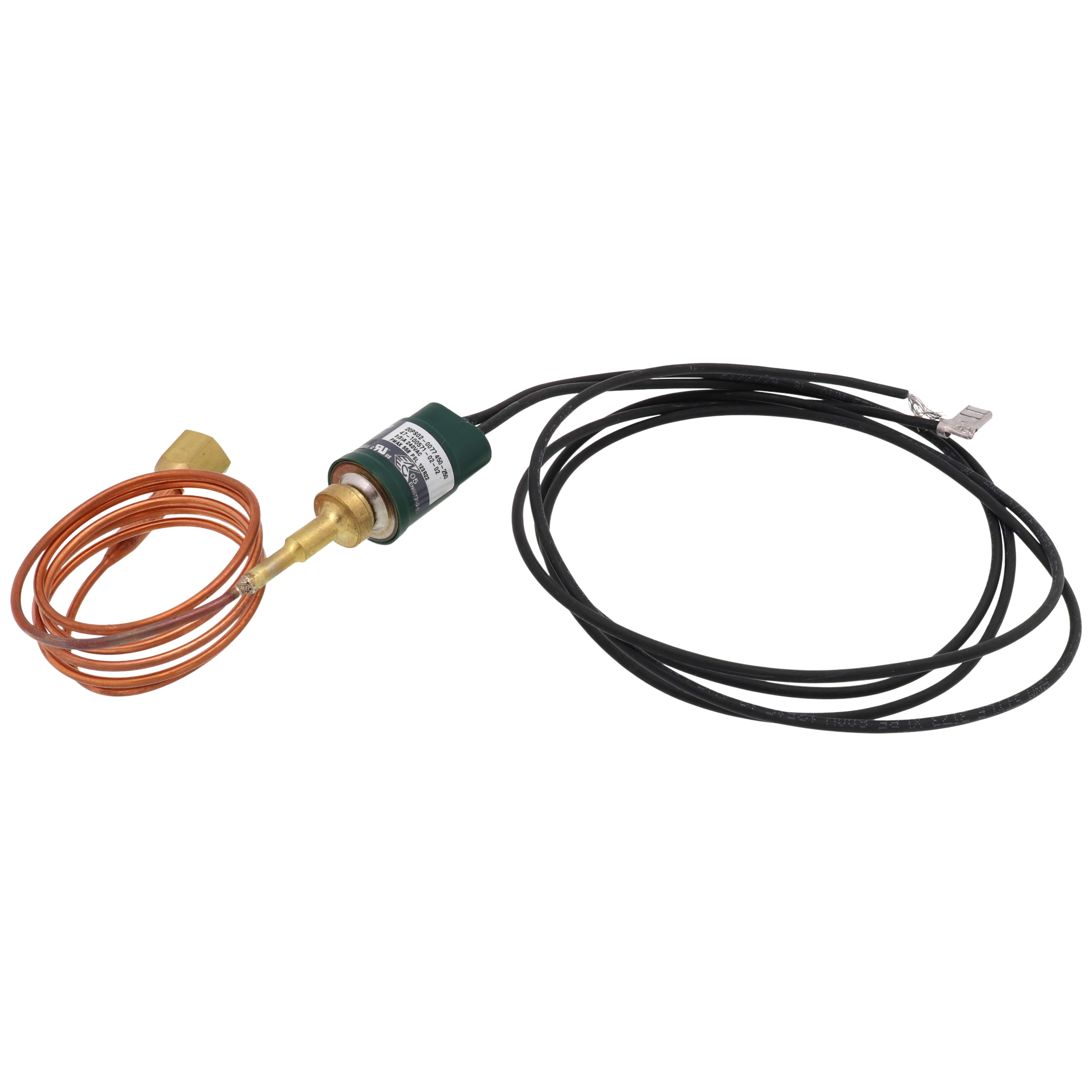

Rheem 47-100571-02 Low Ambient Control Low Pressure Limit - Auto Reset

Product Description

The Rheem 47-100571-02 Low Ambient Control Low Pressure Limit - Auto Reset is a critical component for HVAC systems. This device ensures efficient operation even in low-temperature environments. Designed for Rheem systems, it features automatic reset to minimize downtime.

• Ensures efficient HVAC operation
• Automatic reset for minimal downtime
• Designed for low-temperature environments

Product Highlights

This Rheem control device is essential for maintaining reliable HVAC performance in cold conditions. The auto reset feature ensures continuous operation, while its ability to function in low ambient temperatures protects the system from damage and extends its lifespan.

Product Information

Standard Information

• Type: Low Pressure Limit
• Reset: Auto

Technical Specifications

• Open Pressure (psig): 250
• Tolerance Open Pressure (psig): +/- 10
• Close Pressure (psig): 450
• Tolerance Close Pressure (psig): +/- 10
• Refrigerant Connection Type: Flare (Female SAE)
• Refrigerant Connection Size (in): 1/4
• Capillary Tube Included: Yes
• Capillary Tube Length (in): 36
• Wire Size (AWG): 18
• Wire Length (in): 36
• Motor Full Load Current at 120VAC (A): 5.8
• Motor Full Load Current at 230VAC (A): 2.9
• Motor Locked Rotor Current at 120VAC (A): 34.8
• Motor Locked Rotor Current at 230VAC (A): 15.0
• Pilot Duty Rating at 24VAC (VA): 125
• Pilot Duty Rating at 120VAC (VA): 375
• Pilot Duty Rating at 230VAC (VA): 375
• Proof Test Pressure (psig): 800
• Burst Test Pressure (psig): 5000
