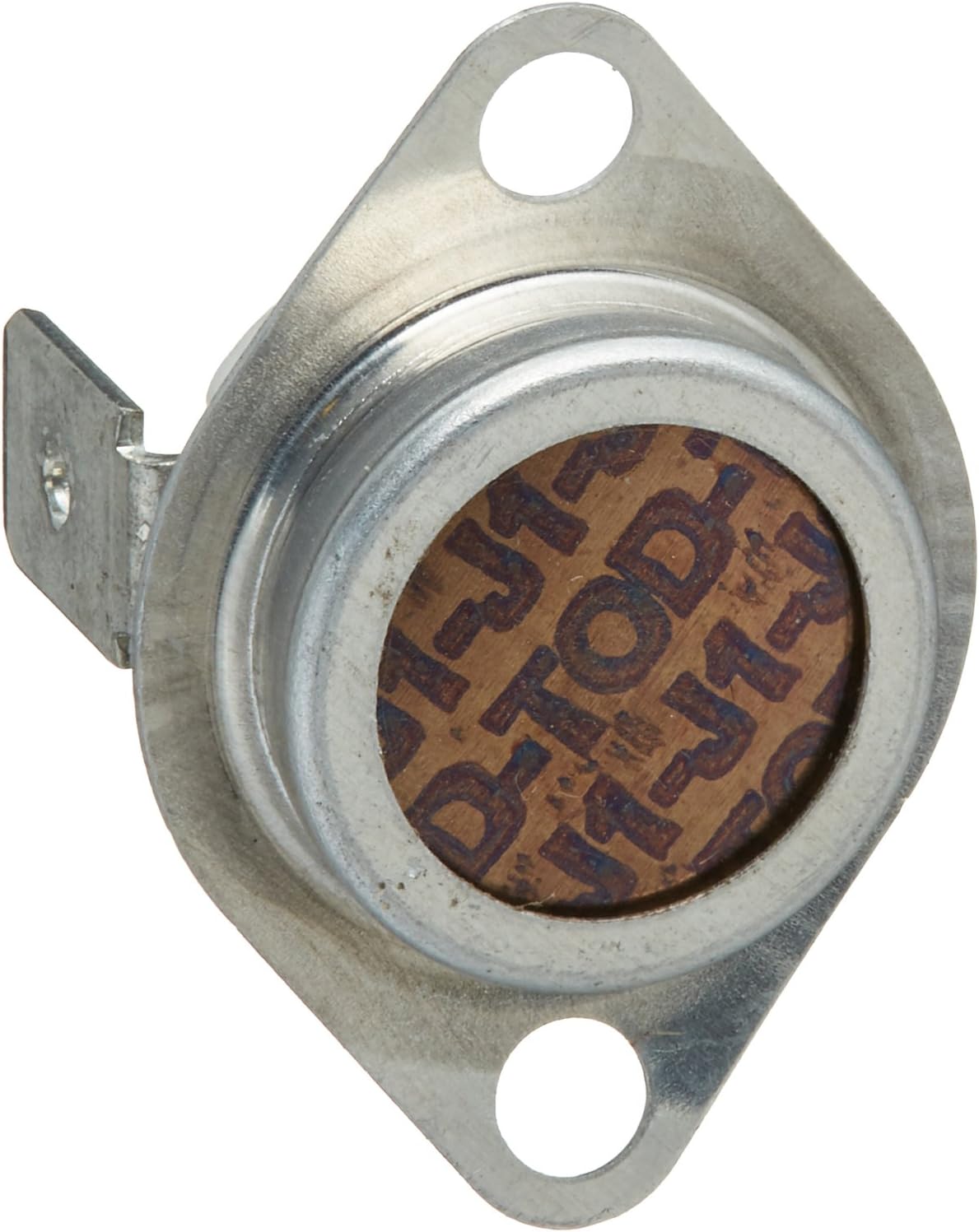

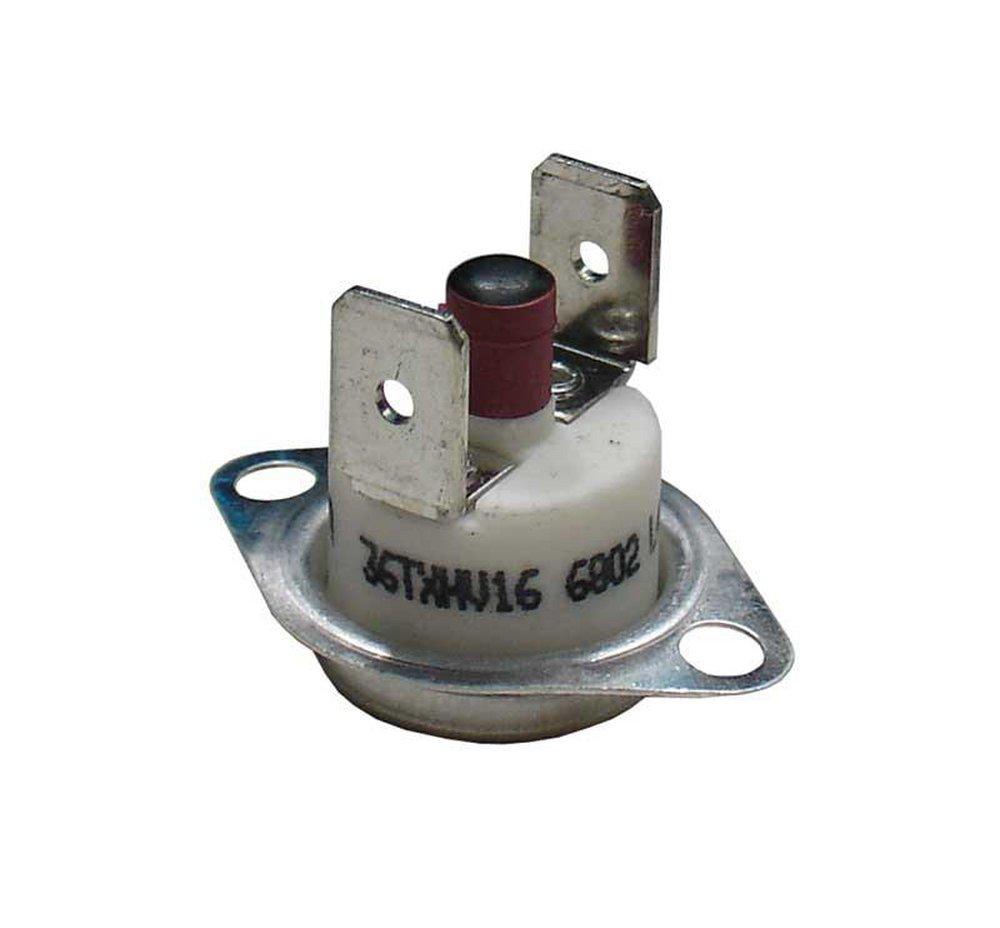

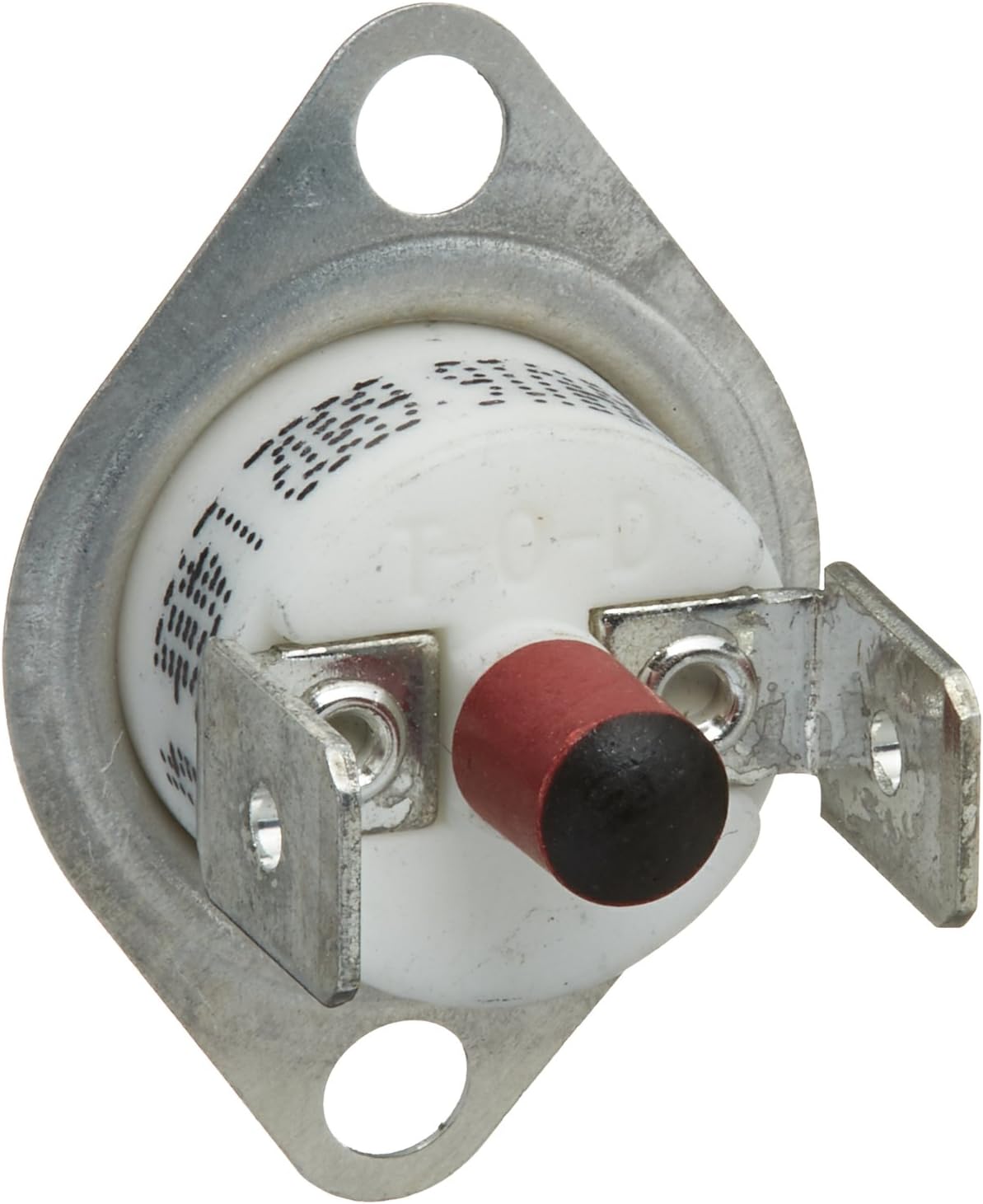

Rheem 47-100241-01 Manual Reset Limit Switch with Flanged Airstream

Product Description

The Rheem 47-100241-01 Manual Reset Limit Switch with Flanged Airstream is an essential component for HVAC systems. This limit switch ensures safe operation by switching off the blower fan when the air plenum reaches a certain temperature.

• Used in HVAC systems for safe operation.
• Manual reset functionality.
• Flanged airstream mounting.

Product Highlights

This limit switch is simple to install and use, providing essential temperature control within HVAC systems.

Product Information

Standard Information

• MPN: 47-100241-01
• Brand: Rheem
• UPC: 0662766250169

Technical Specifications

• Voltage Rating: 120/230V
• Ampere Rating: 15A/10A
• Switch Type: SPST
• Switch Orientation: Normally Closed
• Mounting Type: Flanged Airstream
• Open Temperature: 400 degrees Fahrenheit
• Tolerance Open Temperature: +/- 20 degrees Fahrenheit
• Minimum Reset Temperature: 230 degrees Fahrenheit
• Connection: 1/4 inch Quick Connect
• Dimensions: 0.8 x 1.1 x 0.8 inches
