Rheem 46-100836-05 Transformer 208/230V Primary 24V Secondary 50 VA 50/60 Hz

Product Description

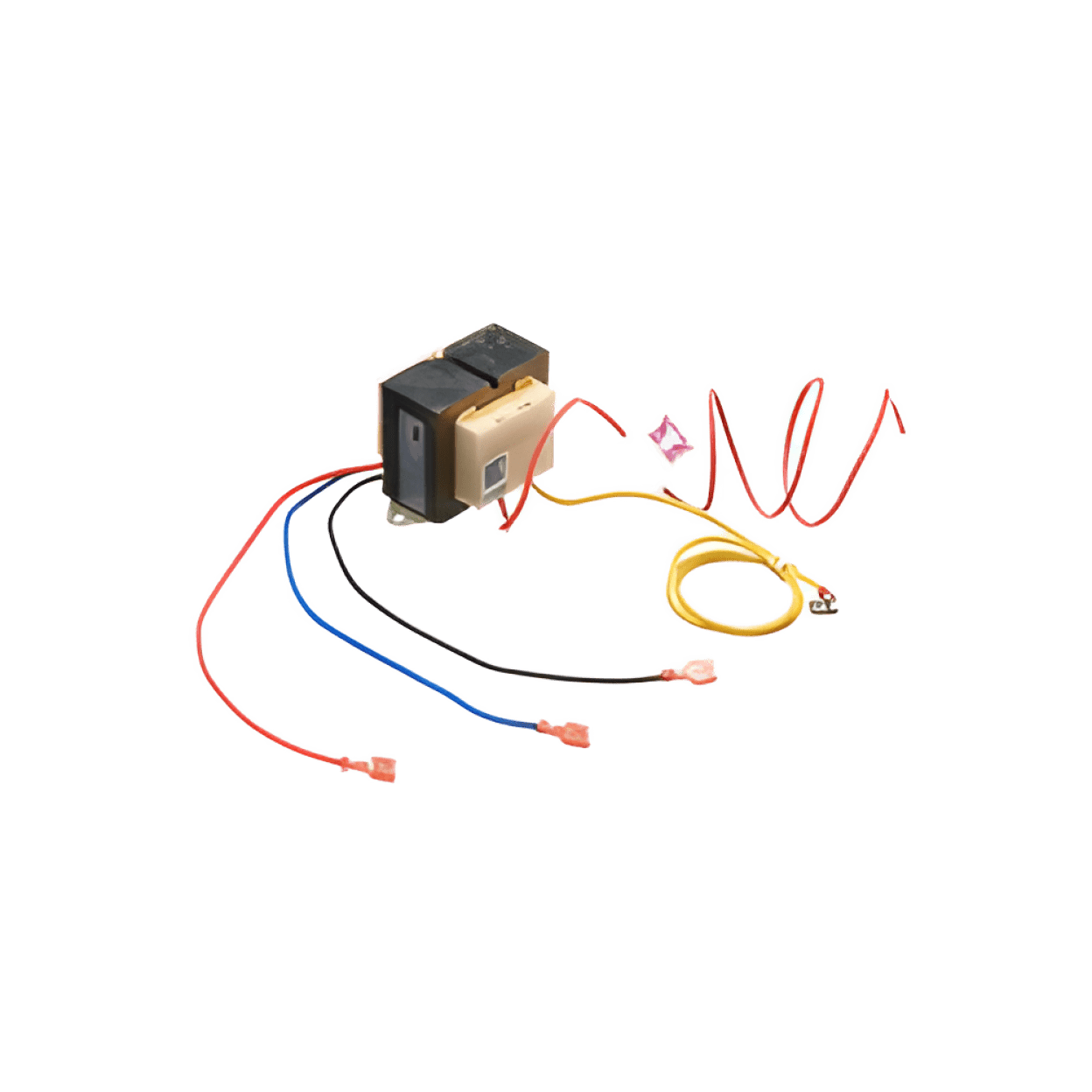

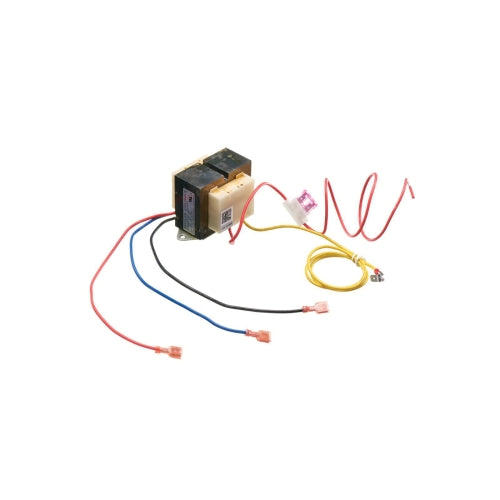

The Rheem 46-100836-05 is a control transformer designed for HVAC systems. It features a primary voltage of 208/230 volts and provides a secondary output of 24 volts with a capacity of 50 VA. This transformer operates at a frequency of 50/60 Hz, making it suitable for a variety of heating and cooling applications.

• Electrical Rating: 208/230V Primary and 24V Secondary
• Overcurrent Protection: 3A External Fuse
• Mounting Type: Two Hole Channel

Product Highlights

This control transformer is ideal for use with air conditioning equipment. It supports standardized electrical connections, ensuring compatibility with existing systems.

Product Information

Standard Information

• Brand: Rheem Parts
• MPN: 46-100836-05

Technical Specifications

• Electrical Rating: 208/230V Primary, 24V Secondary, 50 VA Capacity, 50/60 Hz
• Dimensions: 3-1/8 inches Four Hole Spacing
• For Use With: Air Conditioning Equipment
• Overcurrent Protection: 3A External Fuse
• Electrical Connections: Leads with 1/4 inch Insulated Female Quick Connects
• Power Limiting: Class 2
• Mounting: Two Hole Channel
