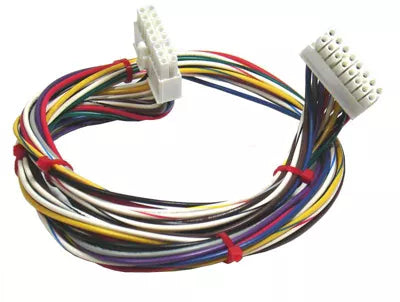

Rheem 45-24258-14 Wiring Harness

Product Description

The RHEEM 45-24258-14 is a OEM wiring harness designed for use in Rheem heating and cooling equipment. A wiring harness bundles and routes the electrical conductors that connect control boards, motors, sensors, and other components within the unit. It provides organized, insulated pathways for low-voltage and line-voltage signals, helping maintain reliable electrical connections throughout the system. This part is sold as a single unit and is installed by qualified HVAC technicians during repair or component replacement procedures.

This wiring harness is suited for residential HVAC applications where the original harness has become damaged, corroded, or degraded. Replacing a faulty harness restores proper electrical communication between system components and eliminates faults caused by broken or shorted wiring. It is a direct OEM replacement intended to match the original routing and connector configuration of the equipment it serves.

Key Features

• OEM replacement part sourced directly from Rheem
• Bundles and routes electrical conductors between system components
• Supports reliable low-voltage and line-voltage signal transfer
• Sold individually as a single replacement unit
• Designed to match original connector layout and harness routing

Compatibility

Designed as an OEM-style replacement wiring harness for Rheem heating and cooling equipment. Verify fitment against the unit model number and wiring diagram before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect power to the unit at the disconnect switch or breaker panel before handling any wiring components. Route the replacement harness to match the original path, securing it away from sharp edges and heat sources. Refer to the unit wiring diagram to confirm connector positions before restoring power.

Technical Specifications

• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 45-24258-14
