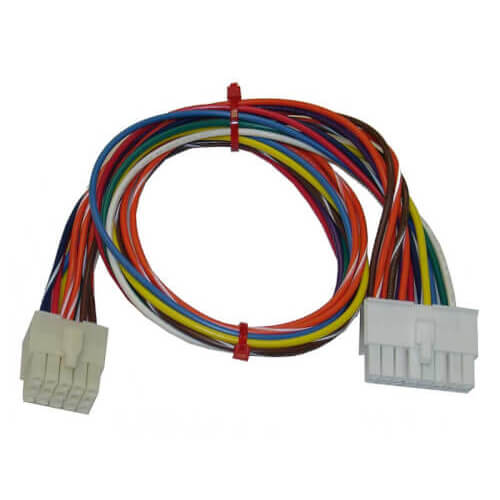

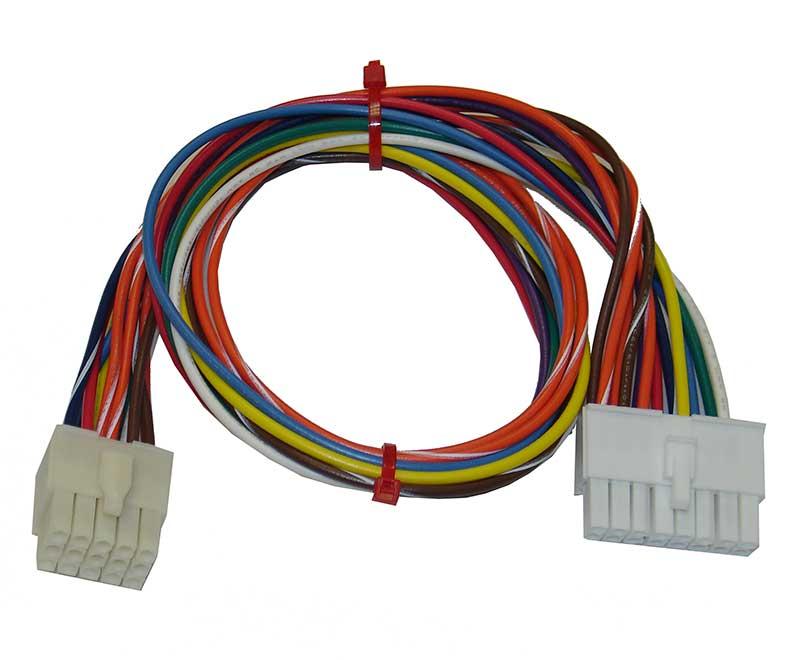

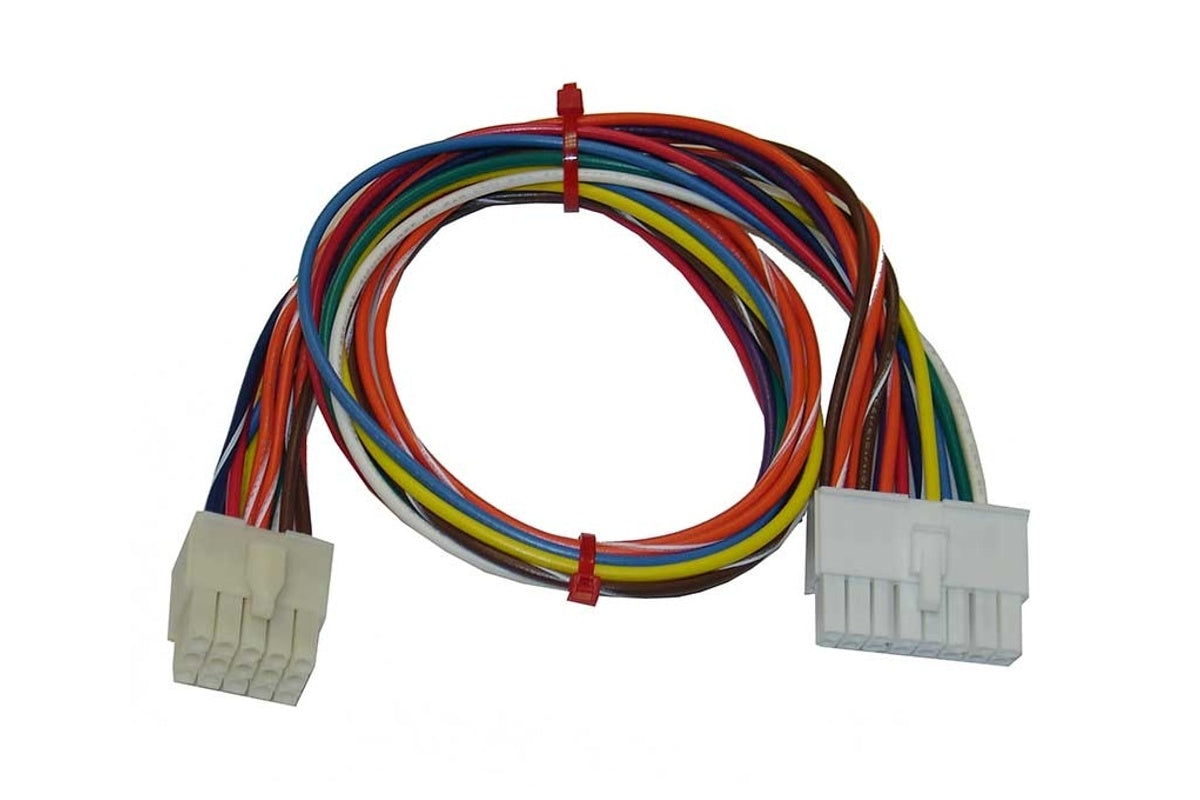

Rheem 45-24258-09 Wiring Harness (16-pin to 15-pin) 45-24258-09

Product Description

Rheem 45-24258-09 is a wiring harness that converts a 16-pin connector to a 15-pin connector for Rheem and Ruud HVAC equipment. It serves as an OEM replacement harness to maintain secure electrical connections and transmit control signals between system components. The harness is compatible with multiple RBHK and RBHL model variants and is intended for installation by licensed HVAC technicians.

• Converts a 16-pin connector to a 15-pin connector for Rheem/Ruud HVAC systems
• OEM factory new replacement wiring harness
• Compatible with multiple RBHK and RBHL model variants; weight approximately 0.9 lb; intended for licensed HVAC technician installation

Product Highlights

OEM 16-pin to 15-pin wiring harness; compatible with RBHK and RBHL models; approx. 0.9 lb

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 45-24258-09

Technical Specifications

• Brand: Rheem
• Manufacturer: Rheem
• MPN: 45-24258-09
• Part Number: 45-24258-09
• Product Type: Wiring harness
• Configuration: 16-pin to 15-pin
• Compatible Models: Multiple Rheem RBHK and RBHL variants (examples include RBHK-17J00NFA through RBHK-26J21SMV)
• Weight: 0.9 lb
• Condition: Factory new, OEM
• UPC: 662766256543
• SKU: 45-24258-09
• Alternate SKU: LSI7MAUOOI
• Installation: Intended for installation by licensed HVAC technicians only
