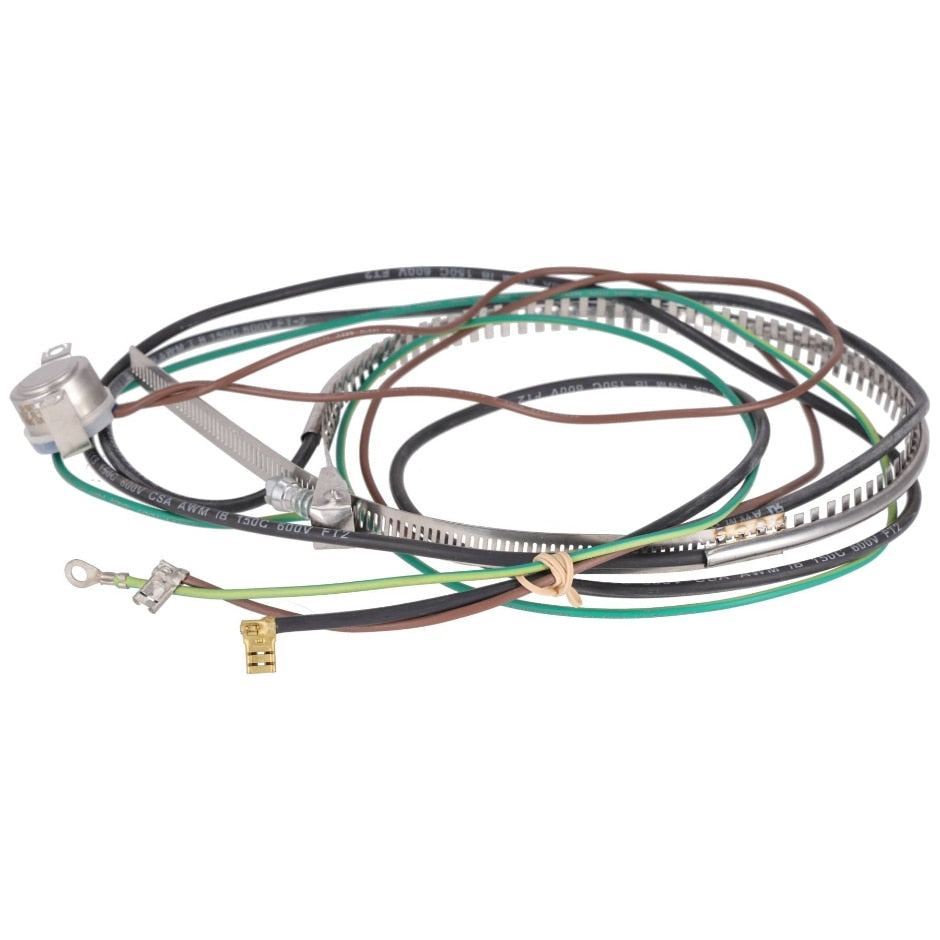

Rheem 44-101884-12 Belly Band Crankcase Heater With Temperature Limit Switch For Scroll Compressors

Product Description

The Rheem 44-101884-12 is a belly band crankcase heater designed for scroll compressors. This heater helps maintain the optimal temperature for the compressor, ensuring efficient operation. The built-in temperature limit switch opens at seventy-four degrees Fahrenheit and closes at sixty-four degrees Fahrenheit. This heater is equipped with a forty-eight inch ground wire and an eighteen AWG lead wire, making it suitable for various applications.

• Power: seventy watts
• Voltage: four hundred sixty volts
• Minimum and Maximum diameter: six and three-eighth inches to seven and five-eighth inches

Product Highlights

This heater is ideal for preventing refrigerant migration during periods of inactivity. Its design includes quick connect terminals for easy installation.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 056107
• Application: Scroll compressors

Technical Specifications

• Power: 70 watts
• Voltage: 460 volts
• Lead Wire Length: 48 inches
• Lead Wire Size (AWG): 18
• Lead Wire Terminations: 1/4 Quick Connects
• Ground Wire Length: 48 inches
• Ground Wire Type (AWG): 18
• Ground Terminal: #10 Ring Eyelet
