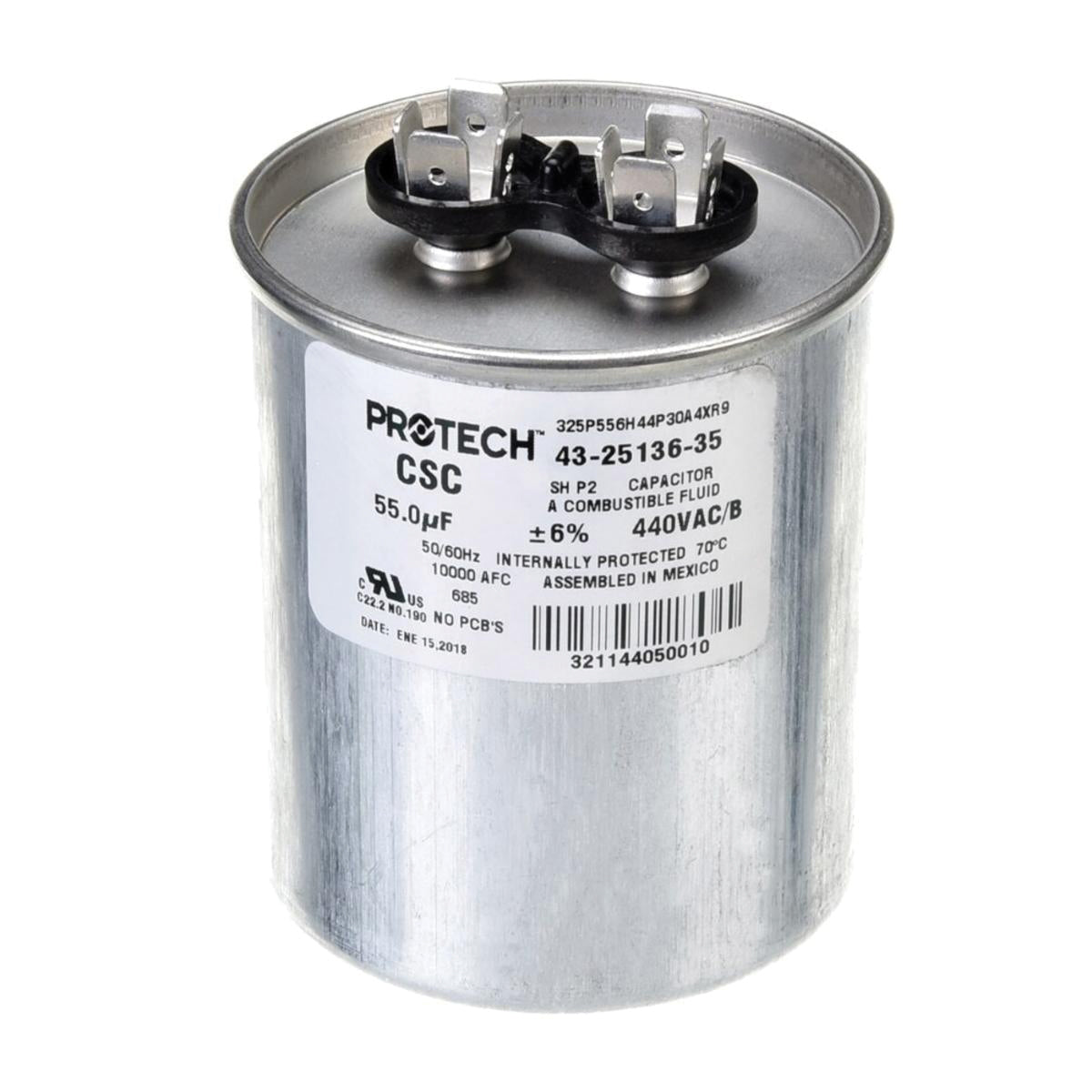

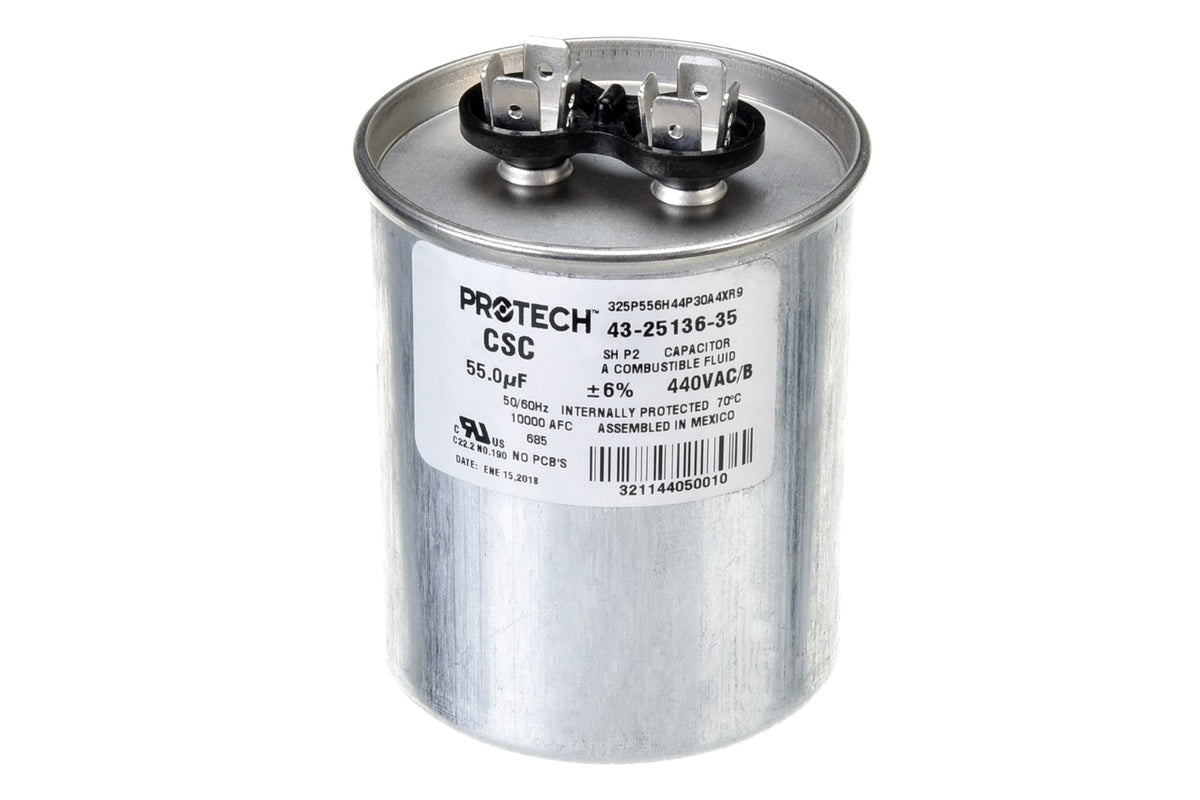

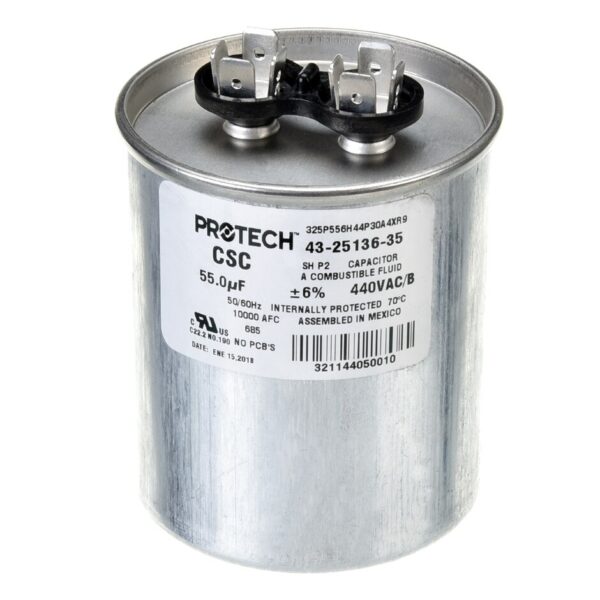

Rheem 43-25136-35 55 uF 440V Round Capacitor

Product Description

The Rheem 43-25136-35 is a reliable round capacitor used in HVAC systems. It is designed to store electrical energy for the effective operation of motors and compressors. This capacitor features a capacitance of fifty-five microfarads and operates at a voltage of four hundred forty VAC. It is built for compatibility with standard housing formats, enhancing the regulation of electrical flow for optimal HVAC performance.

• Capacitance of 55 uF.
• Voltage rating of 440 VAC.
• Round shape for easy installation.

Product Highlights

This capacitor supports effective motor operation and improves the overall efficiency of HVAC systems.

Product Information

Standard Information

• Brand: Rheem
• MPN: 43-25136-35

Technical Specifications

• Type: Single
• MFD Rating: 55 µF
• Voltage Rating: 440 VAC
• Shape: Round
• Case Height: 3.94 inches
• Case Material: Metal
• Frequency: 50/60 Hz
• Diameter: 2.62 inches
• Width: 2.5 inches
• Standard: UL 810 Listed
