Product Description

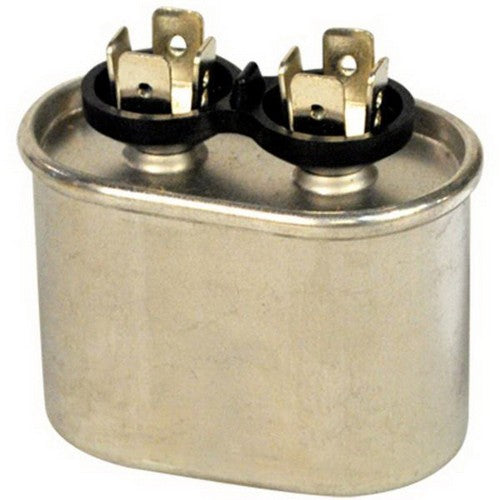

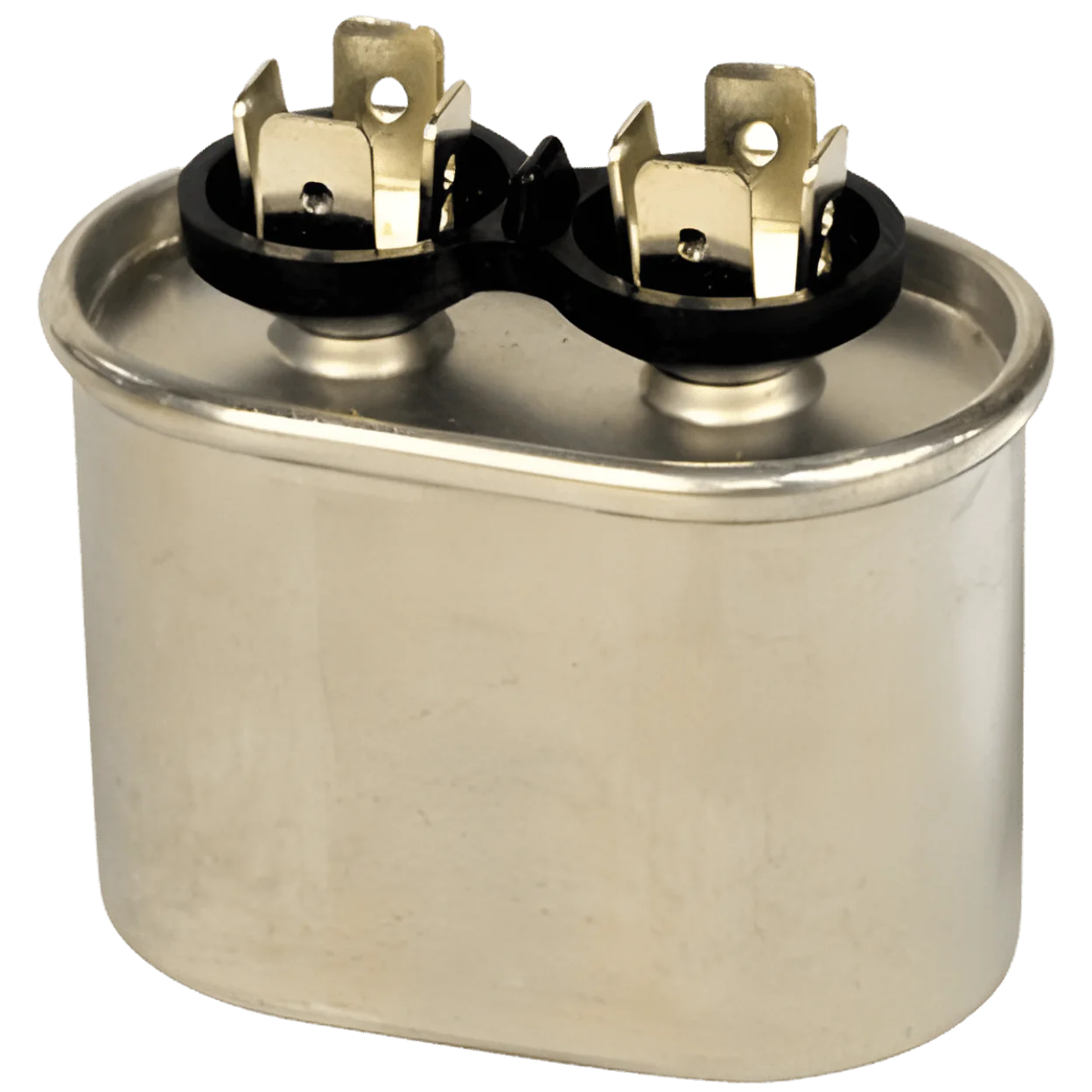

The Rheem 43-25134-23 is a Protech Single Oval Capacitor that operates at a capacitance of fifteen MFD and a voltage rating of four hundred forty VAC. This capacitor features a one-quarter inch quick connect terminal and is designed for use in HVAC systems. It adheres to UL 810 standards for safety and reliability. The compact dimensions of two point one six inches in width, four point seven five inches in height, and one point three one inches in depth make it suitable for tight spaces.
- Single oval capacitor type
- Capacitance: 15 MFD
- Voltage: 440VAC
Product Highlights
This capacitor is vital for improving energy efficiency in HVAC applications and ensuring optimal performance of your air conditioning or heating units.
Product Information
Standard Information
-
Brand: Rheem Parts
-
Part Number: RH432513423
Technical Specifications
-
Type: Single
-
Shape: Oval
-
Capacitance Range: 15 MFD
-
Voltage Rating: 440VAC
-
Terminal: 1/4 inch Quick Connect
-
Outside Diameter: 2.160 inches
-
Overall Height: 4.750 inches
-
Overall Depth: 1.310 inches
