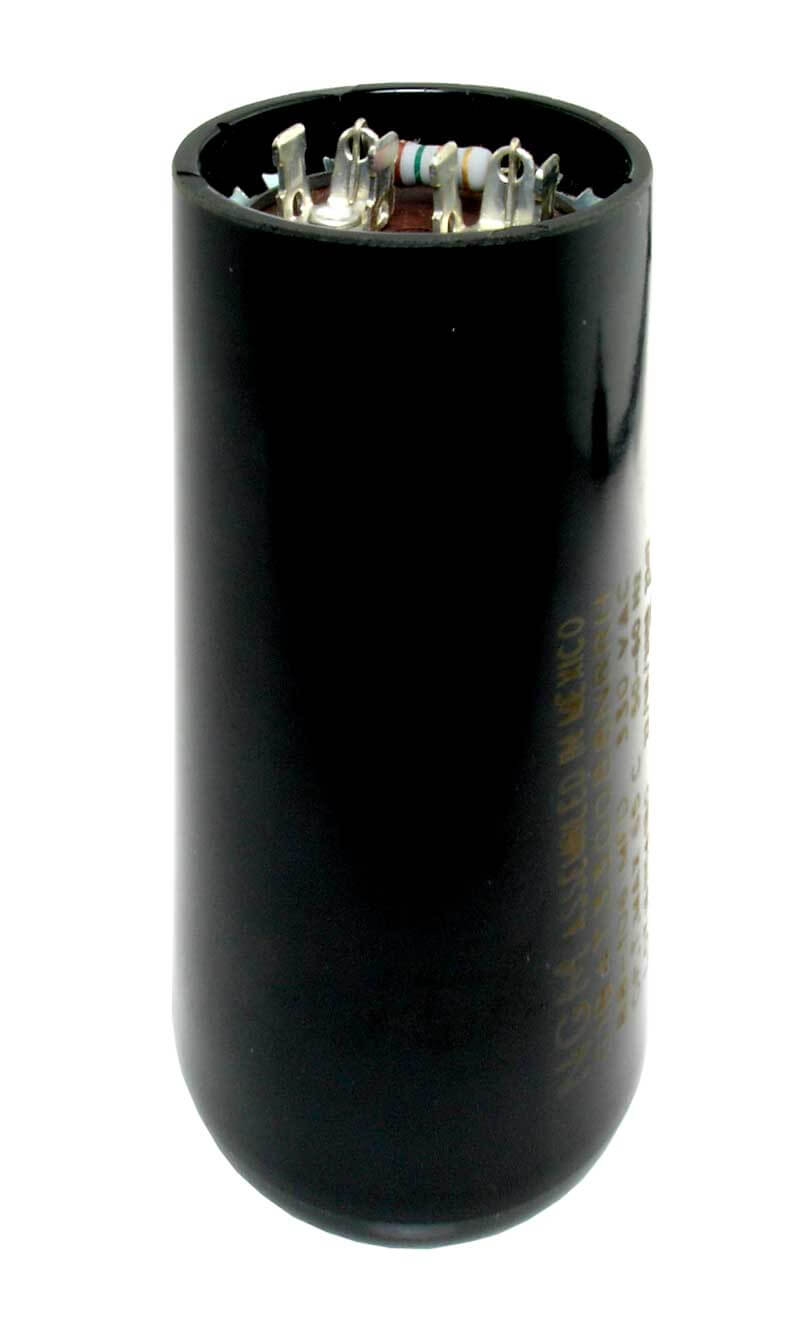

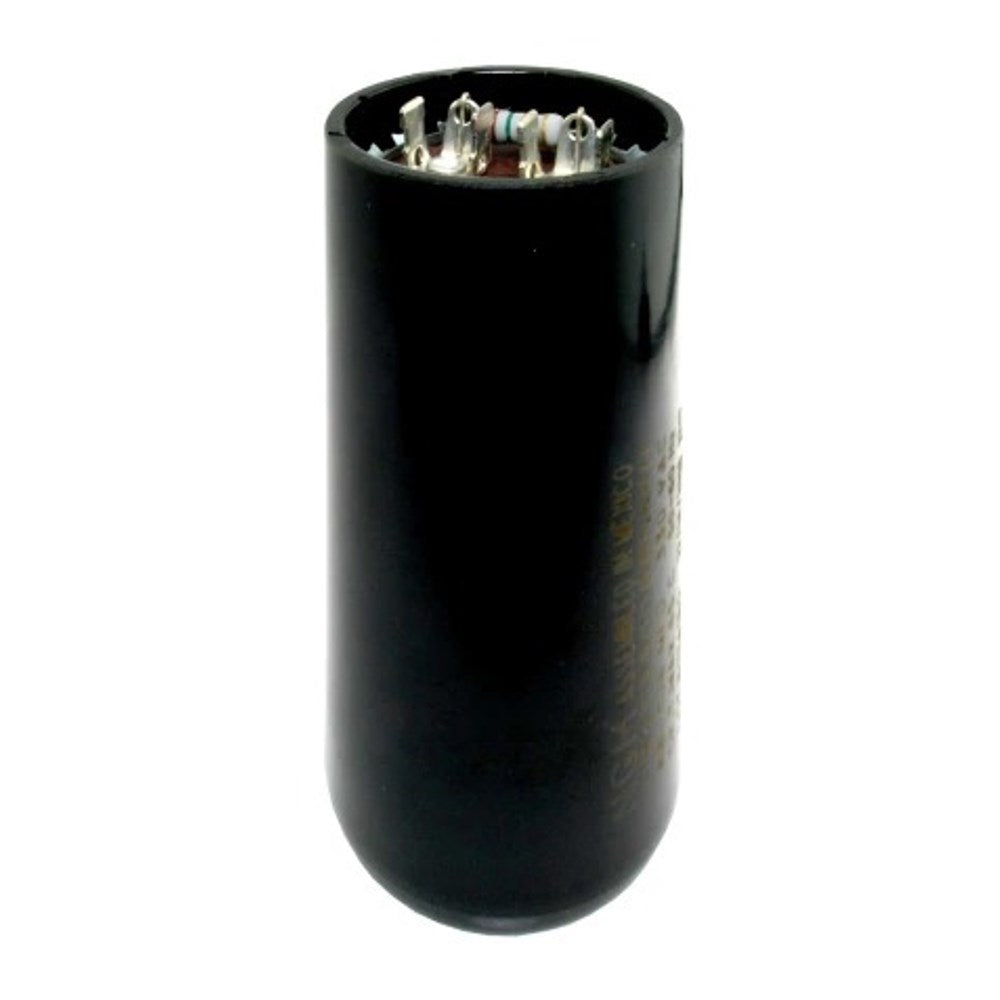

Rheem 43-17075-06 Start Capacitor 233-280 uF 330 VAC (1 Pack) 43-100576-06

Product Description

Rheem 43-17075-06 is a start capacitor for HVAC and motor-start applications, rated 233-280 uF with a 330 VAC rating. It provides the starting torque pulse required for AC motors and is configured with 1/4 inch quick connect terminals and a phenolic case. The unit includes a 15 ohm bleed resistor and is listed with safety approvals for use in compatible Rheem and Ruud equipment.

• Capacitance: 233-280 uF; Rated voltage: 330 VAC; Capacitor code 5
• 1/4 in. quick connect terminals, phenolic case, 15 ohm bleed resistor
• Approvals: UL and CSA; operating temperature -40°C to 70°C; includes patented PSI interrupter

Product Highlights

OEM Rheem start capacitor 43-17075-06 for motor starting, 233-280 uF at 330 VAC, 1/4 in. quick connects, UL/CSA approved.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 43-17075-06
• Country of Origin: US

Technical Specifications

• Brand: Rheem
• MPN: 43-17075-06
• Product Type: Start Capacitor
• Capacitance (uF): 233-280
• Rated Voltage (VAC): 330
• Capacitor Code: 5
• Connections: 1/4 in. Quick Connects
• Case Material: Phenolic
• Bleed Resistor: 15 ohm
• Interruptor: Patented Pressure Sensitive Interrupter (PSI)
• Certifications: UL, CSA
• Operating Temperature: -40°C to 70°C
• Dimensions (manufacturer): Diameter 2.56 in. x Length 4.38 in.
• Weight (manufacturer): 0.225 kg
• Country Of Origin: US
• Replaces: 43-100576-06
• UPC: 662766052602
• GTIN / EAN: 0662766052602
• Package Quantity: 1
