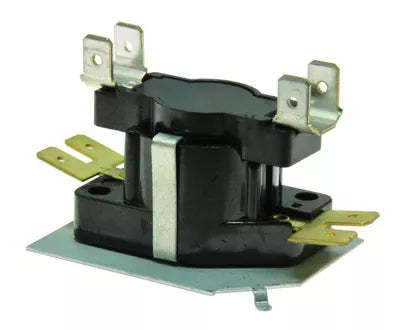

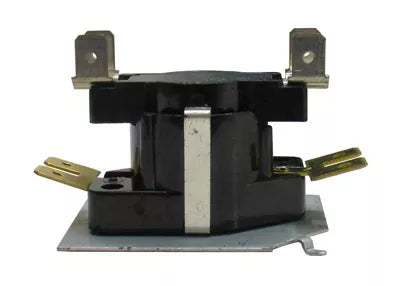

Rheem 425077a Sequencing Relay

Product Description

The RHEEM 425077a is a sequencing relay used in electric heating systems to stage the activation of heating elements in a controlled sequence. By staggering element startup, the relay prevents large simultaneous current draws that would otherwise trip breakers or overload electrical circuits. It is a direct component in the control circuit of electric furnaces and air handlers, and is typically installed or replaced by a licensed HVAC technician during routine maintenance or system troubleshooting.

Sequencing relays are a standard component in residential electric forced-air heating systems. The 425077a fits within the electrical control assembly of an electric furnace or air handler where multiple heating elements must be staged on and off in sequence. Technicians encounter this part when diagnosing no-heat calls, partial heating output, or tripped breakers tied to uncontrolled simultaneous element startup.

Key Features

• Stages heating element activation to limit peak current draw
• Designed as a direct OEM-style replacement component
• Sold individually (each)
• Compatible with electric furnace and air handler control circuits

Compatibility

Designed as an OEM-style replacement sequencing relay for residential electric furnaces and air handlers requiring staged heating element control.

Installation Notes

Installation and replacement of sequencing relays should be performed by a licensed HVAC technician. Shut off all electrical power to the air handler or electric furnace at the disconnect and confirm with a meter before beginning work. Handle relay terminals carefully to avoid bending or damaging contact points. Work must comply with applicable NEC requirements for low-voltage and line-voltage control wiring in heating equipment.

Technical Specifications

• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 425077a
