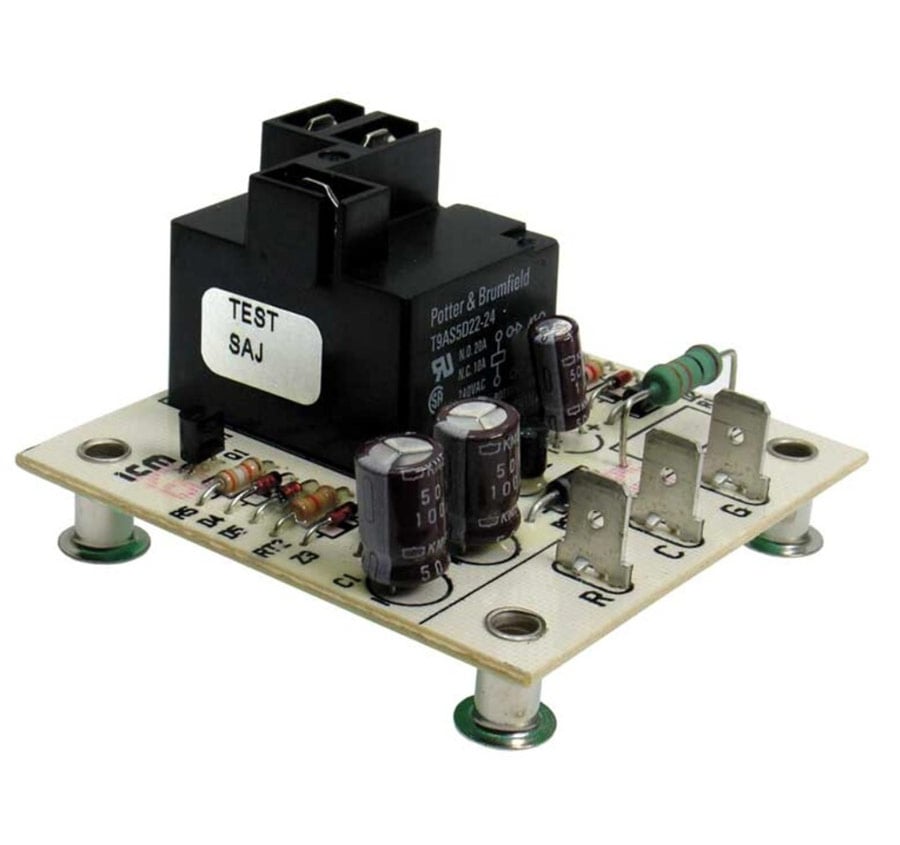

Rheem 42-ICM255 Fan Time Delay Relay Board

Product Description

The Rheem 42-ICM255 Fan Time Delay Relay Board is a component designed to prevent short cycling in compressors and related equipment. This board effectively protects equipment by introducing a delay period after a power application or control switch operation. The load will activate upon power application and will turn off when the control switch is opened or when power is lost. The board features an automatic restart capability after the set delay period.

• Prevents rapid cycling of compressors.
• Initiates a delay period for load de-energization during power loss.
• Operates within a voltage range of eighteen to thirty VAC.

Product Highlights

This is a factory OEM repair part, ensuring compatibility with Rheem products.

Product Information

Standard Information

• Brand: Rheem
• Item ID: 42-ICM255

Technical Specifications

• Voltage: 18-30 VAC
• Contact Ratings: N.O.: 20 amps @ 240 VAC; N.C.: 10 amps @ 240 VAC
• Time Delays: ON: 1 second; OFF: 60 seconds
• Warranty: Must be installed by a licensed technician
• Condition: Brand New
