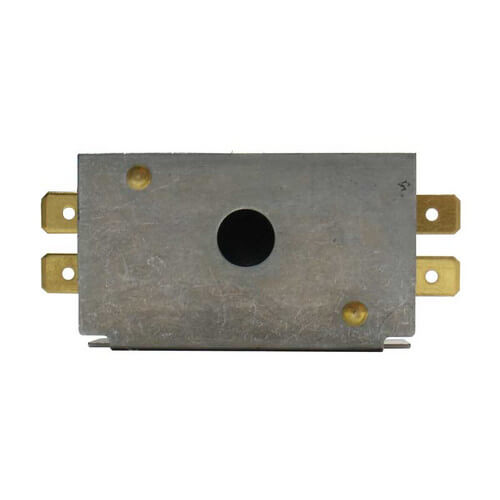

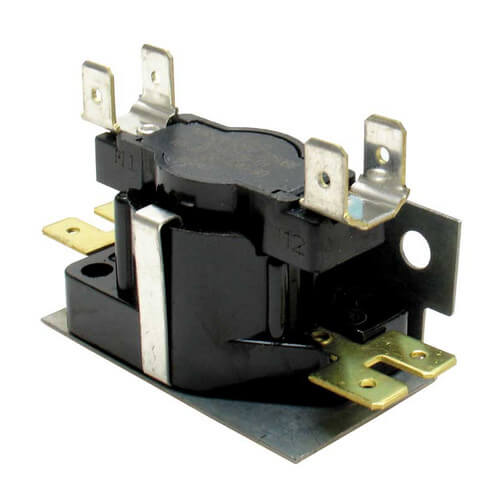

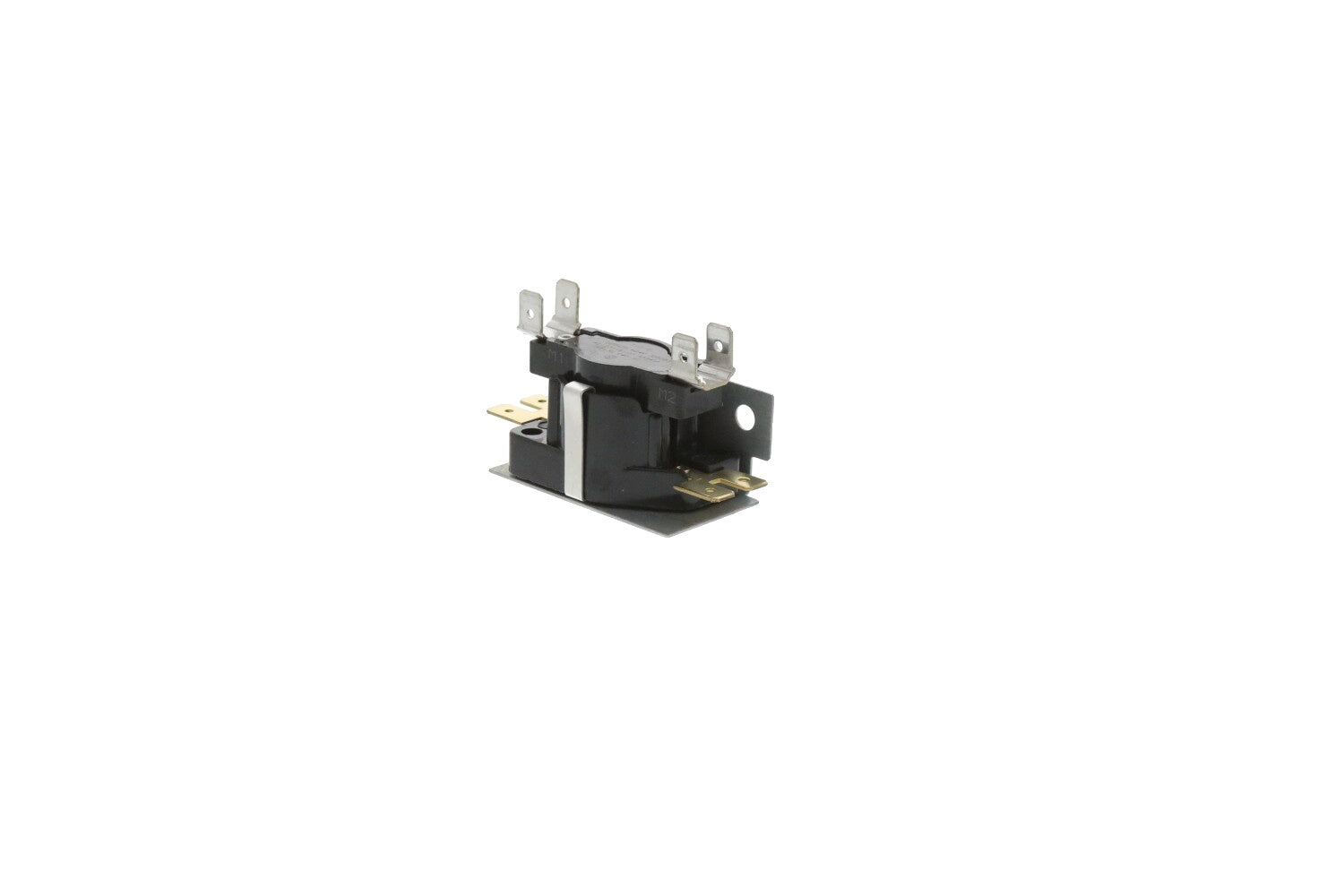

Rheem 42-23116-01 24V SPST-N/O Sequencing Relay

Product Description

The Rheem 42-23116-01 is a 24V SPST-N/O Sequencing Relay designed to provide reliable performance in industrial and commercial applications. This versatile electrical component is crafted for precise switching within electrical systems, essential for automation and control circuits.

• Durable construction for long-term reliability
• Compact size for easier installation and maintenance
• Direct control of high-voltage circuits using low-voltage signals

Product Highlights

This sequencing relay features a single pole single throw normally open contact configuration, allowing it to manage high-voltage tasks efficiently. Capable of handling loads up to 25 amps at 120V, it ensures safe and efficient operation.

Product Information

Standard Information

• Mounting: Angle bracket with two mounting holes
• Rated Voltage: 24V AC
• Contact Configuration: SPST-N/O

Technical Specifications

• Motor Full Load Amps at 120V: 14 A
• Motor Locked Rotor Amps at 120V: 72 A
• Pilot Duty Rating at 120V: 125 VA
• Resistive Rating at 120V: 25 A
• Motor Full Load Amps at 230V: 7 A
• Motor Locked Rotor Amps at 230V: 42 A
• Pilot Duty Rating at 230V: 125 VA
• Resistive Rating at 230V: 25 A
• Motor Full Load Amps at 460V: 3 A
• Motor Locked Rotor Amps at 460V: 18 A
• Pilot Duty Rating at 460V: 125 VA
• Resistive Rating at 460V: 12.5 A
