RHEEM 3583 HVAC Blower Motor Power 1/4 Horsepower

Product Description

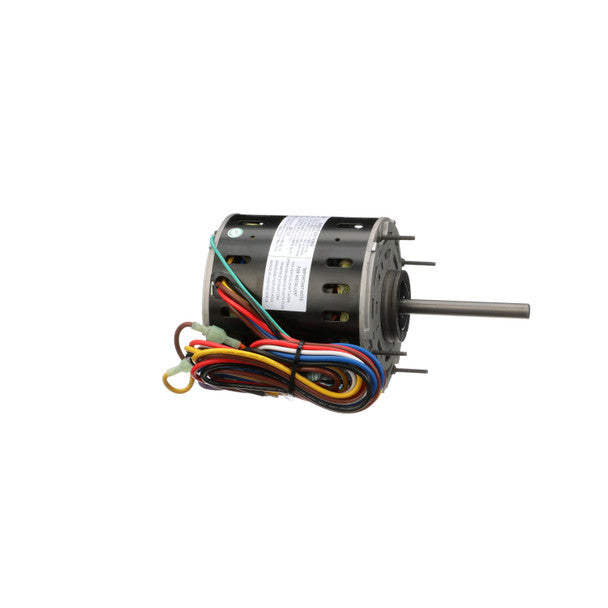

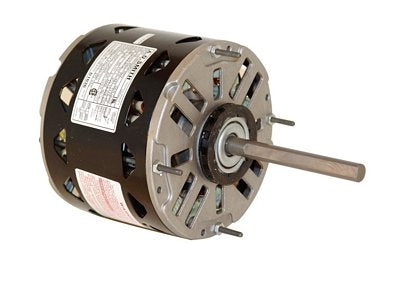

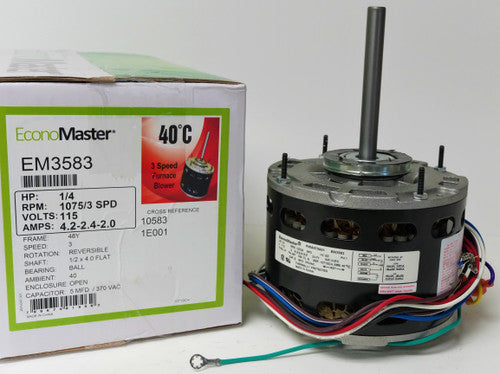

The Rheem 3583 is a blower motor suitable for HVAC applications including air handlers and furnaces. This unit operates at one hundred fifteen volts and is designed with a permanent split capacitor (PSC) for efficiency. It offers selection among three speeds and allows for reversible rotation. The motor measures five and five-eighths inches in diameter and features a shaft size of one-half inch by four inches.

• Direct drive blower motor for HVAC systems.
• Operates at 115V with a PSC design and three speeds.
• Features reversible rotation and sleeve bearing.

Product Highlights

Product Information

Standard Information

• Brand: Rheem
• MPN: 3583

Technical Specifications

• Manufacturer Part Number: 3583
• Motor Type: PSC (Permanent Split Capacitor)
• Horsepower: 1/4
• Input Voltage: 115 V
• RPM: 1075
• Number of Speeds: 3
• Current: 4.2 A, 2.4 A, 2.0 A
• Enclosure: Open Vent
• Rotation: Reversible
• Bearing Type: Sleeve
• Shaft Dimensions: 0.5 inches x 4.0 inches
• Diameter: 5.625 inches
• Power Frequency: 50/60 Hz
• Power Phase: 1
• Motor Speed Type: Multi Speed PSC
• Unit Depth: 14.9 inches
• Unit Width: 6.6 inches
• Unit Height: 7.4 inches
• Weight: 11.42 lbs
