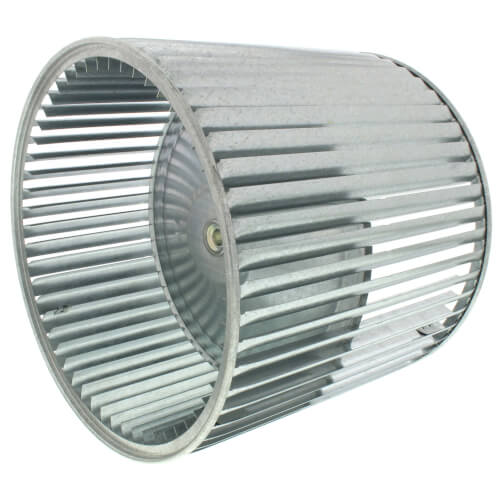

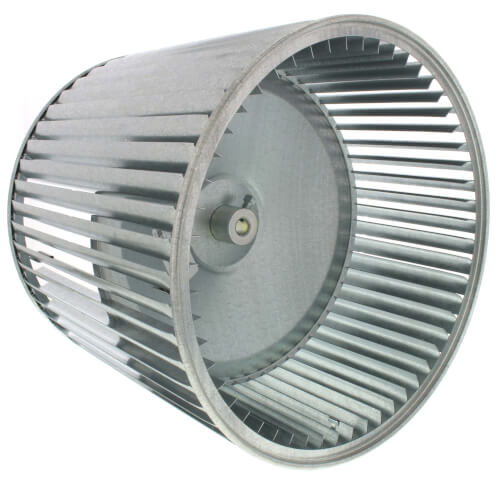

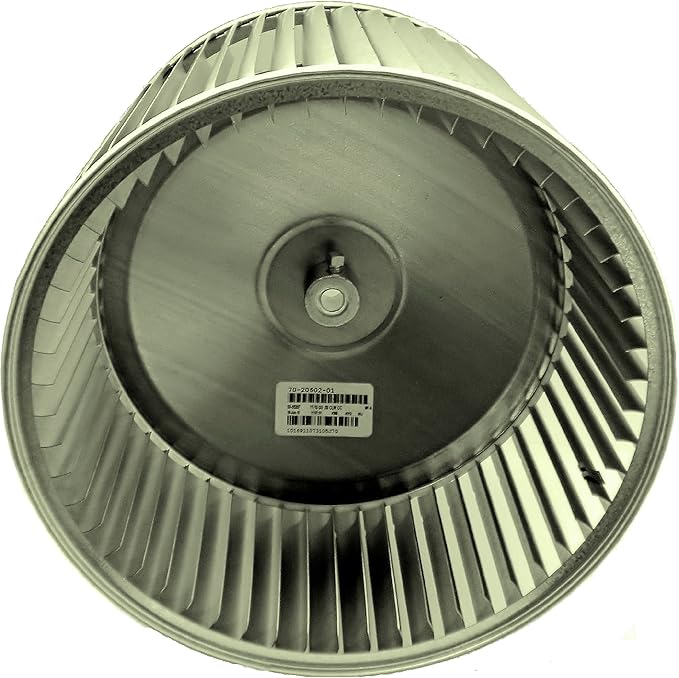

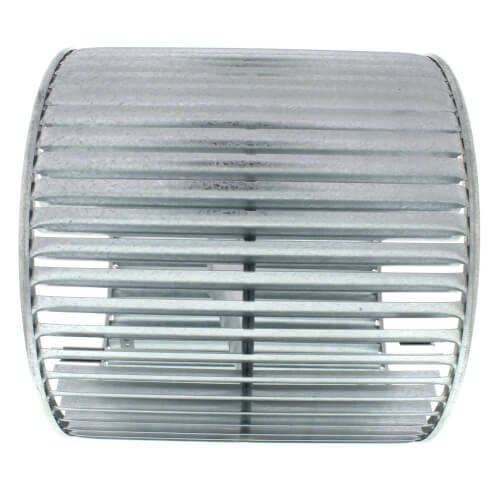

Rheem 20602-01K Blower Wheel 11-7/8 inches Diameter x 10-11/16 inches Wide

Product Description

The RHEEM 20602-01K blower wheel is 11-7/8" in diameter and 10-11/16" wide. This direct drive blower wheel features a 1/2" bore and a CW rotation. It has a concave, double inlet design. It is suitable for use with Rheem R801P-ZSA, ZSB, R801S-ZSA, ZSB, R802P-ZSA, ZSB, RGDG, RGDJ, RGLG, RGLH, RGLJ, RGLK, RGLN, RGLQ, RGPH, RGPJ, RGPK, RGPN, RGPP, RGPQ, RGRA, RGRJ, RGRK, RGSA, RGTA, RGTJ, RGTK, RGVG, RGVH, RGVJ, ROBD, ROBF, ROPD and ROPF Gas Furnaces.

• 11" x 10"
• Rotation direction (facing hub): CW
• Disc shape (hub side): Concave

Product Highlights

This blower wheel is designed for use in various Rheem gas furnaces. It features a concave disc shape and CW rotation.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 20602-01K

Technical Specifications

• Overall Diameter Dim. D (in.): 11-7/8
• Overall Width Dim. W (in.): 10-11/16
• Nominal Size (in.): 11 x 10
• No. of Blades: 54
• Nominal Hub Bore Shaft Size Dim. E (in.): 1/2
• No. Set Screws: 1
• Outside Edge of Disc to Outside End of Hub Dim. A (in.): 1/8
• Hub Length Dim. B (in.): 1-1/4
• Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 5-3/8
• Keyway (in.): None
• Rotation Direction (Facing Hub): CW
• Disc Shape (Hub side): Concave
• Manufacturer: Protech
• Part Number: 70-20602-01
• Item Package Quantity: 1
• Included Components: Blower Wheel
• Blower wheel Type: single inlet
• For Use With: Rheem R801P-ZSA, ZSB, R801S-ZSA, ZSB, R802P-ZSA, ZSB, RGDG, RGDJ, RGLG, RGLH, RGLJ, RGLK, RGLN, RGLQ, RGPH, RGPJ, RGPK, RGPN, RGPP, RGPQ, RGRA, RGRJ, RGRK, RGSA, RGTA, RGTJ, RGTK, RGVG, RGVH, RGVJ, ROBD, ROBF, ROPD and ROPF Gas Furnaces
