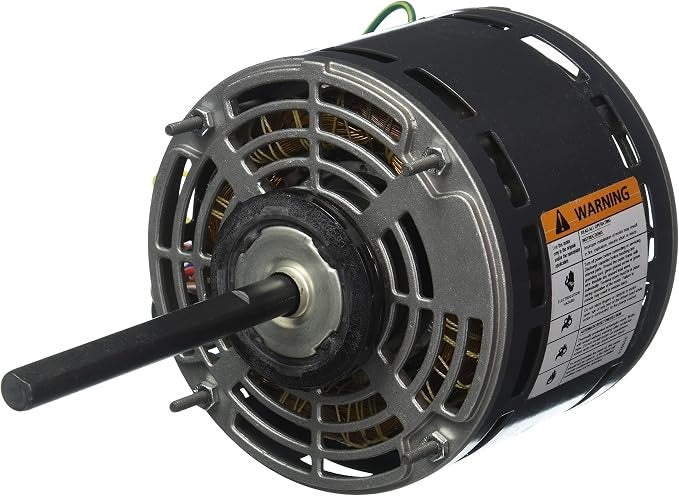

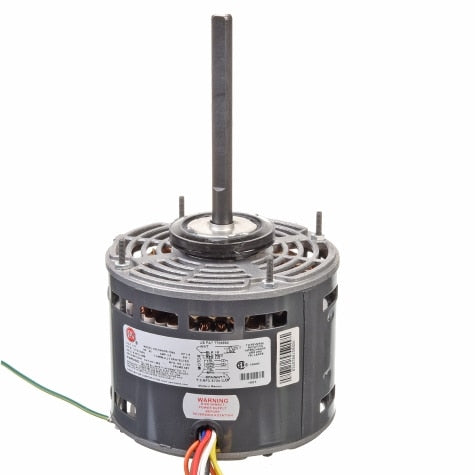

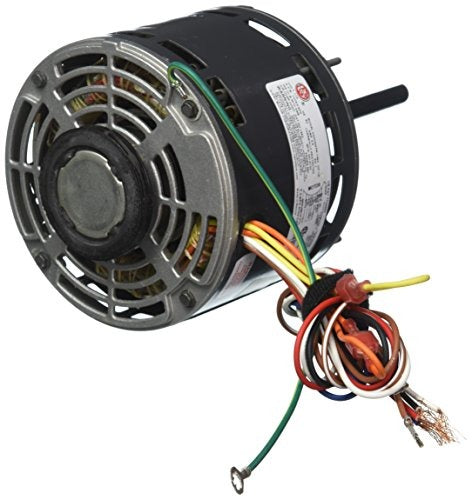

Rheem 1863 Blower Motor 1/4 Hp (1 Count) KA55HXSMT-12345

Product Description

Rheem 1863 is a 1/4 horsepower blower motor for HVAC blower and furnace applications. It is a single-phase, direct-drive motor rated for 120 V, 60 Hz operation with reversible rotation and three-speed operation (high 1075 rpm, medium 1000 rpm, low 900 rpm). The motor uses sleeve bearings with an all-angle thrust system, Class B insulation, and requires a 5 uF/370 V run capacitor; it includes automatic-reset thermal overload protection.

• 1/4 HP direct-drive blower motor; 120 V, 60 Hz, 1 phase; three speeds (1075 / 1000 / 900 rpm).
• Reversible rotation with sleeve bearings employing an all-angle thrust system and Class B insulation.
• Requires 5 uF / 370 V run capacitor; includes automatic-reset thermal overload protector; mounting by resilient ring, shell-band, or thru-bolt.

Product Highlights

Direct-drive 1/4 HP blower motor for HVAC with reversible, three-speed operation and 5 uF/370 V capacitor requirement.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 1863
• Country of Origin: United States
