Product Description

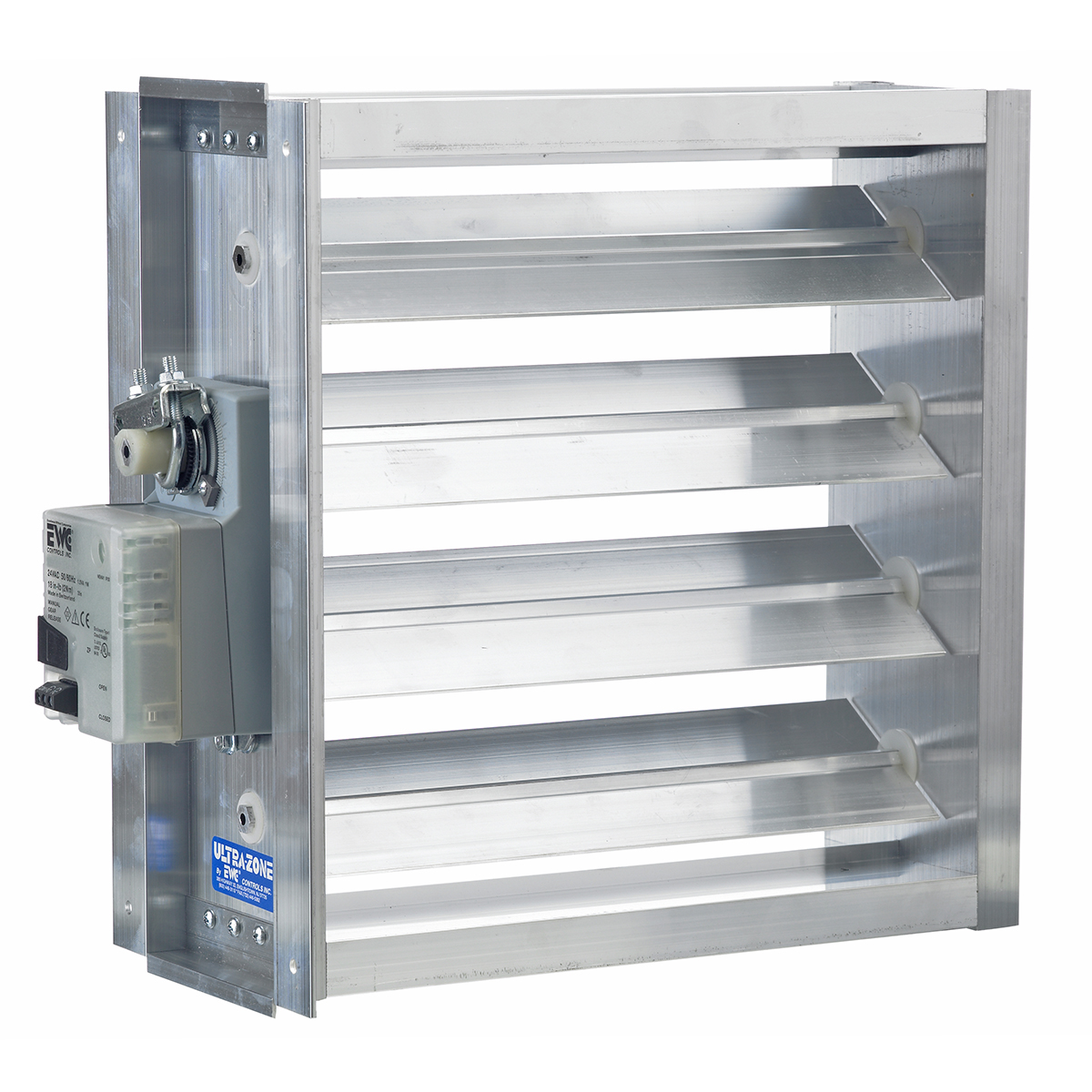

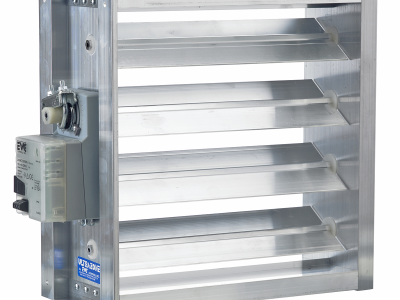

The Rheem 16X8ND is an automatic zone damper suitable for HVAC systems. It features power open and power close functions using a three-wire setup. The aluminum construction and overlapping blade design efficiently manage airflow in specific zones. This model is ideal for side mounting and operates on a twenty-four volt AC power supply.
- Power open and power close functionality
- Designed for side mount installation
- Operates on 24 VAC power
Product Highlights
This automatic zone damper is built for precise airflow control, enhancing system efficiency.
Product Information
Standard Information
-
Brand: Rheem
-
Country of Origin: USA
Technical Specifications
-
Mounting Type: Face plate
-
Damper Type: Zone
-
Height: 16 inches
-
Length: 8 inches
-
Weight: 5.8 lbs
-
Voltage: 24 VAC
-
Amps: 1.5
-
Composition: Aluminum
-
Cycle/Hertz: 50/60 Hz
-
Phase: Single
-
Shape: Rectangle
-
Size: 16 x 8 inches
-
Ambient Temperature Range: -20°F to 160°F (-28.89°C to 71.11°C)
-
Approvals: UL Listed; UL Recognized
-
Maximum Temperature: 185°F (85°C)
