Rheem 16926 Direct Drive Condenser Motor 1/6 HP 208-230V

RHEEM
Brand: RHEEM
SKU: 16926
Ships in 4 - 5 Weeks
$1,902.75
$1,902.75
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

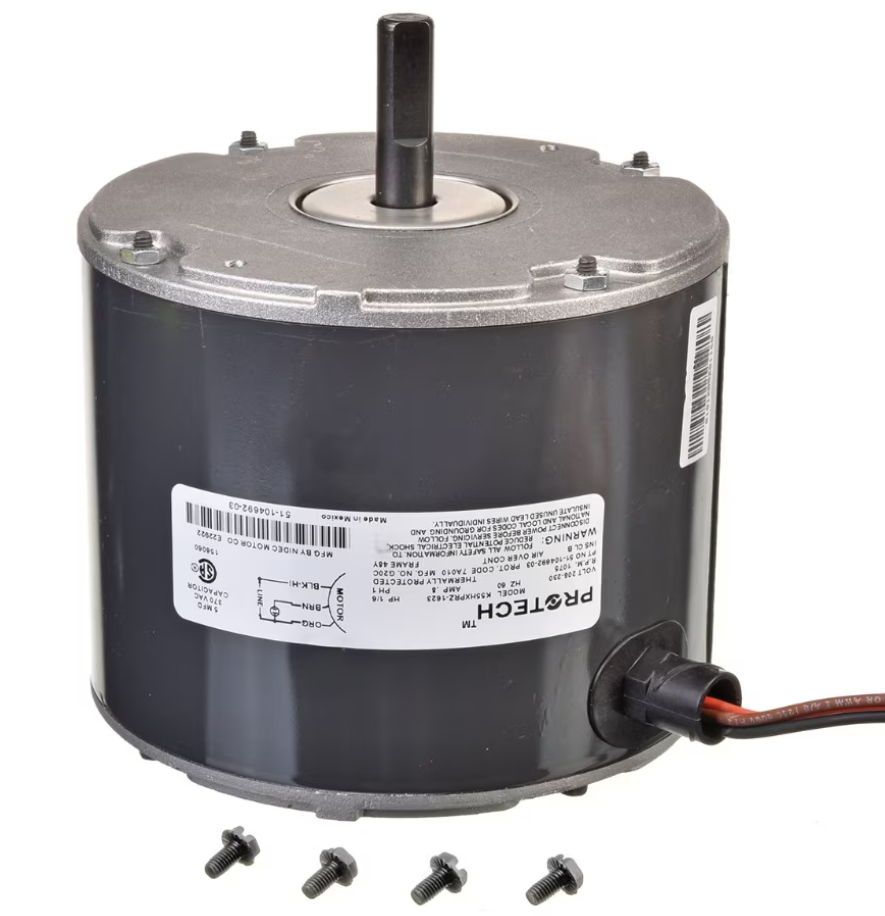

The Rheem 16926 is a direct drive condenser motor suitable for various condenser applications. It operates efficiently at 208-230V and 60 Hz, providing a power output of 1/6 HP while maintaining a speed of 1075 RPM. This motor supports both OSE and CCW rotation directions and requires a run capacitor rated at 5/370 uF/V. It comes in a 48 frame size and offers flexible mounting options, including end-boss and shell-band.

  • Designed for condenser applications.
  • Operates at 208-230V, 60 Hz.
  • Direct drive with a speed of 1075 RPM.

Product Highlights

Reliable performance with straightforward installation for HVAC professionals.

Product Information

Standard Information

  • Brand: Rheem
  • MPN: 16926
Technical Specifications
Application
Condenser
Drive Type
Direct Drive
HP Rating
1/6
Number Of Phases
1
RPM
1075
Rotation Direction
OSE, CCW
Run Capacitor
5/370 uF/V
Input Voltage
208-230 V
Frequency
60 Hz
FLA at 208V
0.80 A
FLA at 230V
0.80 A
LRA at 208V
1.40 A
LRA at 230V
1.40 A
Shaft Diameter
1/2 in
Shaft Length
1 19/32 in
Keyed/Flat Shaft Length
1 in
Overall Length
6 3/8 in
Bearing Type
Ball
Motor Body Diameter
5 5/8 in
Motor Body Length
4 1/2 in
Mounting Method
End-boss | Shell-band
Frame Size
48
