RHEEM 1460 Rheem Classic Series Air Conditioner RA1460 Cooling System

Product Description

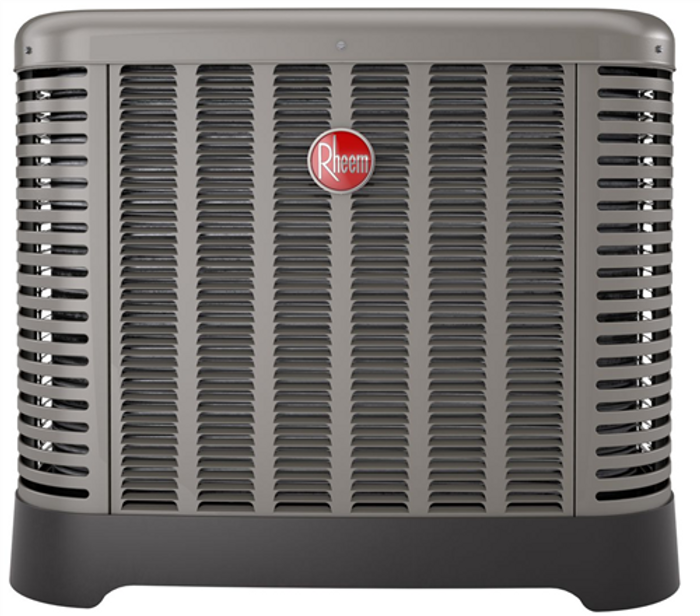

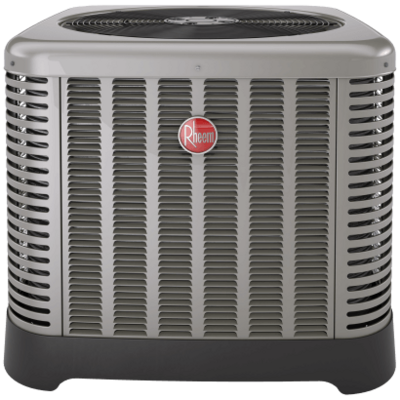

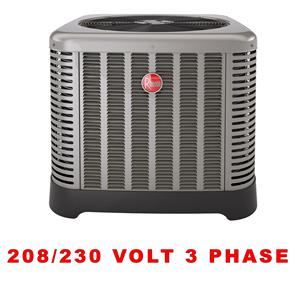

The Rheem RA1460 is an outdoor air conditioning condenser designed for effective cooling. This unit uses R-410A refrigerant and features a single-stage scroll compressor for reliable performance. Built with a composite base pan and curved louver panels, it protects the coils from damage while minimizing sound levels. The design allows easy access for maintenance and helps to reduce corrosion.

• Utilizes R-410A refrigerant
• Features a single-stage scroll compressor
• Curved louver panels for coil protection

Product Highlights

Product Information

Standard Information

• Brand: Rheem
• MPN: 1460

Technical Specifications

• Product Type: Condenser
• Operating Mode: Heat Pump
• Cooling Capacity: 60,000 BTU/H
• Tonnage: 5 tons
• SEER: 14
• Refrigerant Type: R-410A
• Input Voltage: 208-230 VAC
• Phase: Single
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 50 amps
• Compressor Type: Scroll
• Sound Level: 62.4-74.8 dBA
• Condenser Fan Motor HP: 1/3
• Condenser Fan Motor RPM: 795
• Condenser Fan Motor Speeds: 1
• Condenser Fan Motor Type: PSC
• Condenser Fan Blade Diameter: 26 in
• Condenser Fan Discharge: Vertical
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 7/8 inches
• Dimensions: Height: 45.375 inches, Width: 38.25 inches, Depth: 35.75 inches
• Weight: 240 lbs
• Stages Cooling: 1
• Approvals: UL Listed
