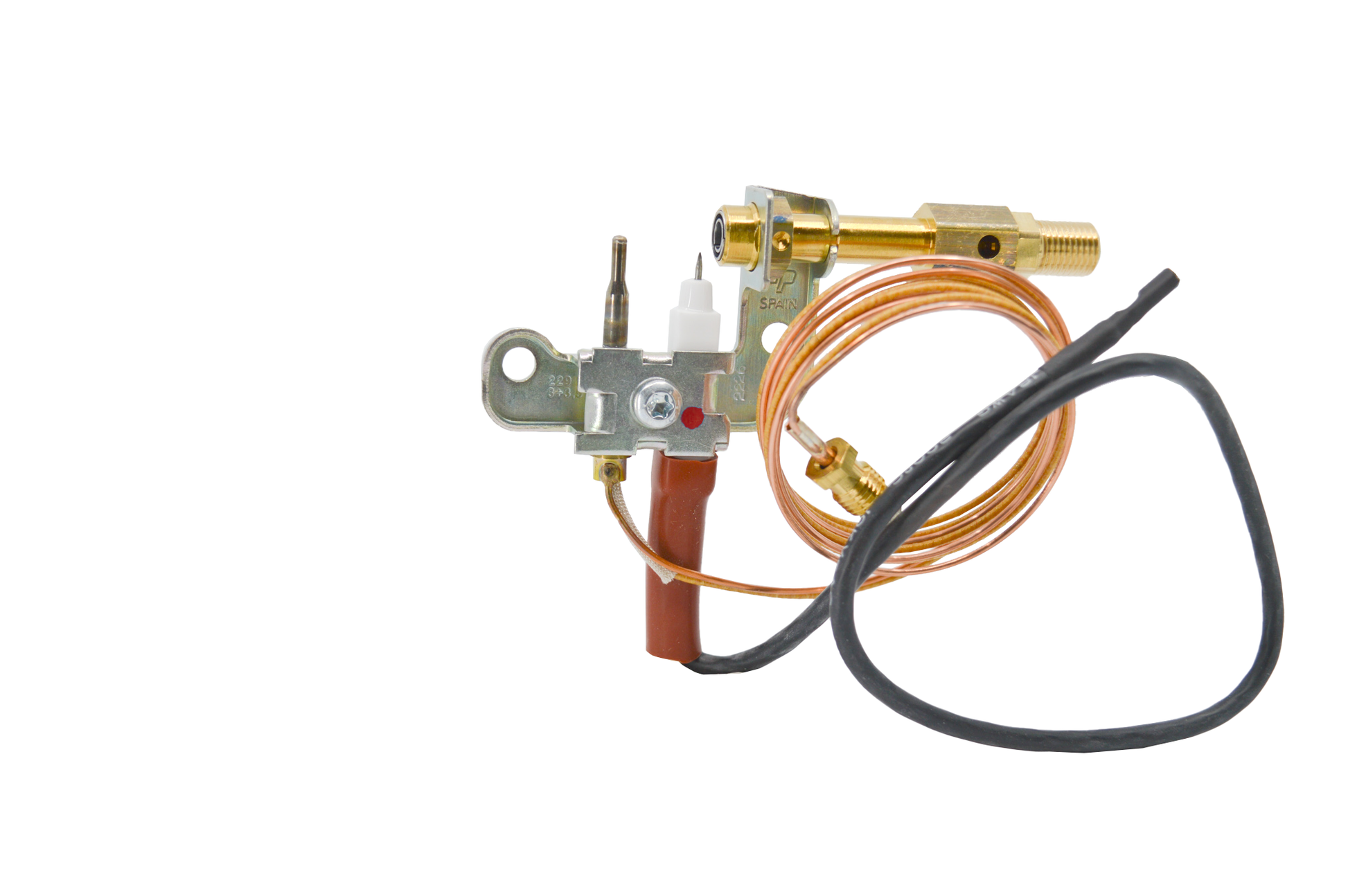

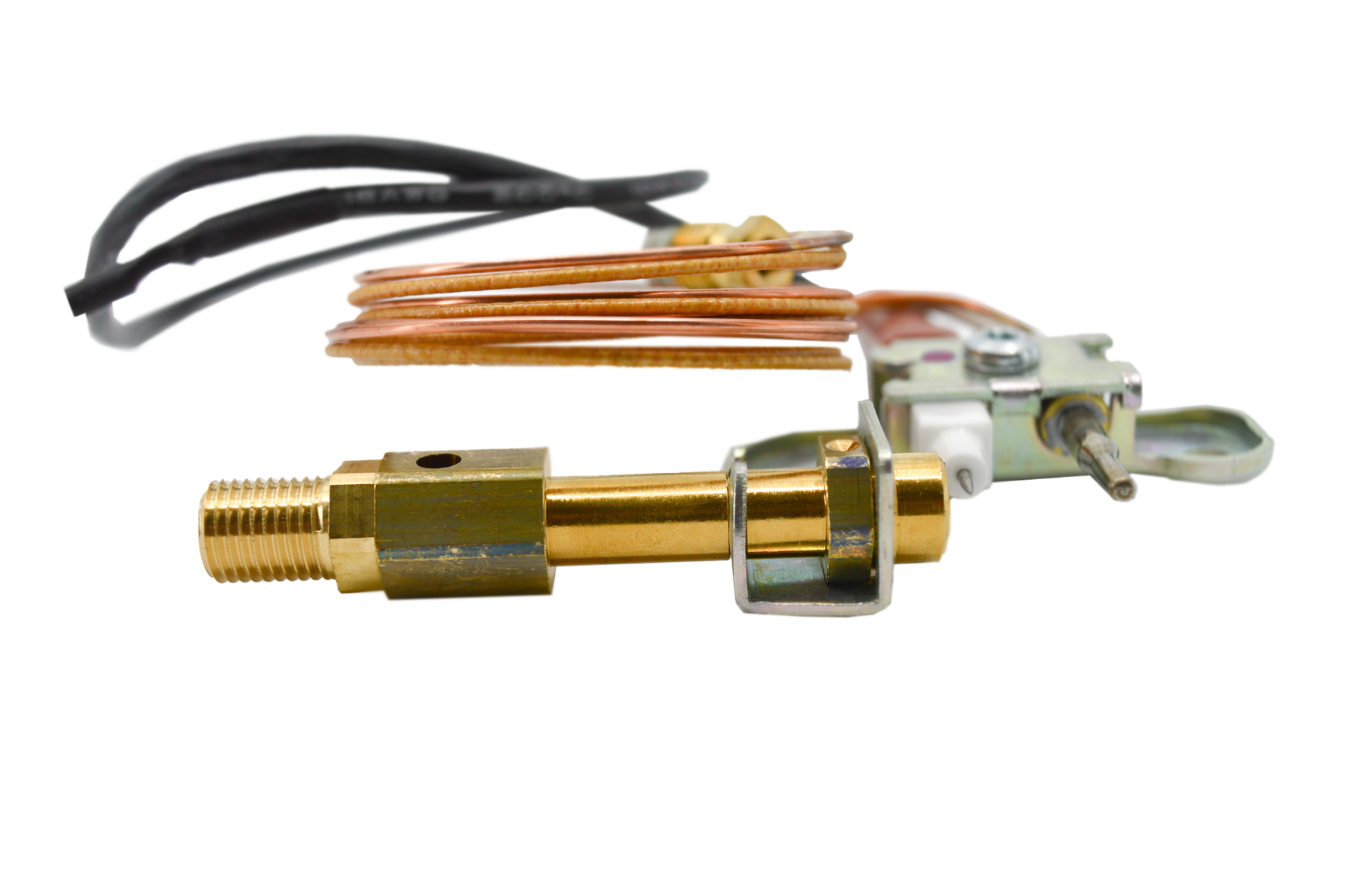

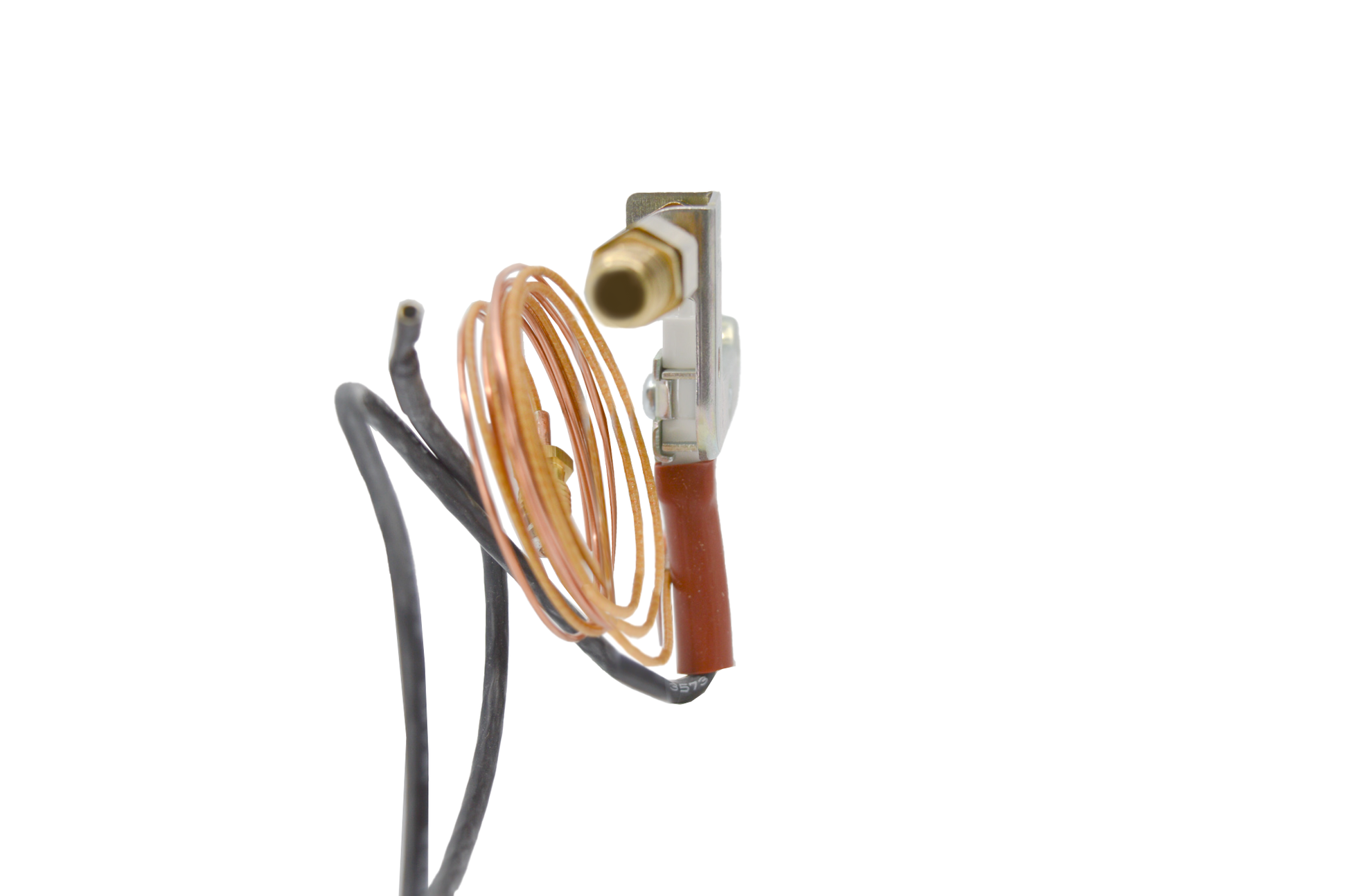

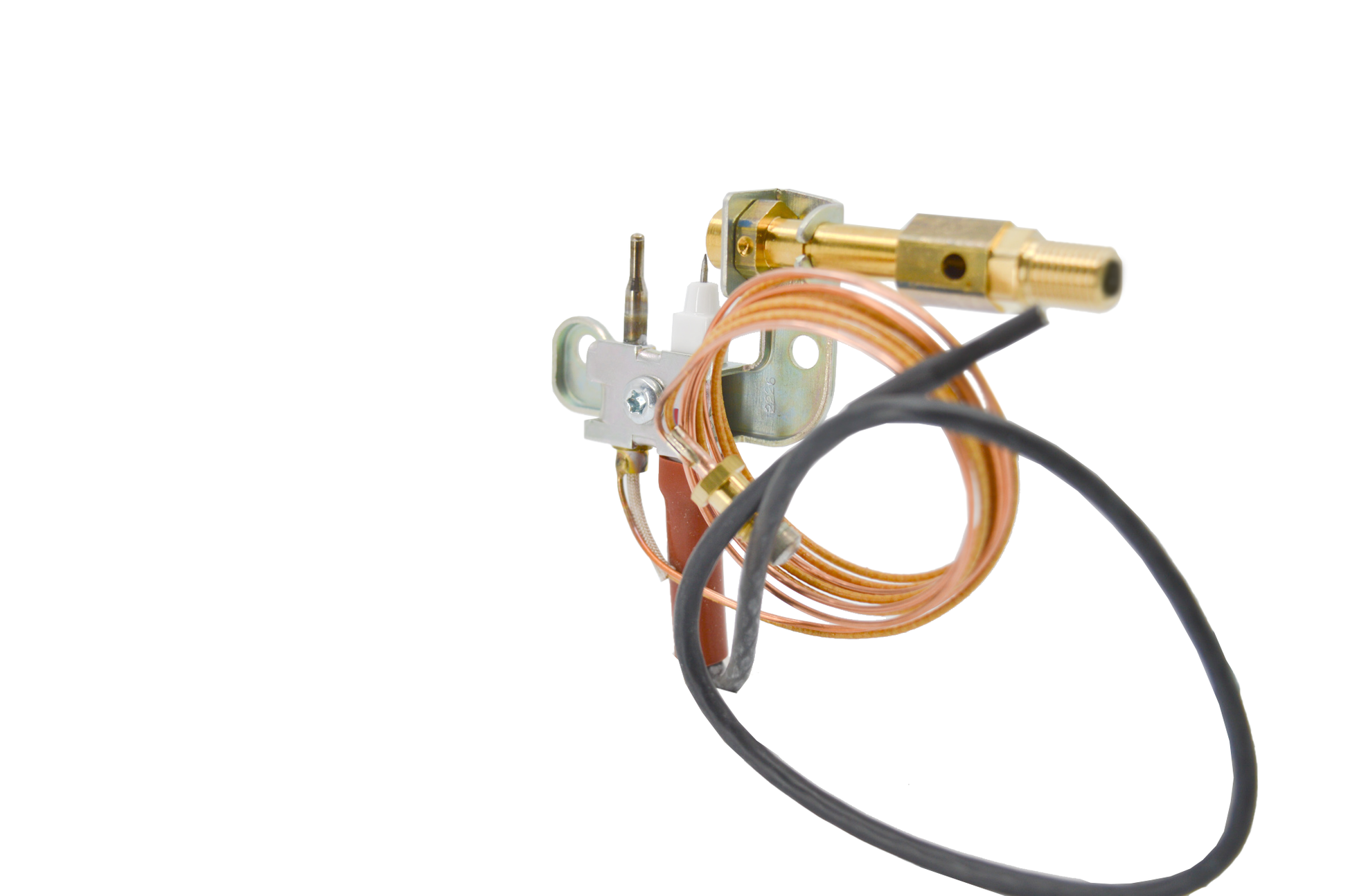

Rh Peterson ODS-0002 Pilot Assembly Oxygen Depletion Sensor (Propane)

Product Description

The RH PETERSON ODS-0002 Pilot Assembly is an original equipment replacement designed for select Real Fyre vent free burner systems. This assembly includes the integrated Oxygen Depletion Sensor and is engineered for reliable safety performance on propane-fueled vent free gas log burners. The built-in ODS automatically shuts down the burner if room oxygen levels fall below safe operating limits.

• OEM replacement pilot assembly with integrated Oxygen Depletion Sensor
• Designed for propane (LP) vent free burner applications
• Includes thermocouple, pilot burner, ignition lead and mounting components

Product Highlights

This OEM-grade pilot assembly includes a precision-matched thermocouple, pilot tube connection, and ignition lead designed to restore correct burner operation and flame stability.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: ODS-0002

Technical Specifications

• Part Number: ODS-0002
• Compatible Brands: Real Fyre
• Thermocouple length: approximately 32 inches
• Gas Connection: 3/8 24 UNF 2Ao5 mm

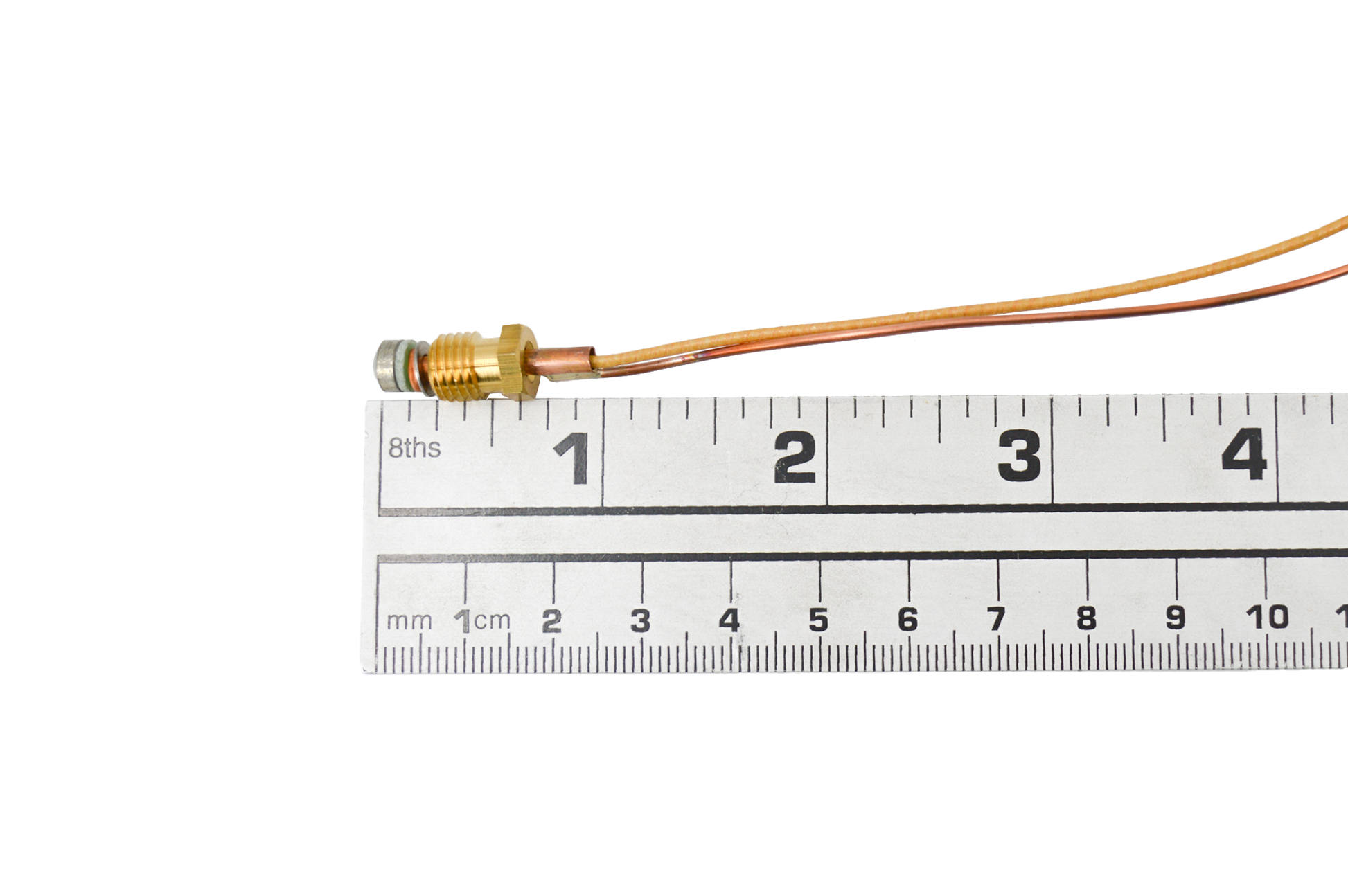

• Thermocouple connection nut: M8 x 1
• Piezo ignitor cable: 36 Inch long with R1-R2 cable ends
• Fuel Type: Propane
• Ignition Cable Length: 13.5"
