Rh Peterson Gx430p Real-fyre 30 inches Glowing Ember Vented Burner with Heavy Duty Grate and Safety Valve - Liquid Propane

Product Description

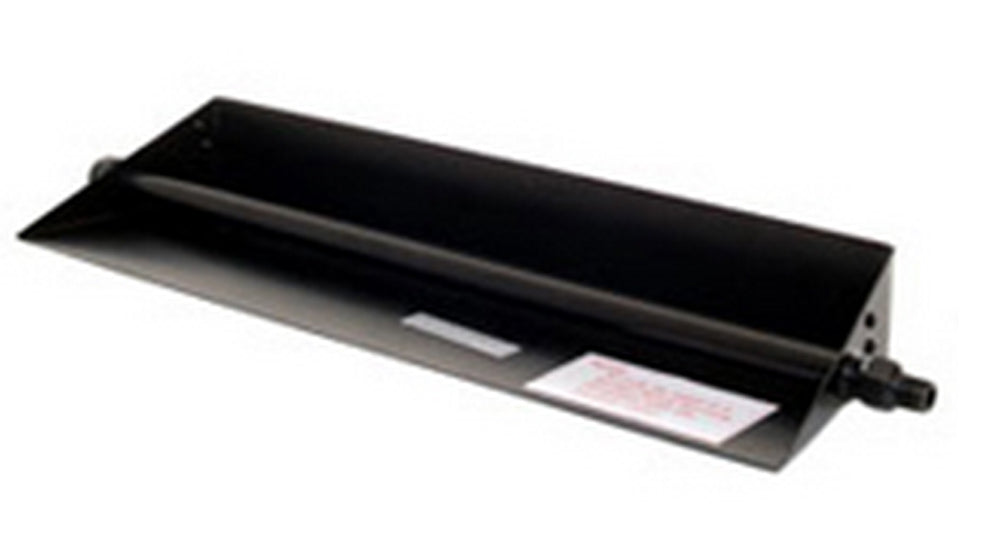

The RH PETERSON GX430P Real-Fyre is a glowing ember burner system with a single tube burner running through the center. This base model manual burner features flames that dance across the burner tube. It includes a burner pan, heavy-duty grate, glowing embers, vermiculite, burner clips, flex connector kit, damper clamp, and safety valve. Log set sold separately.

• GX4 burner is a glowing ember burner system
• Single tube burner that runs through the center
• Base model manual burner

Product Highlights

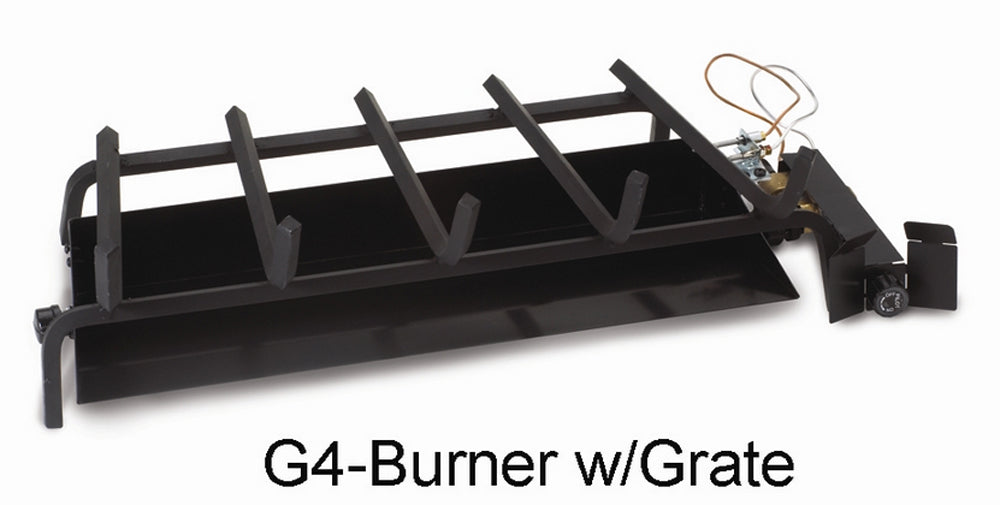

The Real-Fyre GX4 burner system is for 30" log sets and includes a heavy-duty grate. It features a safety valve and is approved for mobile home use.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: GX430P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Heavy Duty
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 30"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 65000
• Ignition Type: Manual (No Remote)
• Remote: Not Available
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Requirements for 30" Logs Req. Min. Front Width (in.): 40"
• Req. Min. Rear Width (in.): 34"
• Req. Min. Depth (in.): 14"
• Req. Min. Height (in.): 17"
