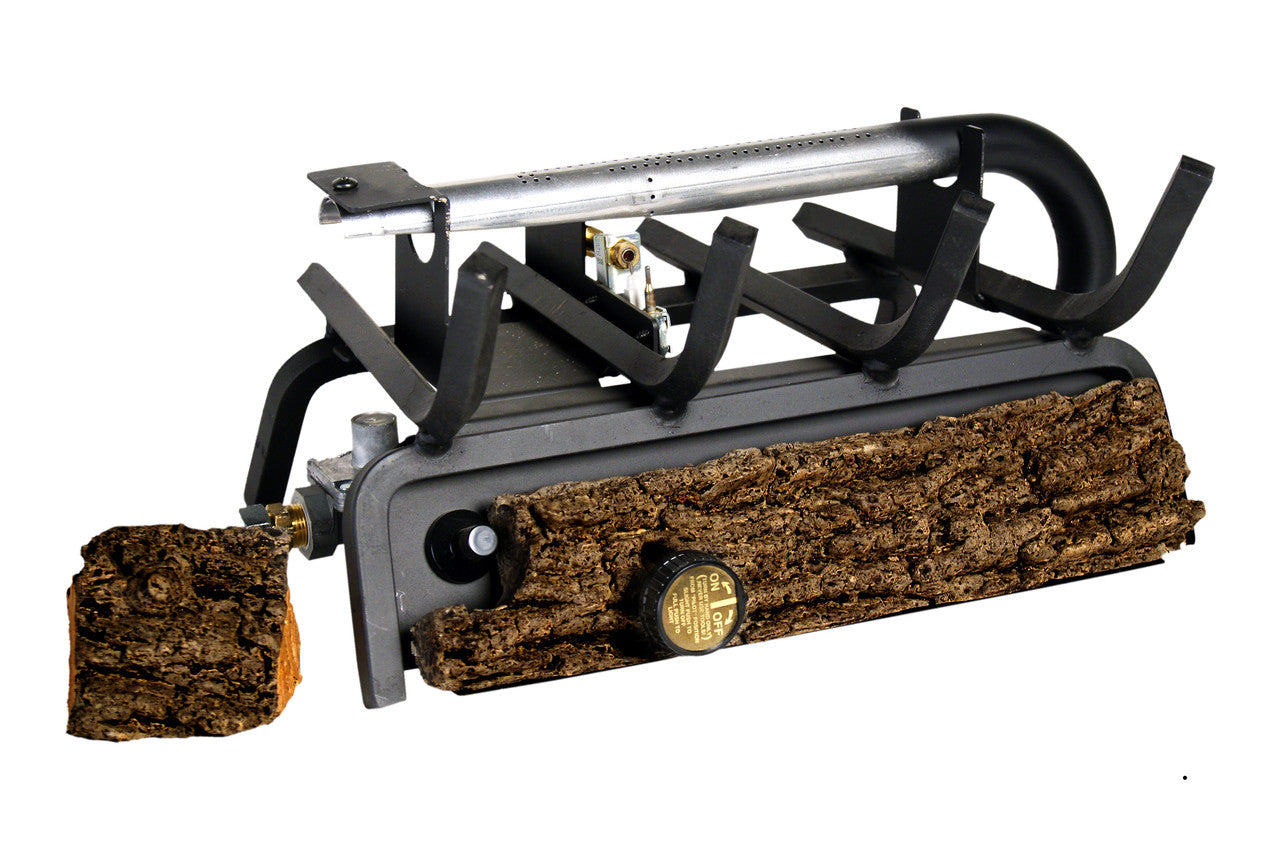

Rh Peterson G8E-16/20/24R-12 Vent Free Gas Burner 9500 Btu

Product Description

The RH PETERSON G8E-16/20/24R-12 is a millivolt-ignition, vent-free natural gas burner designed for indoor single-sided fireplaces, including bedrooms and bathrooms where local codes permit. Rated at 9500 BTU/h maximum output, it operates on natural gas with an inlet pressure range of 5.0 to 10.5 inches water column and connects via a 1/2-inch gas fitting. The burner uses a remote on/off control system and includes an Oxygen Depletion Sensor (ODS) safety system, a custom grate, a decorative log front panel, and a connector kit. It is ANSI certified and approved for mobile home installation. Licensed gas professionals should confirm local vent-free regulations before installation.

This burner is designed for use with Real-Fyre Valley Oak Log Sets in 16-inch, 20-inch, and 24-inch sizes. It is intended for indoor, single-sided fireplace applications where a traditional log set appearance is desired. Minimum fireplace opening requirements vary by log set size: all three sizes require a minimum rear width of 13 inches and a depth of 9.5 inches. Front width minimums are 17 inches for the 16-inch log set, 21 inches for the 20-inch log set, and 26 inches for the 24-inch log set. Minimum height requirement is 17 inches. Log sets are sold separately. A liquid propane version is also available under model G8E-16/20/24R-12P. This product cannot be shipped to California.

Key Features

• 9500 BTU/h maximum output for vent-free natural gas operation
• Millivolt ignition system with included remote on/off control
• ODS (Oxygen Depletion Sensor) safety system included
• ANSI certified; approved for bedroom, bathroom, and mobile home use where permitted by law
• Compatible with 16-inch, 20-inch, and 24-inch Real-Fyre Valley Oak Log Sets
• Includes custom grate, decorative log front panel, and connector kit

Compatibility

This burner is certified for use with specific Real-Fyre Valley Oak Log Sets in 16-inch, 20-inch, and 24-inch configurations only. Burners are not universal — use with non-compatible log sets creates serious risk of fire, carbon monoxide exposure, and property damage. Confirm log set compatibility before installation. Log sets are sold separately.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with applicable local and national codes, including the International Fuel Gas Code (IFGC). Shut off the gas supply completely before connecting or servicing the burner. Verify local building codes before installing any vent-free appliance, as some jurisdictions prohibit their use. This product cannot be shipped to or installed in California.

Technical Specifications

• Fuel Type: Natural Gas (NG)
• BTU Output (Max.): 9500 BTU/h
• Ignition Type: Millivolt (Remote Ready)
• Inlet Gas Pressure (Min.): 5.0 inches w.c.
• Inlet Gas Pressure (Max.): 10.5 inches w.c.
• Gas Connection Size: 0.5 inches
• Venting Type: Vent Free
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Allowable Log Set Sizes: 16 inches, 20 inches, 24 inches
• Grate Type: Standard
• Certifications: ANSI Certified; Bedroom Approved; Bathroom Approved; Mobile Home Approved

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G8E-16/20/24R-12
