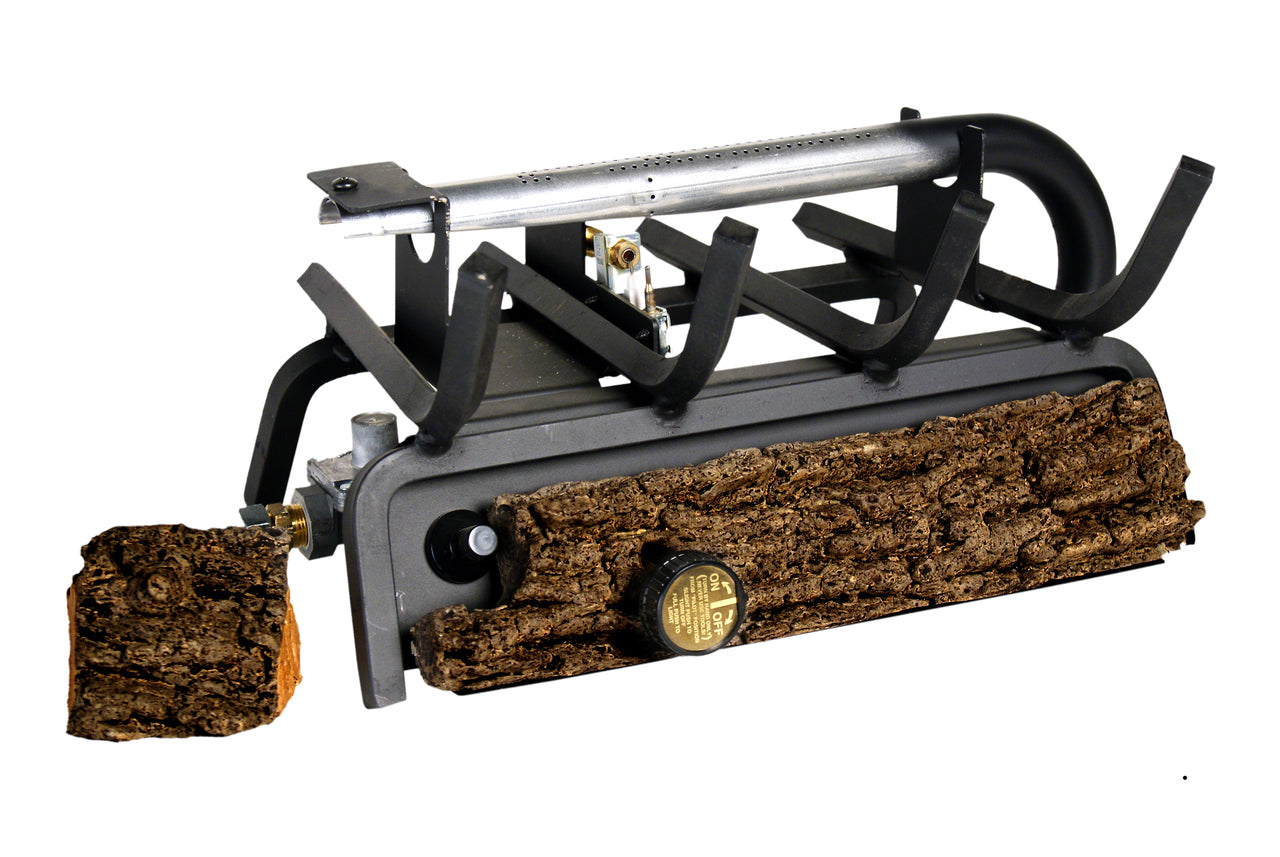

Rh Peterson G8E-16/20/24P Real Fyre G8E Vent-Free Burner

Product Description

The RH PETERSON G8E-16/20/24P Real Fyre G8E Vent-Free Burner is designed for smaller fireplaces. Available in 16-inch, 20-inch, and 24-inch sizes, it produces up to 20,000 BTUs of heat. It maintains the clean burn vent-free systems are known for. A 9,500 BTU bedroom-rated model is also offered where code permits.

• Compact and efficient design
• Suitable for smaller fireplaces
• Available in 16, 20, and 24-inch sizes

Product Highlights

This vent-free burner features multiple control options and is compatible with Valley Oak and Split Valley Oak log sets.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G8E-16/20/24P

Technical Specifications

• Certification: ANSI certified vent-free system for indoor use; bedroom-rated model available where permitted by code.
• BTUs: Standard: 20,000 BTUs (NG/LP); Bedroom-rated: 9,500 BTUs (NG/LP)
• Burner Type: G8E Series compact vent-free burner with decorative front panel and knob cover; includes lava granules and ember media.
• Fireplace Location: Indoor vent-free fireplaces; offered in 16", 20", and 24" sizes.
• Ignition Type: Millivolt (Remote Ready)
• Material: Durable vent-free burner construction with decorative panel; includes lava granules and glowing embers.
• Venting Type: Vent-free - designed for approved vent-free fireboxes; no chimney or flue required.
• Fireplace Style: Single Sided / Bedroom Rated
• Location of Use: Indoor
• Type of Venting: Vent Free
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 16" / 20" / 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 9500
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.) - 16": 17"
• Req. Min. Front Width (in.) - 20": 21"
• Req. Min. Front Width (in.) - 24": 26"
• Req. Min. Rear Width (in.): 13"
• Req. Min. Depth (in.): 9.5"
• Req. Min. Height (in.): 17"
