Rh Peterson G46-30-17P Real-Fyre 30 inches ANSI Certified Triple T Vented Burner with Automatic Pilot / Variable Flame - Liquid Propane

Product Description

The RH Peterson G46-30-17P Real-Fyre burner is certified to work with specific log sets and features an advanced glowing ember burner system. The G46 burner includes a pre-installed valve/controls with remote control system. Its angled sides and required minimum firebox dimensions may allow for a larger log set in your fireplace.

• ANSI Certified Burner
• Pre-assembled control valve and regulator - APK-17 variable flame, remote safety valve
• Piezo Ignitor

Product Highlights

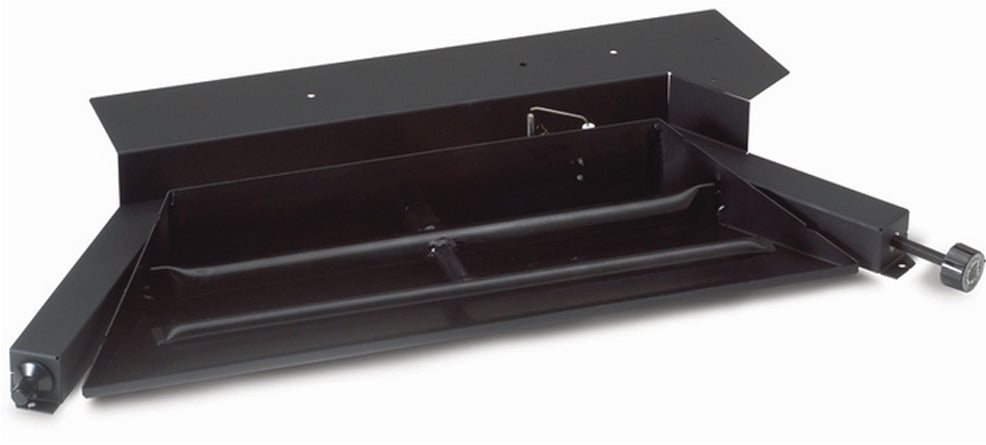

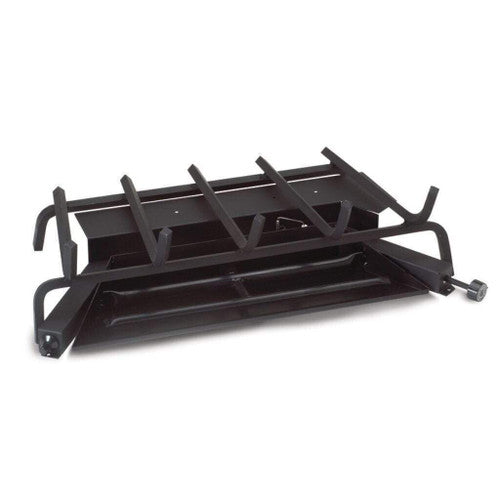

The G46 burner consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. Log set sold separately.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-30-17P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 30"
• BTUs (Max.): 65000
• Ignition Type: Electronic Ignition
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 35"
• Req. Min. Rear Width (in.): 29"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Burner Style: Standard
• Size: 30"
• Fireplace Location: Indoor
• Burner Type: Gas Logs
• Burner System: G46 Burner
