Rh Peterson G46-30-11 Real-Fyre G463011n 30 inches Ansi Certified Triple T Vented Burner With On/Off Remote - Natural Gas

Product Description

The RH PETERSON G46-30-11 is an ANSI certified burner that works with specific log sets. The G46 burner is a Triple T burner and features an advanced glowing ember burner system. It includes a pre-installed valve/controls with remote control system. Log Set sold separately.

• ANSI Certified Burner

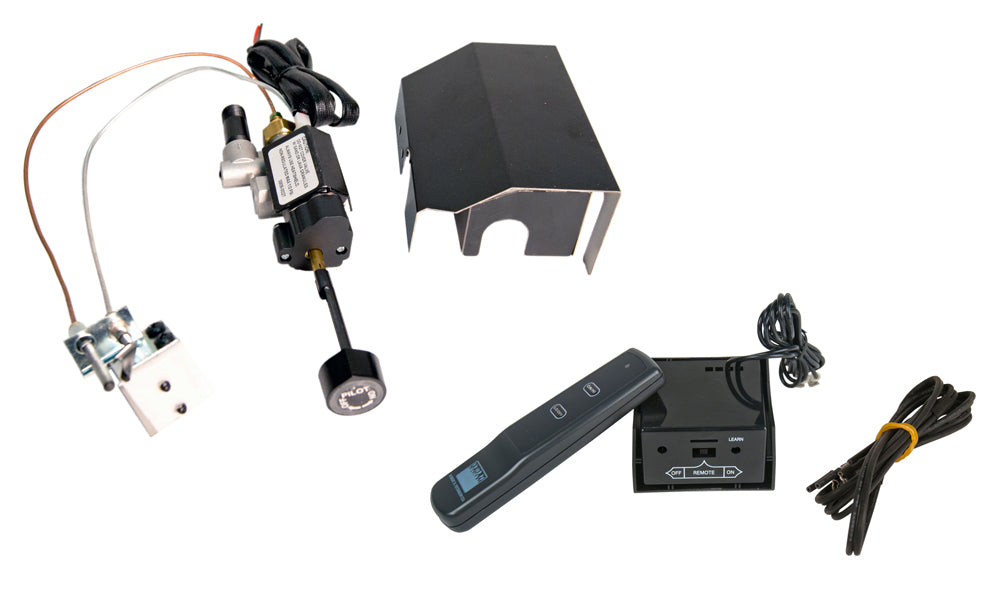

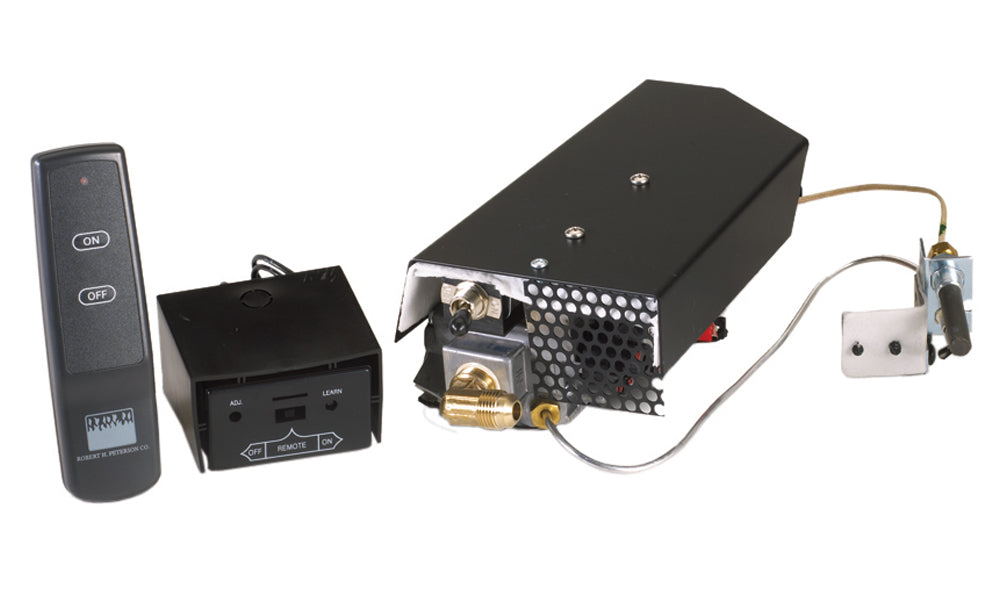

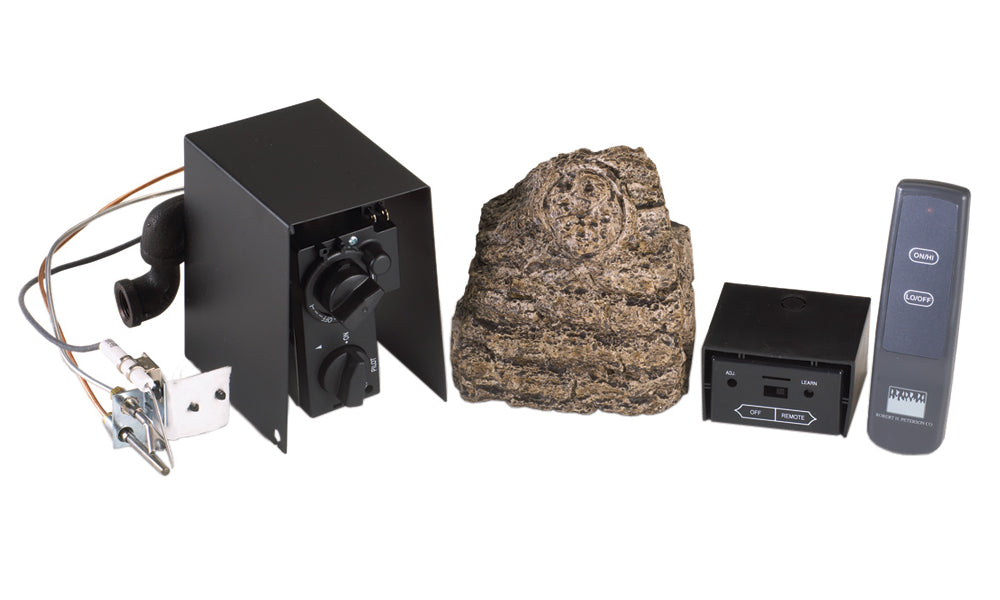

• Pre-assembled control valve and regulator - APK-11 on/off safety valve
• Piezo Ignitor

Product Highlights

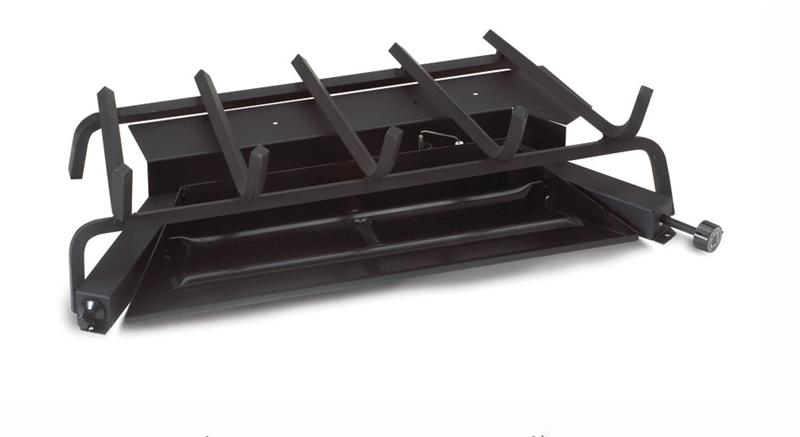

The G46 burner consists of a main burner tube that extends down the middle and a smaller front flame burner. It also gives you a nice bed of glowing embers under beautiful dancing flames.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-30-11

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 30"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 65000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 35"
• Req. Min. Rear Width (in.): 29"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
