Rh Peterson G46-30-02P Real Fyre G46 30 inches ANSI Vented Burner with 02 Valve & Remote - LP

Product Description

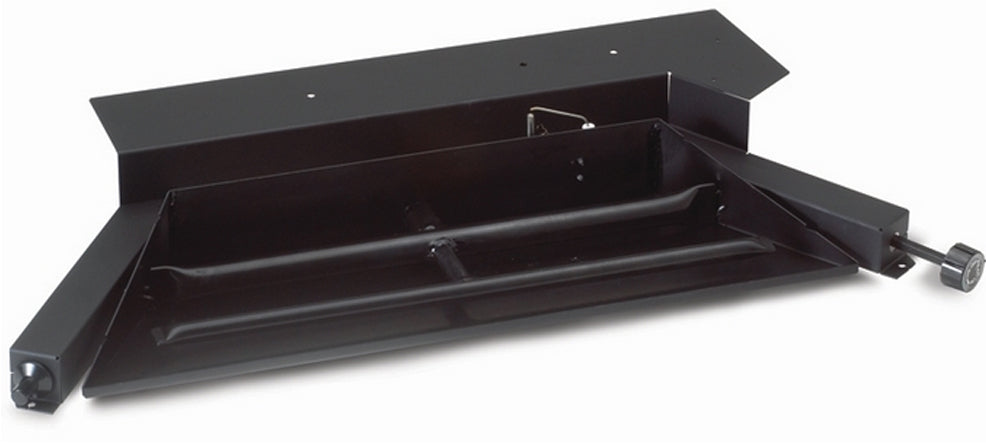

The RH PETERSON G46-30-02P is an ANSI-Certified G46 Vented Gas Fireplace Burner from Real Fyre intended for use with a log set. The heavy duty construction ensures a long lasting and durable burner system, while the innovative design provides a realistic flame presence and a superior flame presentation. This system measures 30 inches and has been designed for use with propane gas.

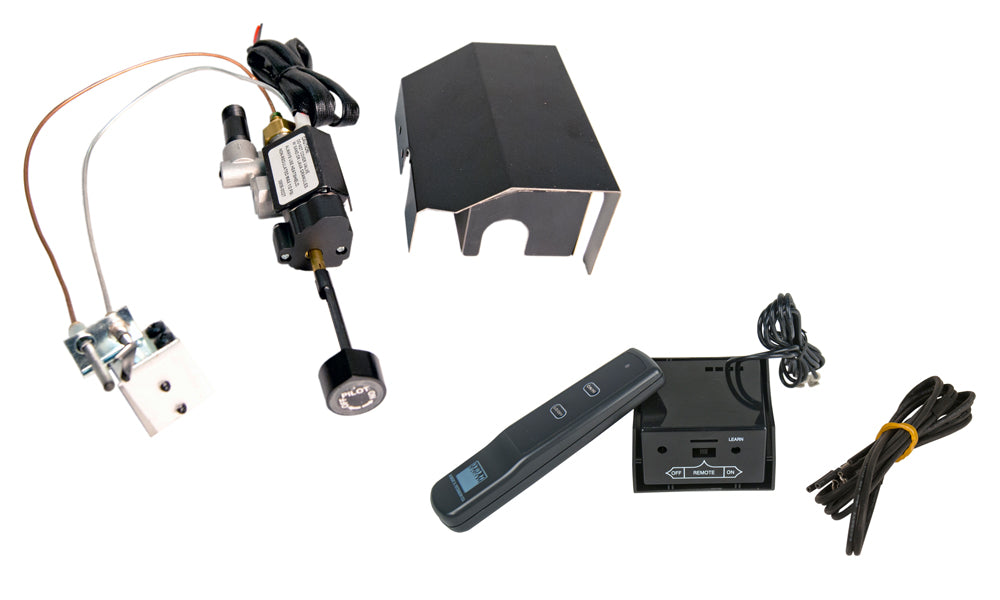

• Vented gas fireplace burner system; EPK-2 safety pilot kit
• Premium construction for long-lasting durability
• Unique burner design creates a superior flame appearance

Product Highlights

The G46 series burner provides an excellent choice to fill your fireplace enclosure with a beautiful flame. Fuel efficient design lowers the cost of operation. Cordless.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-30-02P

Technical Specifications

• Brand: RH Peterson Co.
• Power Source: Gas Powered
• Material: Metal
• Finish Type: Painted
• Installation Type: Freestanding
• Heat Output: 5100 British Thermal Units
• Special Feature: Cordless
• Style: Contemporary
• Chamber Width: 36 Inches
• Chamber Depth: 15 Inches
• Ventilation Type: vented
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Media Style: Traditional Log Set

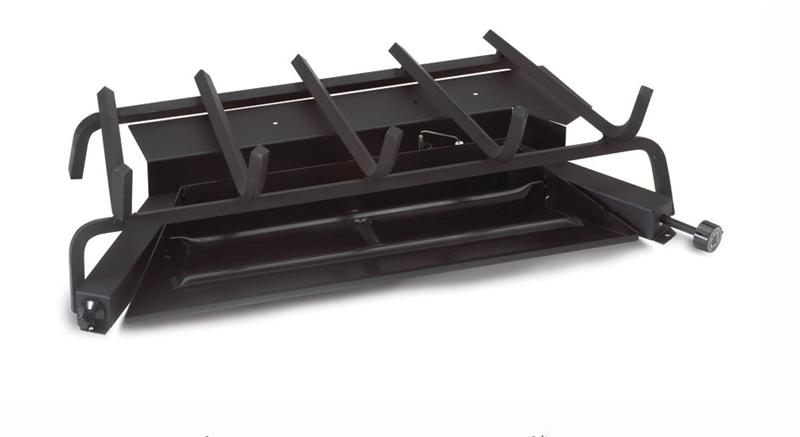

• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 30"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 55000

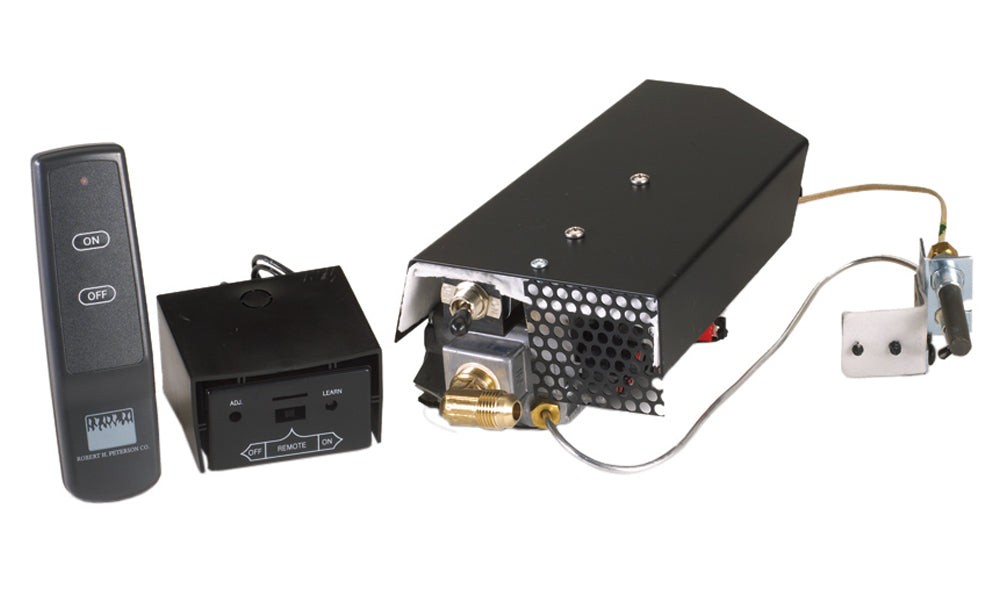

• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Type: Burners
• Burner Style: Standard
• Size: 30"
• Vent Type: Vented
• Fireplace Location: Indoor
• Burner Type: Gas Logs
• Burner System: G46 Burner
