Rh Peterson G46-24 Burner 24 inches with Safety Pilot Kit

Product Description

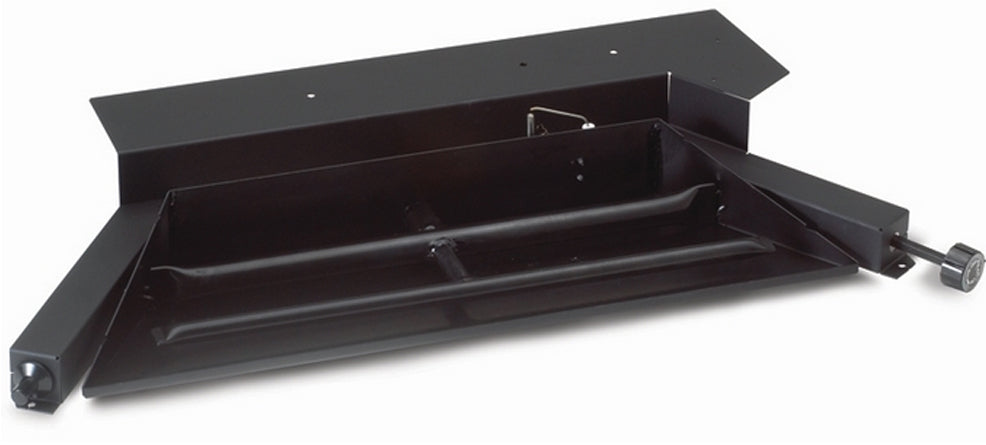

The RH PETERSON G46-24 is a 24" vented gas burner with a safety pilot kit. The G46 burner is a Triple T burner and features an advanced glowing ember burner system. It includes a pre-installed valve/controls with remote control system. Log set sold separately.

• ANSI Certified Burner
• Pre-assembled control valve and regulator - SPK-26 safety valve
• Piezo Ignitor

Product Highlights

The G46 burner system includes a burner, control valve, ignitor, grate, embers, sand, connector kit, locators, and damper clamp. It provides realistic flames and glowing embers.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-24

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 55000
• Ignition Type: Manual (No Remote)
• Remote: Not Available
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
