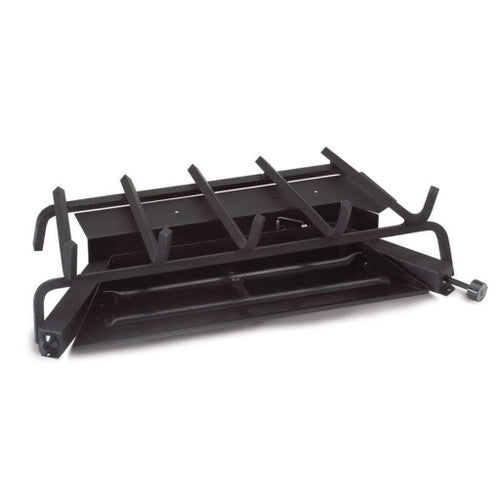

Rh Peterson G46-24-17P Burner Real Fyre G46 Advanced Glowing Ember System 24 Inch Propane Vented 55K BTU Variable Remote Low Profile Valve

Product Description

The RH PETERSON G46-24-17P is a Burner Real Fyre G46 Advanced Glowing Ember System. This patented system features hidden installed controls, piezo ignition, and lively flames and embers with fewer BTUs. It is ANSI Standard Certified for Natural or Propane gas and compatible with most Real-Fyre Log styles.

• Main burner for great log presentation
• Controls are hidden in the back of the burner
• Ember Glow creates a realistic look

Product Highlights

The G46 burner is a Triple T burner with an advanced glowing ember system, pre-installed valve/controls, and a remote control. It offers realistic flames and glowing embers, enhancing your fireplace experience.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-24-17P

Technical Specifications

• Type: Burners
• Burner Style: Standard
• Size: 24"
• Vent Type: Vented
• Fireplace Location: Indoor
• Burner Type: Gas Logs
• Burner System: G46 Burner
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 55000
• Ignition Type: Electronic Ignition
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
