Rh Peterson G46-24-17 Burner Real Fyre G46 Advanced Glowing Ember System 24 Inch Natural Gas Vented 55K BTU Variable Remote Low Profile Valve

Product Description

The RH PETERSON G46-24-17 Burner Real Fyre G46 Advanced Glowing Ember System is a 24-inch natural gas vented burner with a 55K BTU variable remote low-profile valve. The heavy-duty construction ensures a long-lasting and durable burner system, while the innovative design provides a realistic flame presence. Compatible with most Real-Fyre Log styles.

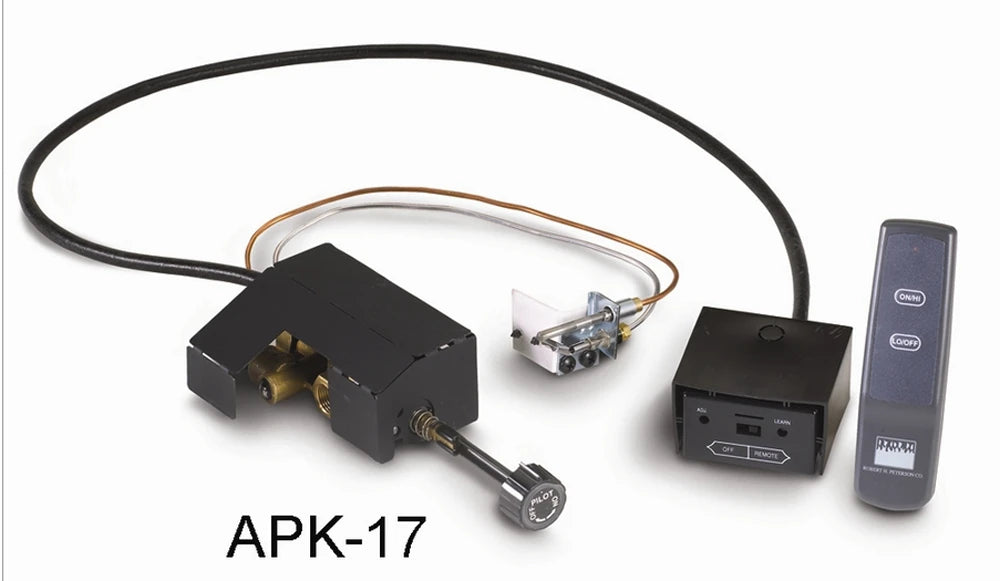

• Vented gas fireplace burner system; APK-17 valve safety pilot kit
• Premium construction for long-lasting durability
• Unique burner design creates a superior flame appearance

Product Highlights

This burner system features hidden installed controls, piezo ignition, and lively flames and embers with fewer BTUs. It is ANSI Standard Certified for Natural or Propane gas.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-24-17

Technical Specifications

• Brand: RH Peterson Co.
• Material: Metal
• Manufacturer: RH Peterson Co.
• Type: Burners
• Burner Style: Standard
• Size: 24"
• Vent Type: Vented
• Fireplace Location: Indoor
• Burner Type: Gas Logs
• Burner System: G46 Burner
• Fireplace Style: Single Sided
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Natural Gas (NG)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 55000
• Ignition Type: Electronic Ignition
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 5.0" w.c.
• Inlet Gas Pressure (Max.): 10.5" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
