Rh Peterson G46-24-11P Burner Real Fyre G46 Advanced Glowing Ember System 24 Inch Propane Vented 55K BTU On/Off Remote

Product Description

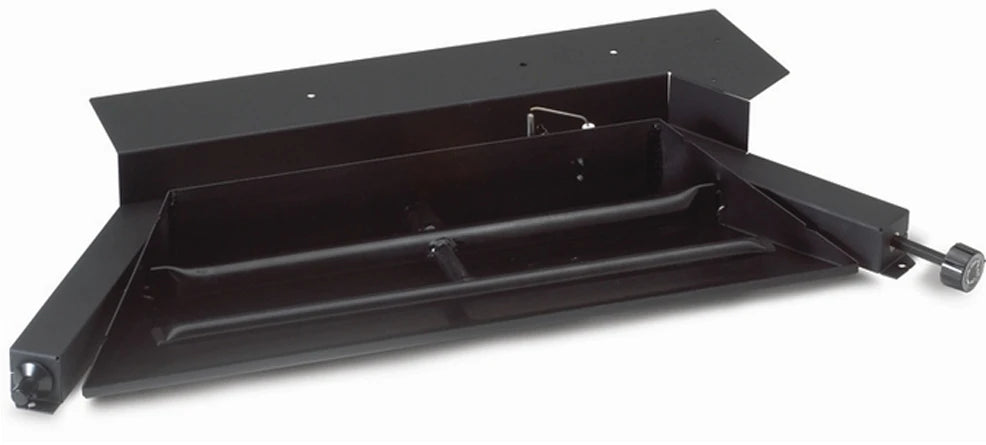

The RH PETERSON G46-24-11P is a Burner Real Fyre G46 Advanced Glowing Ember System. This 24-inch propane vented burner system features an advanced glowing ember burner system. The tapered shape reduces clearance, and the front flame burner accentuates the flame. It offers realistic flames and glowing embers.

• ANSI Certified Burner

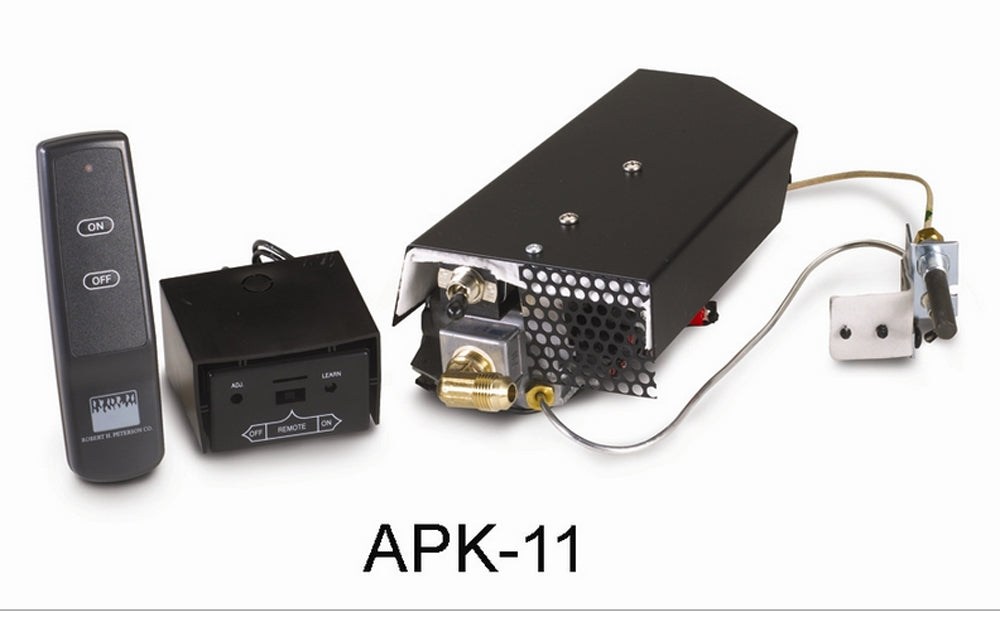

• Pre-assembled control valve and regulator - APK-11 on/off safety valve
• Piezo Ignitor

Product Highlights

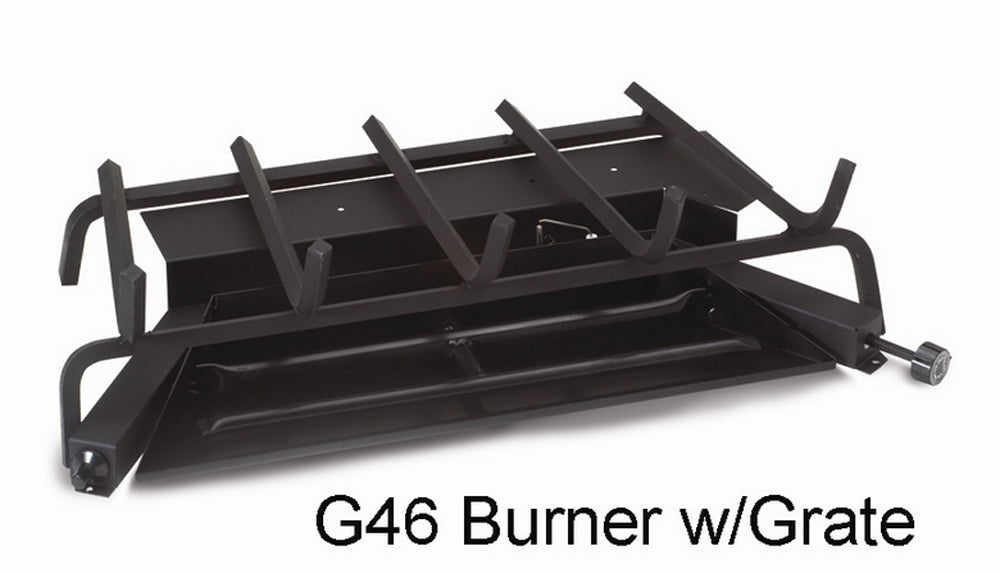

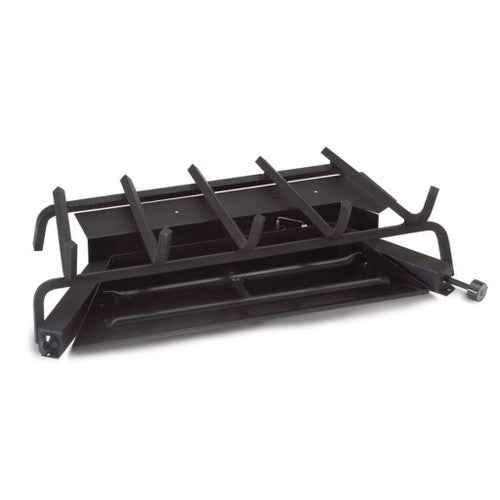

The G46 burner system includes a pre-assembled control valve, piezo ignitor, grate, glowing embers, and connector kit. It uses a standing pilot that stays lit.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-24-11P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 55000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Burner Style: Standard
• Size: 24"
• Fireplace Location: Indoor
• Burner Type: Gas Logs
• Burner System: G46 Burner
