Rh Peterson G46-24-02P Real Fyre G46 Advanced Glowing Ember System 24 Inch Propane Vented 55K BTU Electronic Remote Intermittent

Product Description

The RH PETERSON G46-24-02P Real Fyre G46 advanced glowing ember system is a 24-inch propane vented burner with a 55K BTU electronic remote intermittent system. This patented system features hidden installed controls, piezo ignition, and lively flames. It is ANSI Standard Certified for Propane gas and compatible with most Real-Fyre Log styles.

• Main burner for great log presentation
• Controls are hidden in the back of the burner
• Ember Glow creates a realistic look

Product Highlights

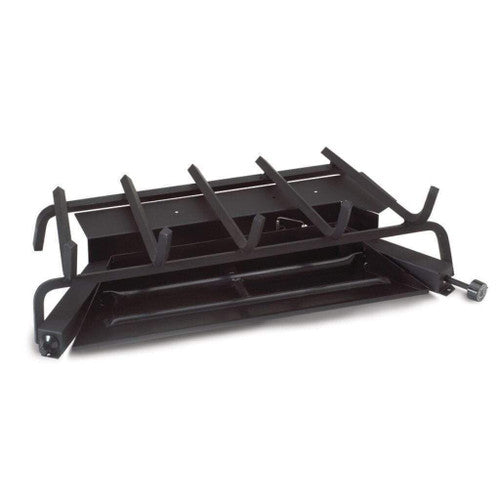

The G46 burner system includes a burner, control valve and regulator, piezo ignitor, grate, glowing embers, vermiculite, connector kit, log locators and damper clamp.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-24-02P
• Country of Origin: USA

Technical Specifications

• Type: Burners
• Burner Style: Standard
• Size: 24"
• Vent Type: Vented
• Fireplace Location: Indoor
• Burner Type: Gas Logs
• Burner System: G46 Burner
• Power Source: Gas Powered
• Material: Metal
• Finish Type: Painted
• Installation Type: Freestanding
• Style: Contemporary
• Color: Black
• Chamber Width: 30 Inches
• Chamber Depth: 15 Inches
• Ventilation Type: vented
• Specific Uses For Product: Indoor
• Orientation: Front-facing
• Model Name: G46
• Model Number: G46-24-02P
• Manufacturer: Real Fyre
• Unit Count: 1.0 Count
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 24"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 55000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 30"
• Req. Min. Rear Width (in.): 24"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
