Product Description
The RH PETERSON G46-18/20P Real Fyre G46-18/20 Burner is an advanced ember burner system designed to maximize flame presence while using less fuel. Its innovative H-burner configuration ensures lively, full flames that spread evenly across the ember bed, creating a natural and realistic fire presentation. It is well-suited for mid-sized vented fireplaces where efficiency and flame depth matter most.
- Advanced ember burner system
- H-burner configuration for lively, full flames
- Hidden control design for a cleaner look
Product Highlights
This burner is compatible with RH Peterson gas log sets and is available in natural gas and propane models. It delivers up to 40,000 BTUs and has multiple ignition type options.
Product Information
Standard Information
-
Brand: RH PETERSON
-
Manufacturer Part Number: G46-18/20P
Technical Specifications
-
Certification: ANSI certified burner system with multiple control configurations.
-
BTUs: Natural Gas: 40,000 BTUs; Propane: 40,000 BTUs
-

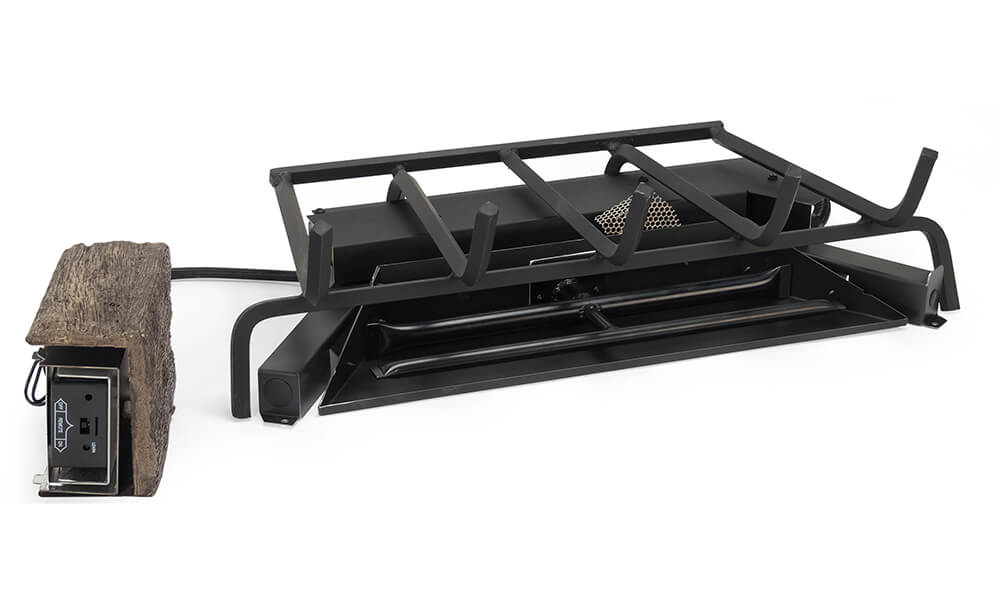

Burner Type: Signature Series G46 Advanced Glowing Ember Burner; H-burner design with hidden controls for a clean look.
-
Fireplace Location: Indoor vented fireplaces, 18/20-inch size.
-

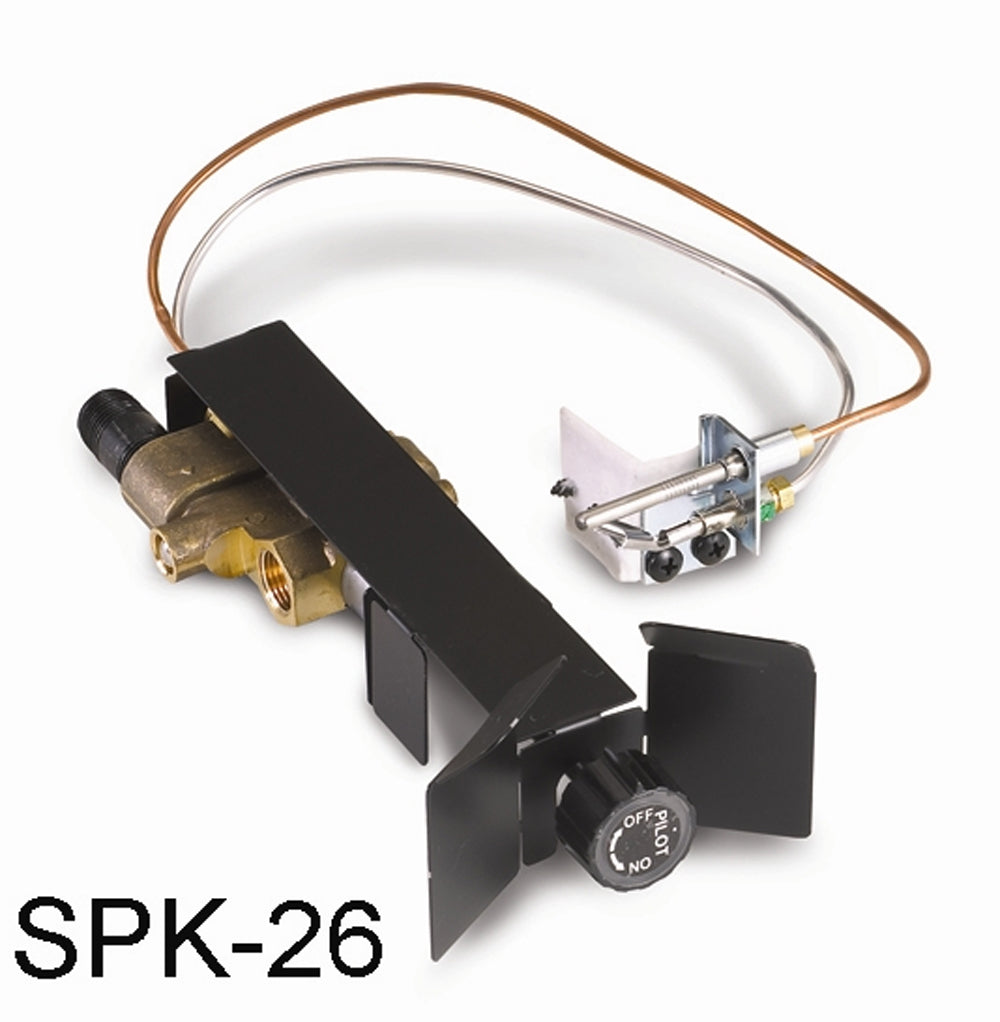

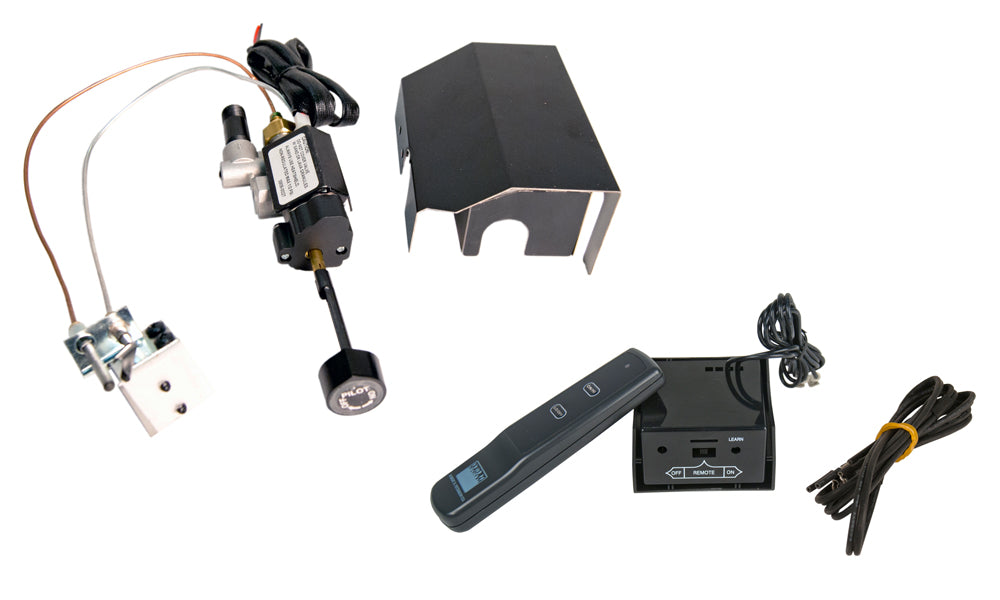

Ignition Type: Available in multiple configurations: match-lit, SPK-26 safety pilot, APK automatic pilot systems, EPK electronic valve kits, and Bluetooth remotes.
-
Material: Durable steel burner system with H-burner design; includes white sand (NG) or vermiculite (LP) and glowing embers for realistic ember bed.
-
Venting Type: Vented
– requires an open fireplace with chimney venting.
-
Fireplace Style: Single Sided
-
Location of Use: Indoor
-
Media Style: Traditional Log Set
-
Type of Grate: Standard
-
Fuel Type: Liquid Propane (LP)
-
Allowable Log Set Sizes (in.): 18" / 20"
-
Allowable Log Sets: Real-Fyre Gas Log Set Not Included
-
Certified Usage: Mobile Home Approved
-
BTUs (Max.): 40000
-
Remote: Not Available
-
Gas Connection Size (in.): 1/2"
-
Inlet Gas Pressure (Min.): 11.0" w.c.
-
Inlet Gas Pressure (Max.): 13.0" w.c.
-
Req. Min. Front Width (in.): 26"
-
Req. Min. Rear Width (in.): 20"
-
Req. Min. Depth (in.): 15"
-
Req. Min. Height (in.): 17"
-
Chimney Height (Min. ft.): 15'
-
Products Sizes: 18/20 Inches
-
Control Options: Manual valve with standing pilot (-A)

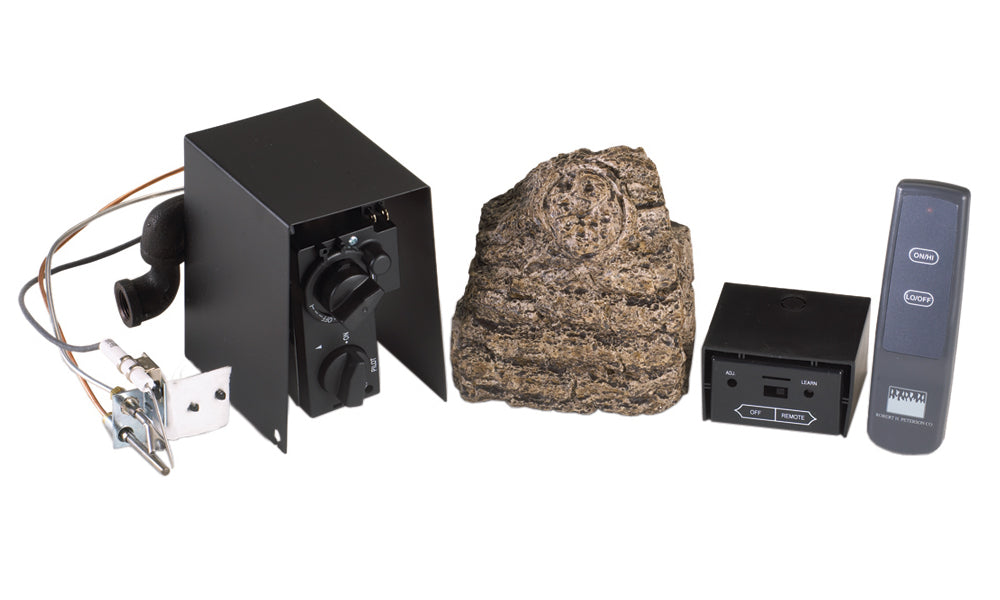

Millivolt valve with standing pilot and on/off remote control (-11)
Millivolt valve with standing pilot and variable flame height control via remote (-15)
Millivolt valve with standing pilot and variable flame height control via remote (-17)

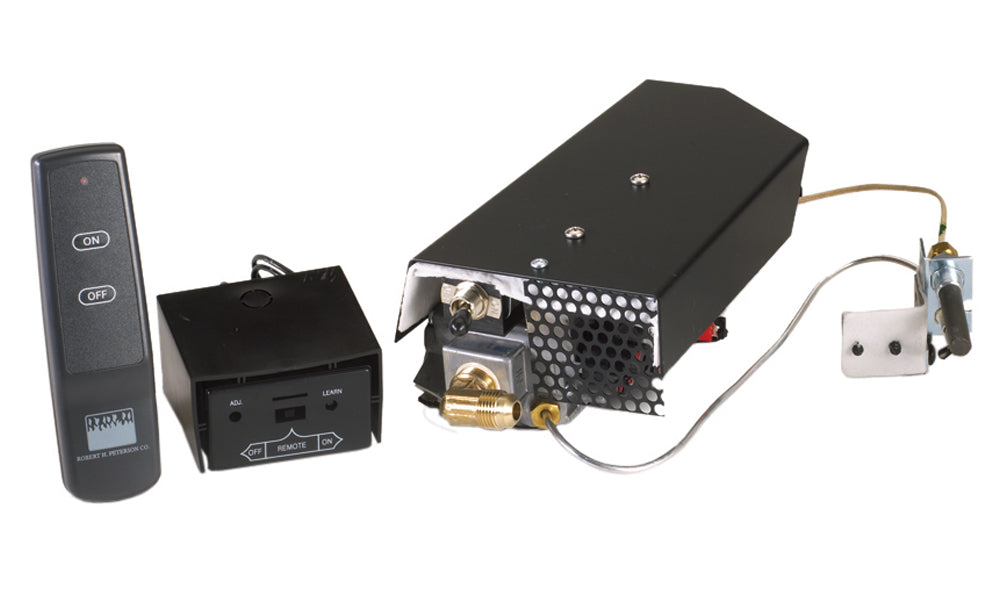

Electronic valve with Intermittent Pilot Ignition (IPI) and on/off remote control (-02)
-
Manifold Pressure (in.): NA
