Rh Peterson G46-18/20-11P Real Fyre G46 Advanced Glowing Ember System 18/20 Inch 40K BTU

Product Description

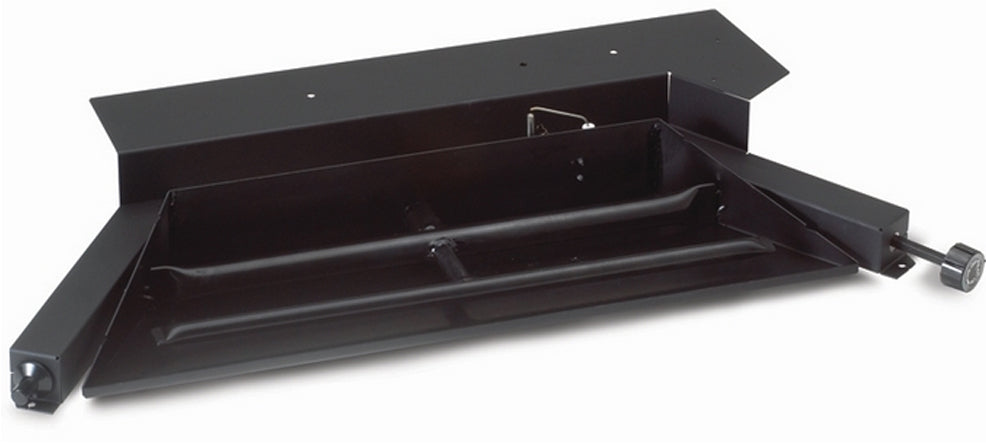

The RH PETERSON G46-18/20-11P Real Fyre G46 Advanced Glowing Ember System is an ANSI-certified burner with a pre-installed valve/controls and remote control system. The G46 burner features an advanced glowing ember burner system. It gives you a nice bed of glowing embers under beautiful dancing flames. Log set sold separately.

• ANSI Certified Burner

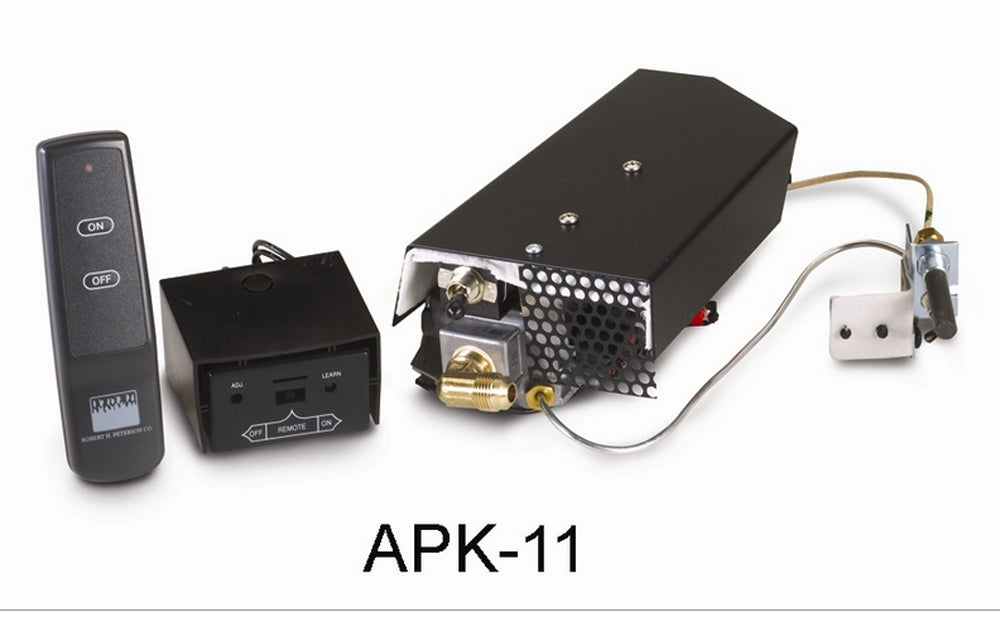

• Pre-assembled control valve and regulator - APK-11 on/off safety valve
• Piezo Ignitor

Product Highlights

The G46 burner is Triple T burner and features an advanced glowing ember burner system. It includes pre-installed valve/controls with remote control system.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-18/20-11P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 40000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 26"
• Req. Min. Rear Width (in.): 20"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
