Rh Peterson G46-18/20-02P Real-Fyre G46 18 inches / 20 inches Triple T Vented Burner with Low Profile Electronic Pilot - Liquid Propane

Product Description

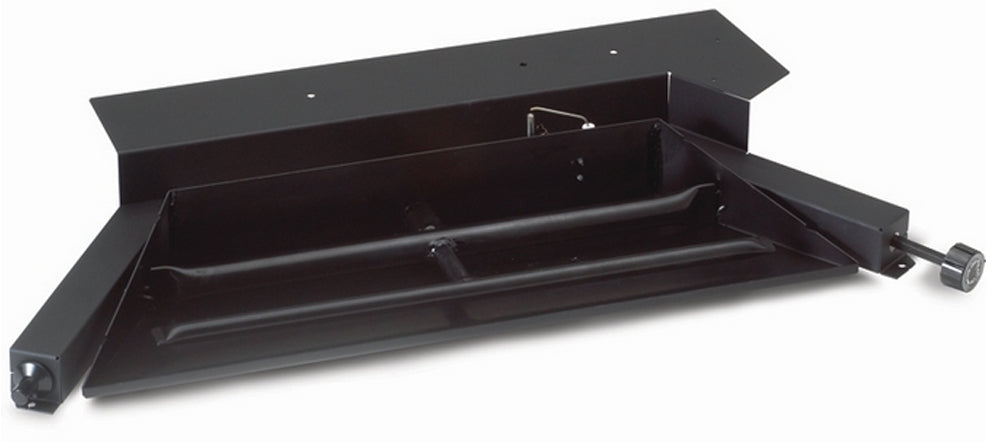

The RH PETERSON G46-18/20-02P G46 burner is a Triple T burner featuring an advanced glowing ember burner system. It includes valve/controls with remote control system. Its tapered shape allows pilot kit attachment to the angled side, reducing clearance. It has a main burner tube with a smaller front flame burner, accentuating flames and creating a bed of glowing embers.

• Triple T burner with advanced glowing ember system
• Electronic Ignition Pilotless Remote Control Safety Valve system
• Operated manually or with included basic RR-1A On/Off remote control

Product Highlights

The G46 burner offers lively, realistic flames and glowing embers. It is Mobile Home Approved and has an electronic ignition.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G46-18/20-02P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 18" / 20"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 40000
• Ignition Type: Electronic Ignition
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Manifold Pressure (in.): NA
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 26"
• Req. Min. Rear Width (in.): 20"
• Req. Min. Depth (in.): 15"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
