Product Description

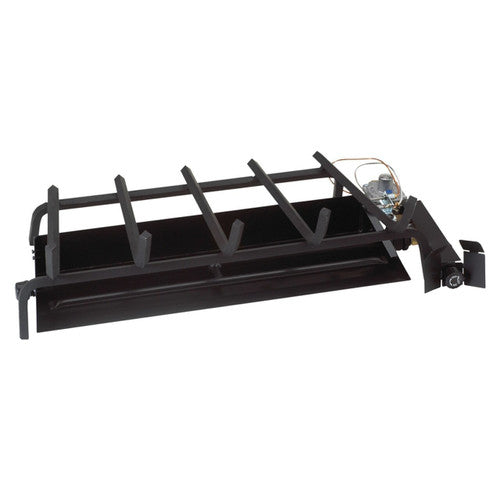

The RH PETERSON G45-30-17P Real Fyre G45 Triple T Burner features a main burner tube with a smaller front flame burner that "T"s off the main burner. The additional front flame helps to accentuate the front flame. The burner gives you a bed of glowing embers under flames.
- Triple T Burner design
- Front flame burner accentuates the front flame
- Creates a bed of glowing embers
Product Highlights

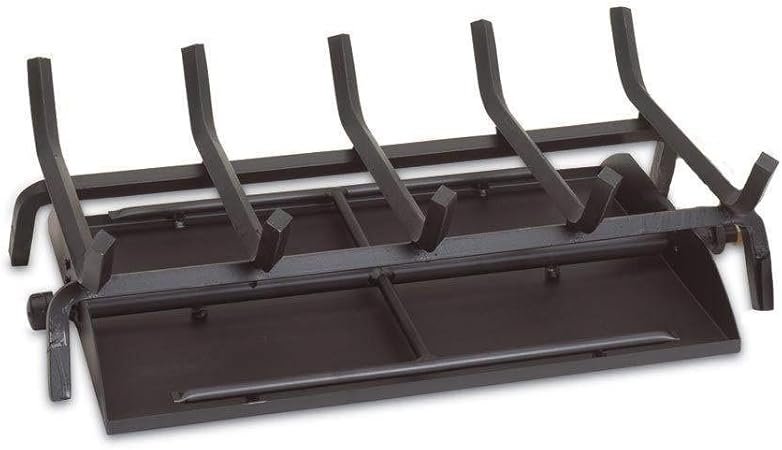

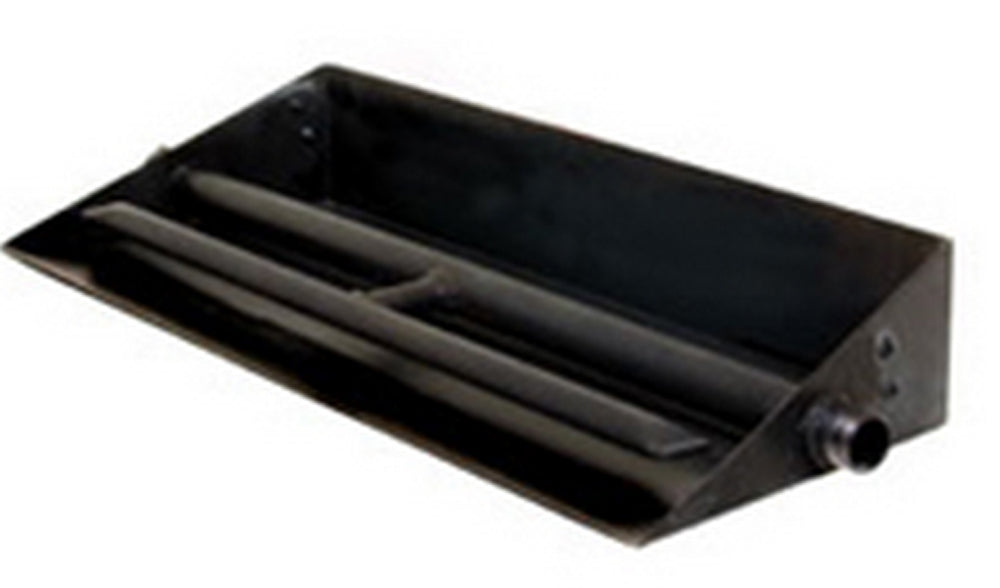

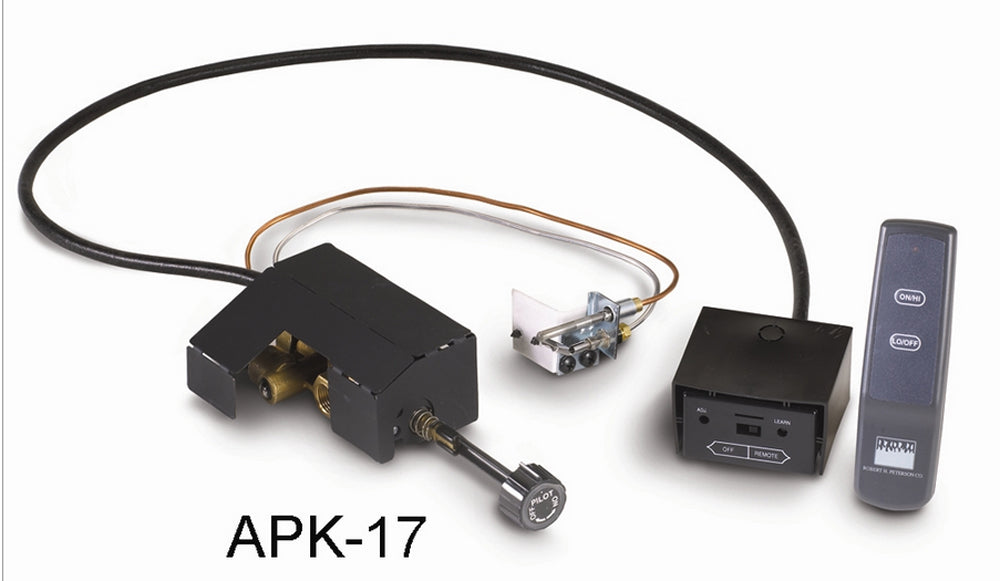

The burner system includes a burner pan, grate, glowing embers, vermiculite, burner clips, flex connector kit, and damper clamp. An assembled APK-17 variable flame remote control safety pilot system is also included.
Product Information
Standard Information
-
Brand: RH PETERSON
-
Manufacturer Part Number: G45-30-17P
Technical Specifications
-
Fireplace Style: Single Sided
-
Location of Use: Indoor
-
Type of Venting: Vented
-
Media Style: Traditional Log Set
-
Type of Grate: Standard
-
Fuel Type: Liquid Propane (LP)
-
Allowable Log Set Sizes (in.): 30"
-
Allowable Log Sets: Real-Fyre Gas Log Set Not Included
-
Certified Usage: Mobile Home Approved
-
BTUs (Max.): 75000
-
Ignition Type: Electronic Ignition
-
Remote: Variable Flame Remote Included
-
Gas Connection Size (in.): 1/2"
-
Inlet Gas Pressure (Min.): 11.0" w.c.
-
Inlet Gas Pressure (Max.): 13.0" w.c.
-
Req. Min. Front Width (in.): 40"
-
Req. Min. Rear Width (in.): 34"
-
Req. Min. Depth (in.): 16"
-
Req. Min. Height (in.): 17"
-
Chimney Height (Min. ft.): 15'
-
Size: 30"
