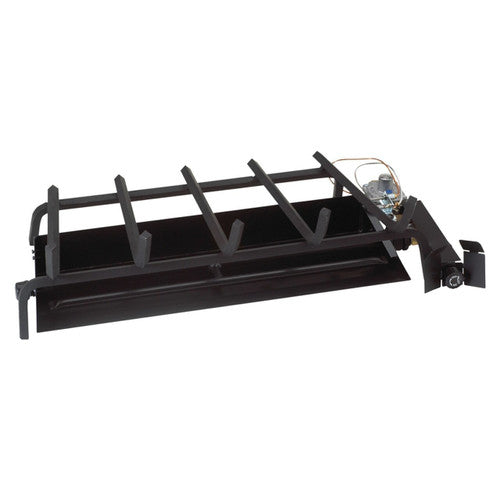

Rh Peterson G45-30-17P Real Fyre G45 Triple T Burner 30 inch 75K BTU

Product Description

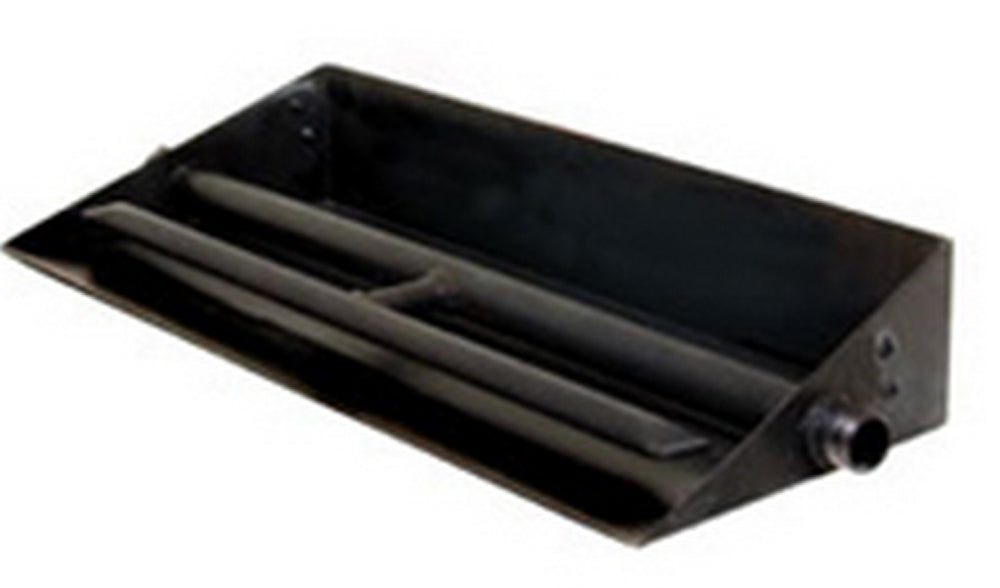

The RH PETERSON G45-30-17P Real Fyre G45 Triple T Burner features a main burner tube with a smaller front flame burner that "T"s off the main burner. The additional front flame helps to accentuate the front flame. The burner gives you a bed of glowing embers under flames.

• Triple T Burner design
• Front flame burner accentuates the front flame
• Creates a bed of glowing embers

Product Highlights

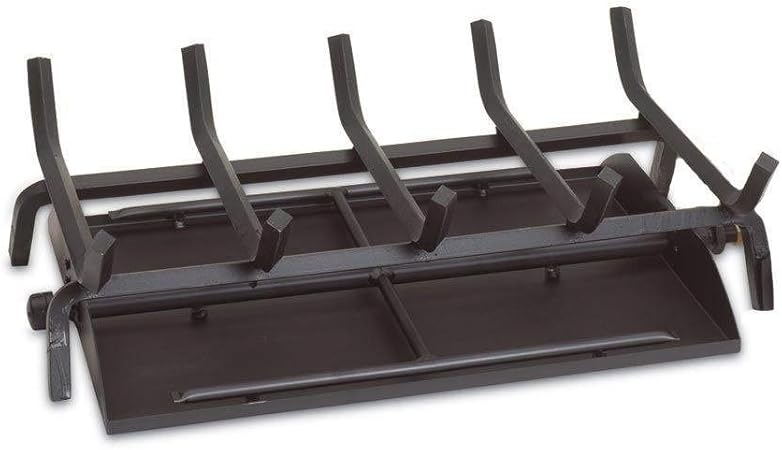

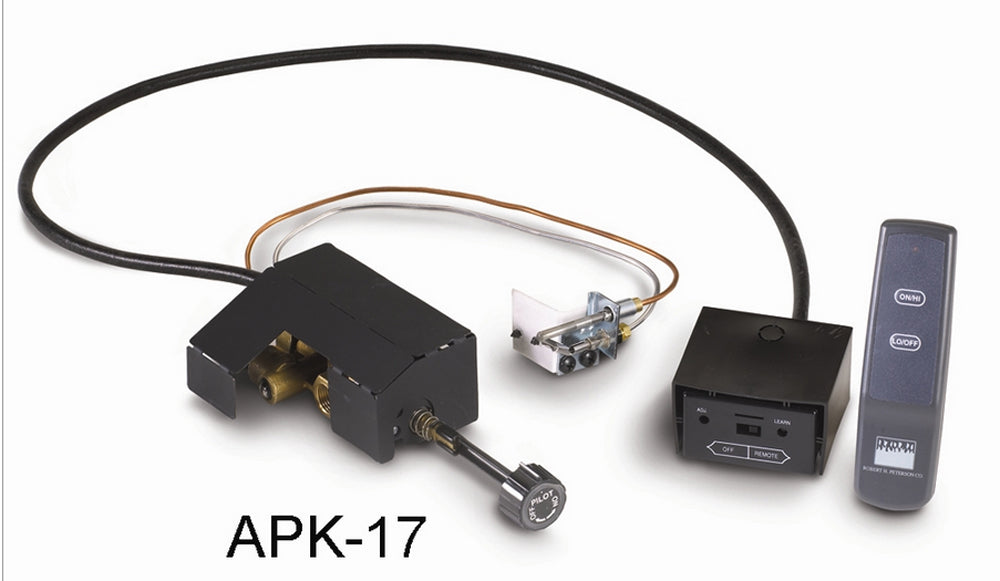

The burner system includes a burner pan, grate, glowing embers, vermiculite, burner clips, flex connector kit, and damper clamp. An assembled APK-17 variable flame remote control safety pilot system is also included.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-30-17P

Technical Specifications

• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 30"
• Allowable Log Sets: Real-Fyre Gas Log Set Not Included
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 75000
• Ignition Type: Electronic Ignition
• Remote: Variable Flame Remote Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 40"
• Req. Min. Rear Width (in.): 34"
• Req. Min. Depth (in.): 16"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
• Size: 30"
