Rh Peterson G45-30-11P Real Fyre G45 Triple T Burner 30 Inch Propane 75K BTU On/Off Remote

Product Description

The RH PETERSON G45-30-11P Real Fyre G45 Triple T Burner features a main burner tube with a smaller front flame burner that "T"s off the main burner. The additional front flame allows positioning directly beneath the logs, accentuating the front flame. This burner provides a bed of glowing embers under dancing flames for a realistic fire.

• Includes burner pan, grate, glowing embers, and vermiculite
• Features burner clips and flex connector kit

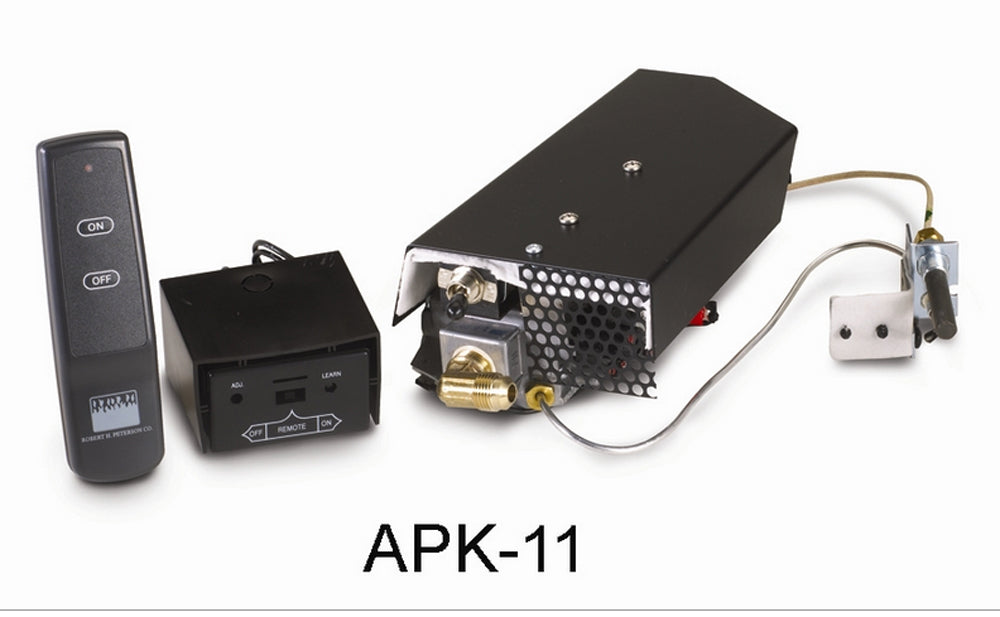

• Includes assembled APK-11 on/off safety valve with burner

Product Highlights

The G45 burner system offers dancing flames and glowing embers for a realistic fire. It includes an assembled APK-11 on/off safety valve and a basic RR-1 On/Off remote control.

Product Information

Standard Information

• Brand: RH PETERSON
• Manufacturer Part Number: G45-30-11P

Technical Specifications

• BTU: 75K
• Type: Burner
• Fireplace Style: Single Sided
• Location of Use: Indoor
• Type of Venting: Vented
• Media Style: Traditional Log Set
• Type of Grate: Standard
• Fuel Type: Liquid Propane (LP)
• Allowable Log Set Sizes (in.): 30"
• Certified Usage: Mobile Home Approved
• BTUs (Max.): 75000
• Ignition Type: Millivolt (Remote Ready)
• Remote: Included
• Gas Connection Size (in.): 1/2"
• Inlet Gas Pressure (Min.): 11.0" w.c.
• Inlet Gas Pressure (Max.): 13.0" w.c.
• Req. Min. Front Width (in.): 40"
• Req. Min. Rear Width (in.): 34"
• Req. Min. Depth (in.): 16"
• Req. Min. Height (in.): 17"
• Chimney Height (Min. ft.): 15'
